E2 SERVICE MANUAL REV D 09/12
38
DANGER:
BEFORE REMOVING THE OVEN CASING,
ISOLATE THE OVEN FROM THE MAINS
ELECTRICITY POWER SUPPLY; SWITCH
OFF, DISCONNECT OVEN PLUG FROM
WALL SOCKET, TURN OFF ISOLATOR
SWITCH TO DISCONNECT FIXED WIRED
OVENS AND LOCK-OFF.
CAUTION MICROWAVE EMISSIONS:
DO NOT BECOME EXPOSED TO
EMISSIONS FROM THE MICROWAVE
GENERATOR OR PARTS CONDUCTING
MICROWAVE ENERGY.
WARNING:
ALLOW OVEN TO COOL AND OBSERVE
AND FOLLOW ALL SAFETY
PRECAUTIONS INCLUDING THOSE
DESCRIBED UNDER THE SAFETY
REGULATIONS SECTION OF THIS
MANUAL BEFORE ATTEMPTING A
SERVICE OR REPAIR.

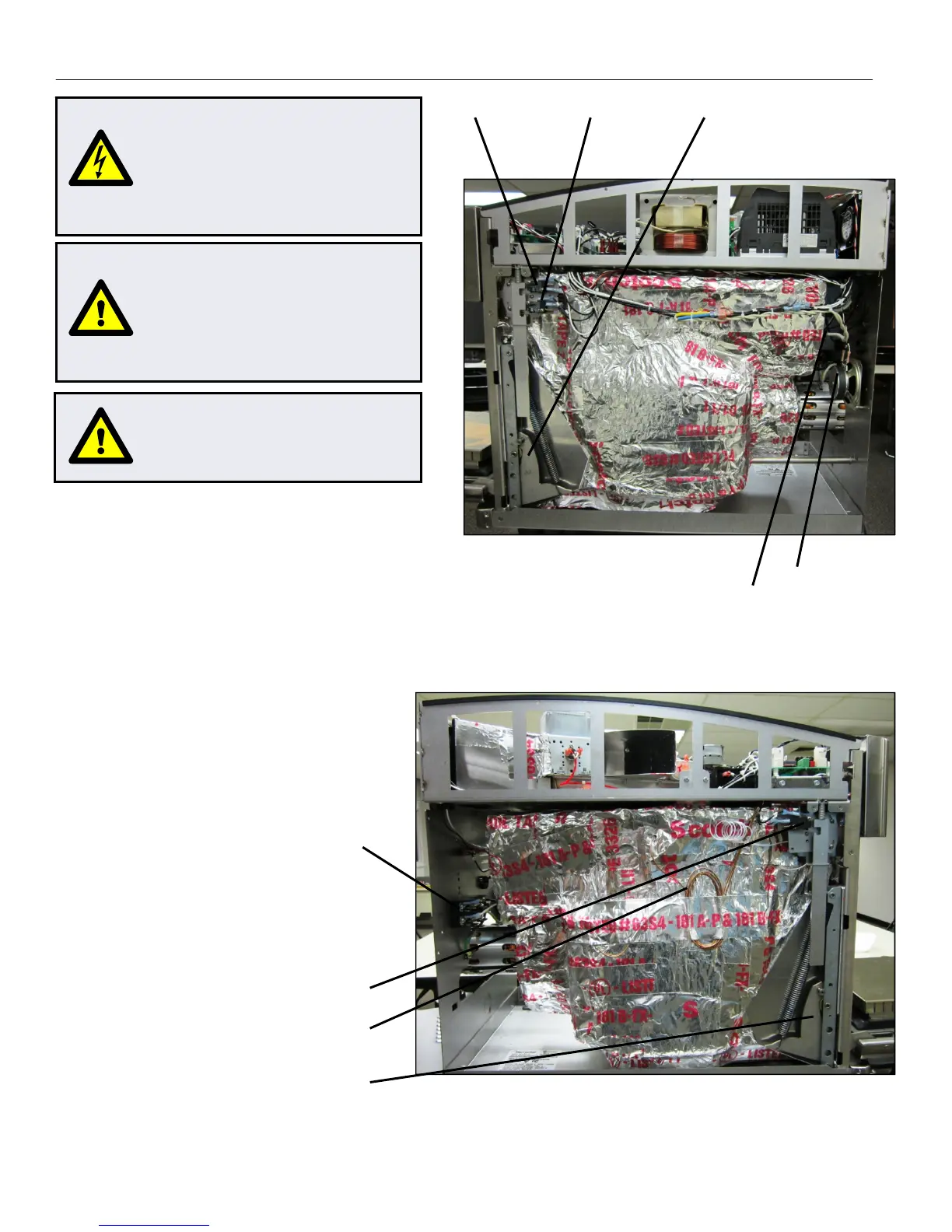

OVEN COMPONENTS
Right Side Components
1 Monitor Door Switch
2 Secondary Door Switch
3 RH Door Hinge Assembly
Left Side Components
4 Primary Door Switch
5 Oven Cavity Thermocouple
6 LH Door Hinge Assembly
Back Side (Inside) Components
7 Speaker
8 Fuses
9 Heating Element (connectors shown)
1 2 3
7
9
4
5
6
8
To Next Page
