Merrychef eikon e2 - SRB Leds

E2 SERVICE MANUAL REV D 09/12
54
10
11
12
4
2
3
5
6
8
9
7
1

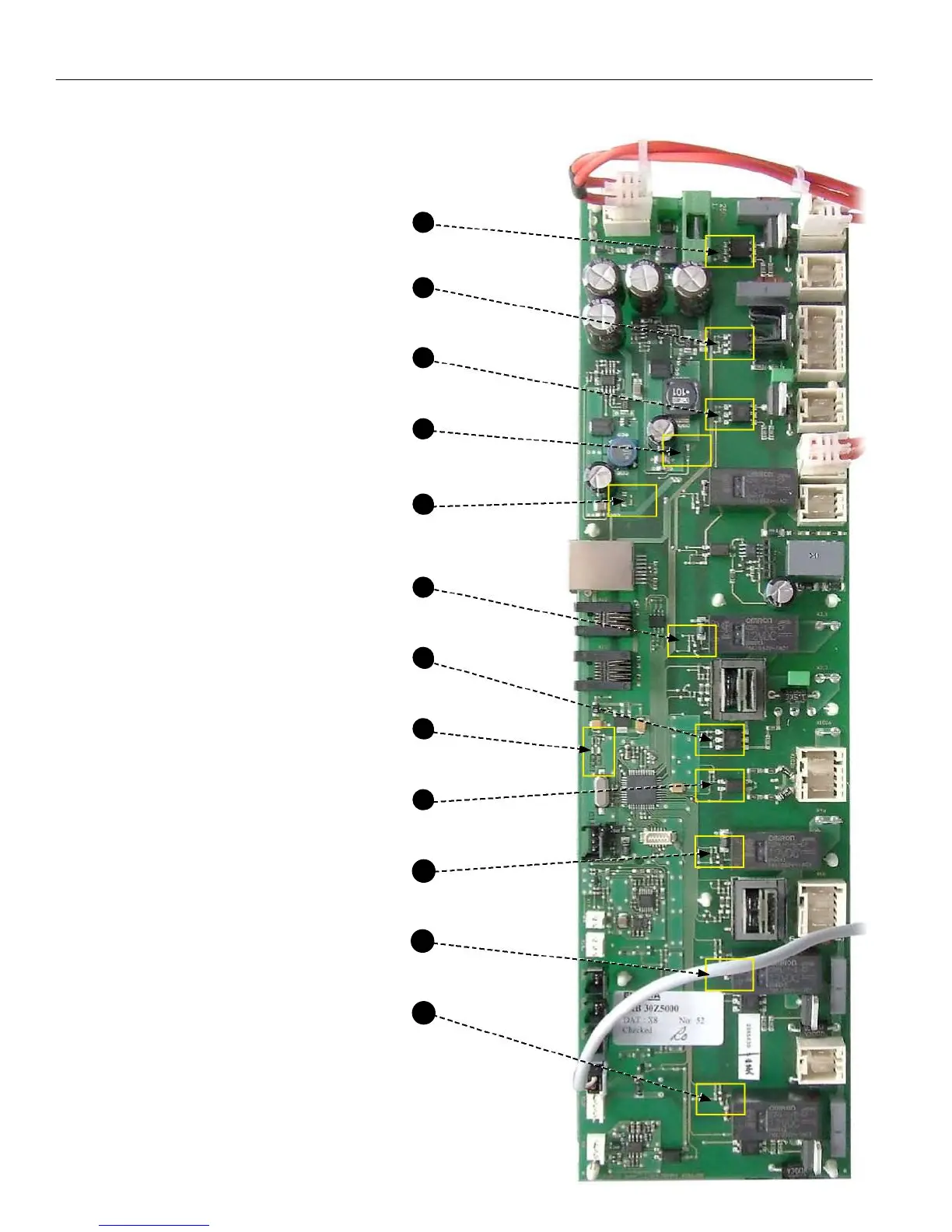

SRB LED’s
• P-Bus - Irregular flashing, indicating data
communication with QTS.
• Run - Pulsing 1 second flash, indicating
that the board has booted up.

• 12v & 5v - Lit to show voltage outputs
from inboard transformer.
• Relay & Triac - Lit to show that a signal
has been sent to energize that
component.
1 Cooling fan.
2 Convection fan.
3 Stirrer.
4 5v supply.
5 12v supply.
6 Heater safety.
7 Heater drive.
8 P-BUS: flashes when data is being
sent / received. RUN: 1 second
flash.
9 Oven Door.
10 Microwave safety relay.
11 Microwave 2 drive.
12 Microwave 1 drive.
