Merrychef HD - Rear Cover Assembly

Page 13 Microcook HD Ovens 32Z3385 Issue 5
No Description HD1025 HD1425 HD1725 HD1925 HD2025 TA
1 Rear Cover 40M0883 11M0269 11M0269 11M0269 11M0270 11M0269
2 Push Fit Feet —– 31Z1187 31Z1187 31Z1187 31Z1187 31Z1187
3 Air filter —– 31Z1104 31Z1104 31Z1104 31Z1104 31Z1104
4a Screw M5x16 31Z3022 31Z3022 31Z3022 31Z3022 31Z3022 31Z3022
4b M5 Star Washer 31Z5012 31Z5012 31Z5012 31Z5012 31Z5012 31Z5012
5 Installation Label 31Z2071 31Z2071 31Z2071 31Z2071 31Z2071 31Z2071
6 Self Adhesive Foam Tape —– 31Z0158 31Z0158 31Z0158 31Z0158 31Z0158
7 Service History Label 31Z2056 31Z2056 31Z2056 31Z2056 31Z2056 31Z2056

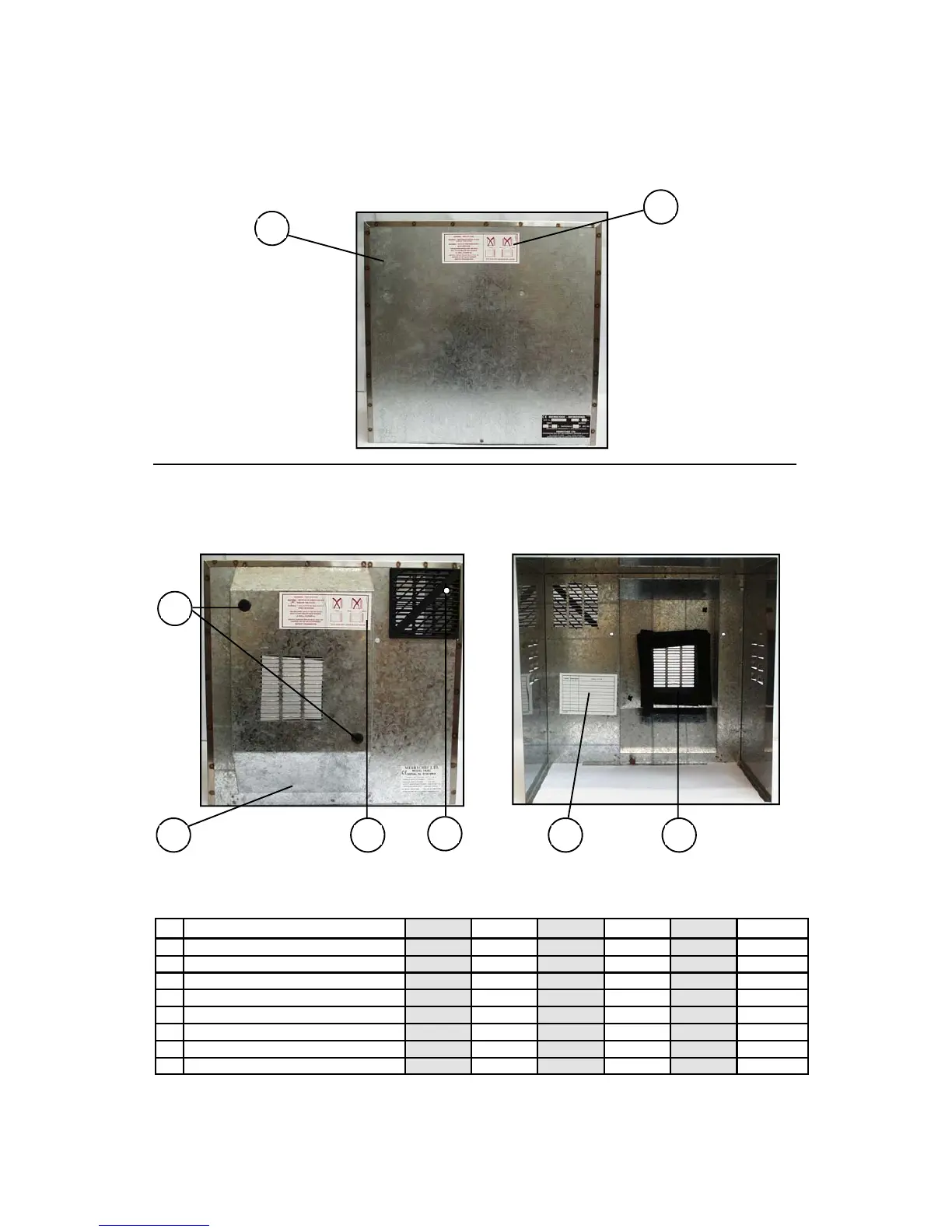

Rear cover assembly
HD1025 only Rear View
All other models
Outer View
Inner View
1
5
1
2
5
3
7 6
