Merrychef HD - Appendix 1 KFC Components

Page 36 Microcook HD Ovens 32Z3385 Issue 5
38
39
40
No Description KFC
8 Door Assembly 11M0393
Door Pocket (For Menu Card) 40M1060
38 Switch Panel Assy 11M0394
39 Logic Board 11M0416
49 Relay Board ( 2 Buzzers ) 11M0285
103 Menukey Assembly 10C0148
104 Top Panel Extrusion 40M1062
105 MenuKey connection lead 11H0064
106 Diode PCB 11M0364
49

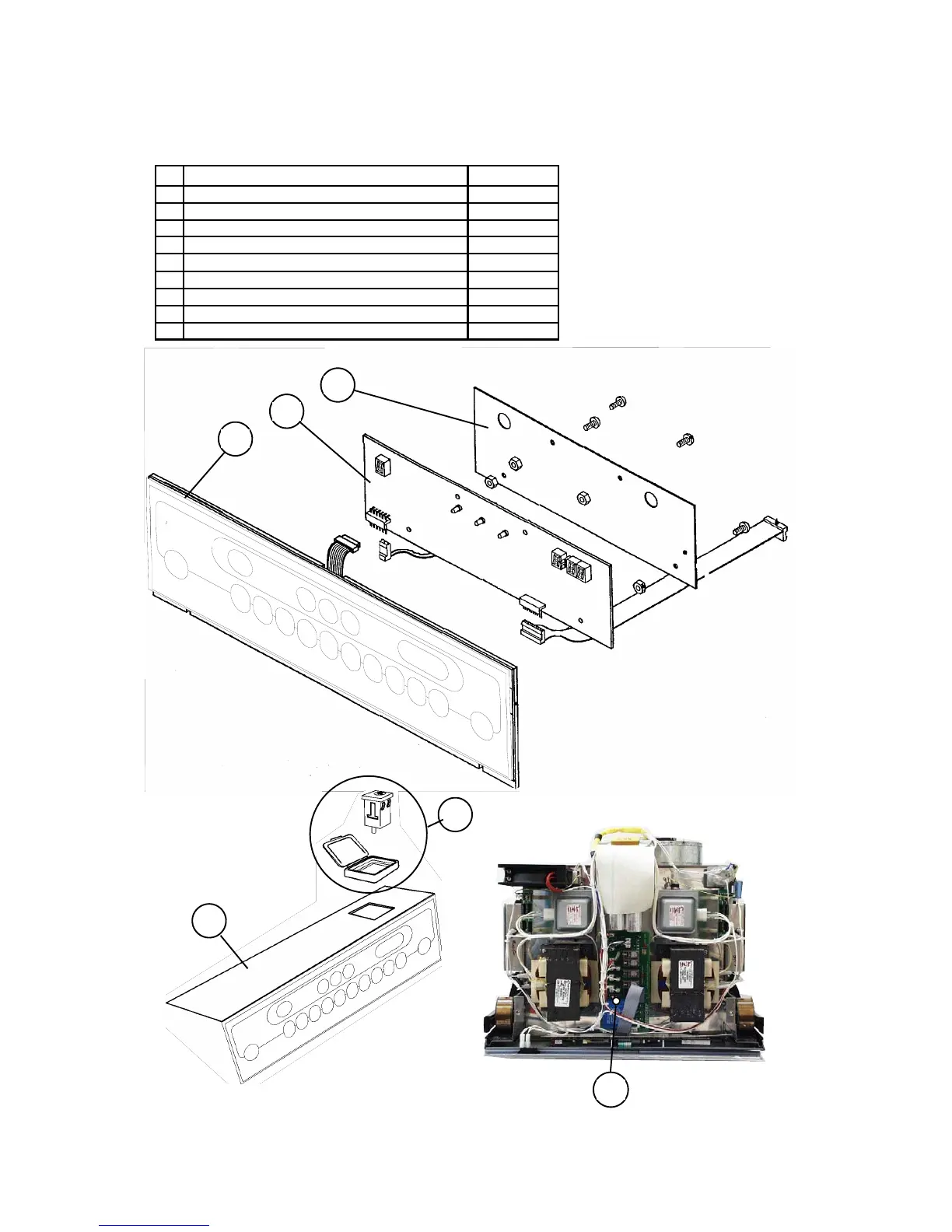

APPENDIX 1: KFC models
103
104
As Microcook HD1925 except the following parts:
Top View
See Appendix 6 for Logic Board
connections and jumper details
