94 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Installing the Access Points

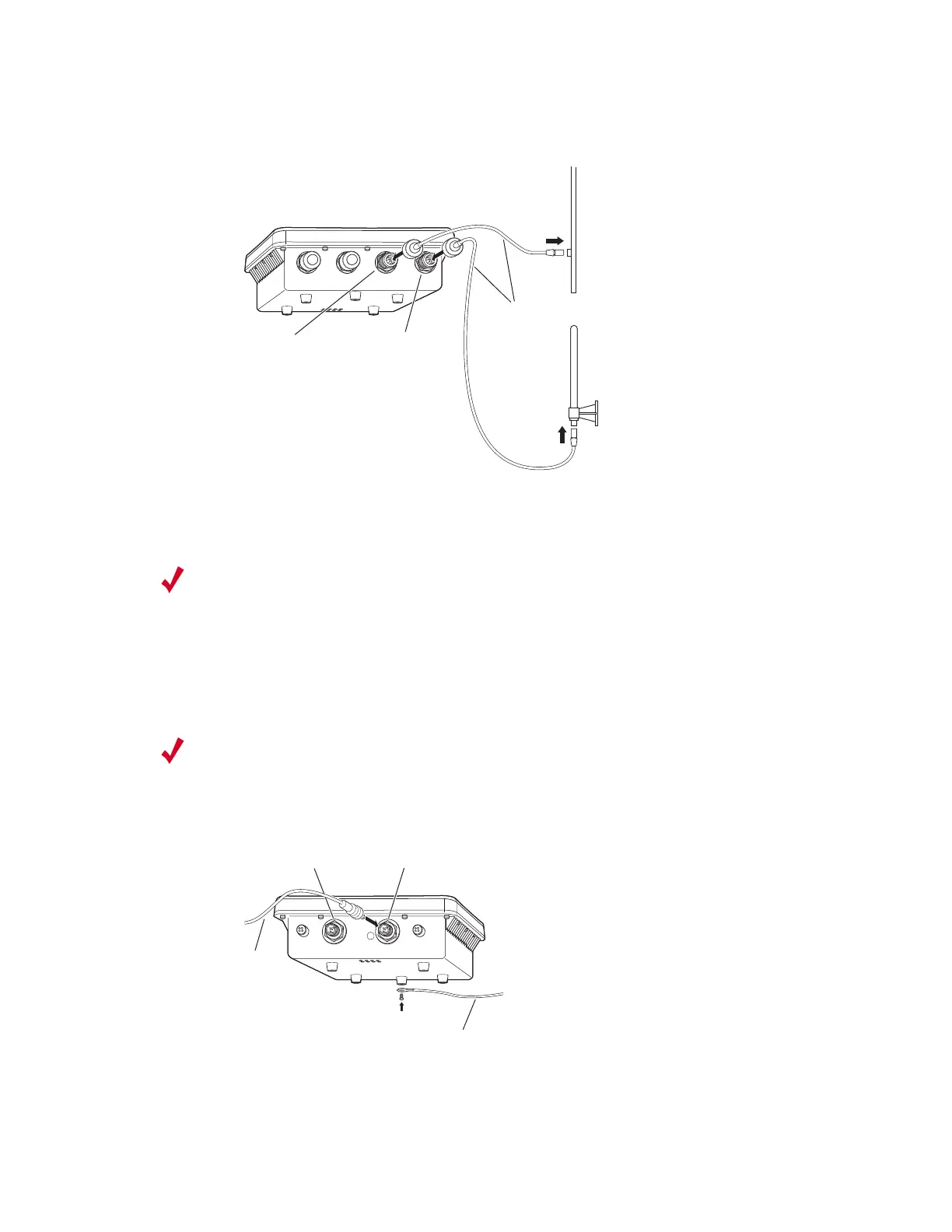

Figure 40: Connect OAP180 Antenna Cables
4. Apply weatherproofing tape to the antenna connectors to help prevent water
entering the connectors.
Follow these steps to attach the Ethernet cable and ground wire:
1. Using the included cable, attach the Ethernet cable to the Ethernet port on the
OAP180.
Figure 41: Attach Ethernet Cable to OAP180
2.4G-2
2.4G-15G-2
5G-1
RF Coaxial
Cable
00204
5 GHz External
High-gain Panel
Antenna
2.4 GHz External
Omnidirectional
Antenna
5 GHz N-type
Connector (5G-1)
2.4 GHz N-type
Connector (2.4G-1)
Note: When not using antenna connectors on the OAP180, keep the covers securely
attached for weather protection.
Note: Use only the provided Ethernet cable. Do not shorten this cable as the path
loss is needed. During periods of lightning activity, do not connect or disconnect
cables or otherwise work with the OAP180.
Console PoE
Console Port PoE (Ethernet) Port
00205
Ethernet
Cable
Ground Wire
