Installing the Access Points
© 2010 Meru Networks, Inc. Installing AP150 79

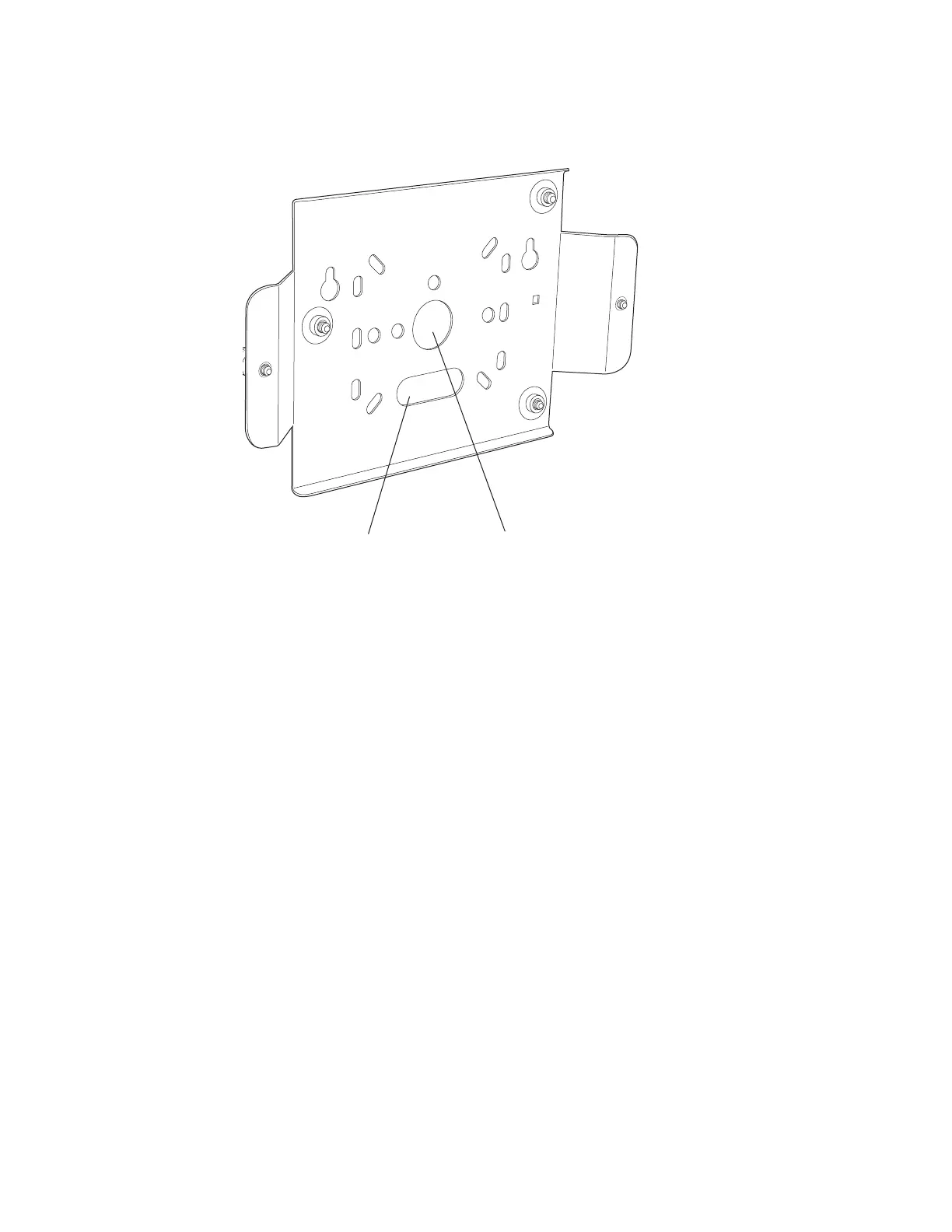

Figure 30: AP150 Bracket
3. Drill holes at the locations you marked:
— 3/16-inch holes if you are using plastic anchors
— 1/8-inch holes if you are using only the screws
4. If you are using plastic anchors, install them in the holes.
5. Screw in the screws most of the way, so that the screw head is about 1/16 of an
inch from the wall.
6. Mount the bracket on the screws, placing the circular portion of the keyhole
mounts over the screw heads and sliding the bracket down.
7. Tighten the screws to secure the bracket.
8. Align the AP150 with the bracket thumbscrews (see Figure 31) and tighten the
thumbscrews to attach the bracket.
00167
Suspended ceiling
cable access
Wall cable access
To Next Page
