Mesa/Boogie MARK VII

PAGE 55

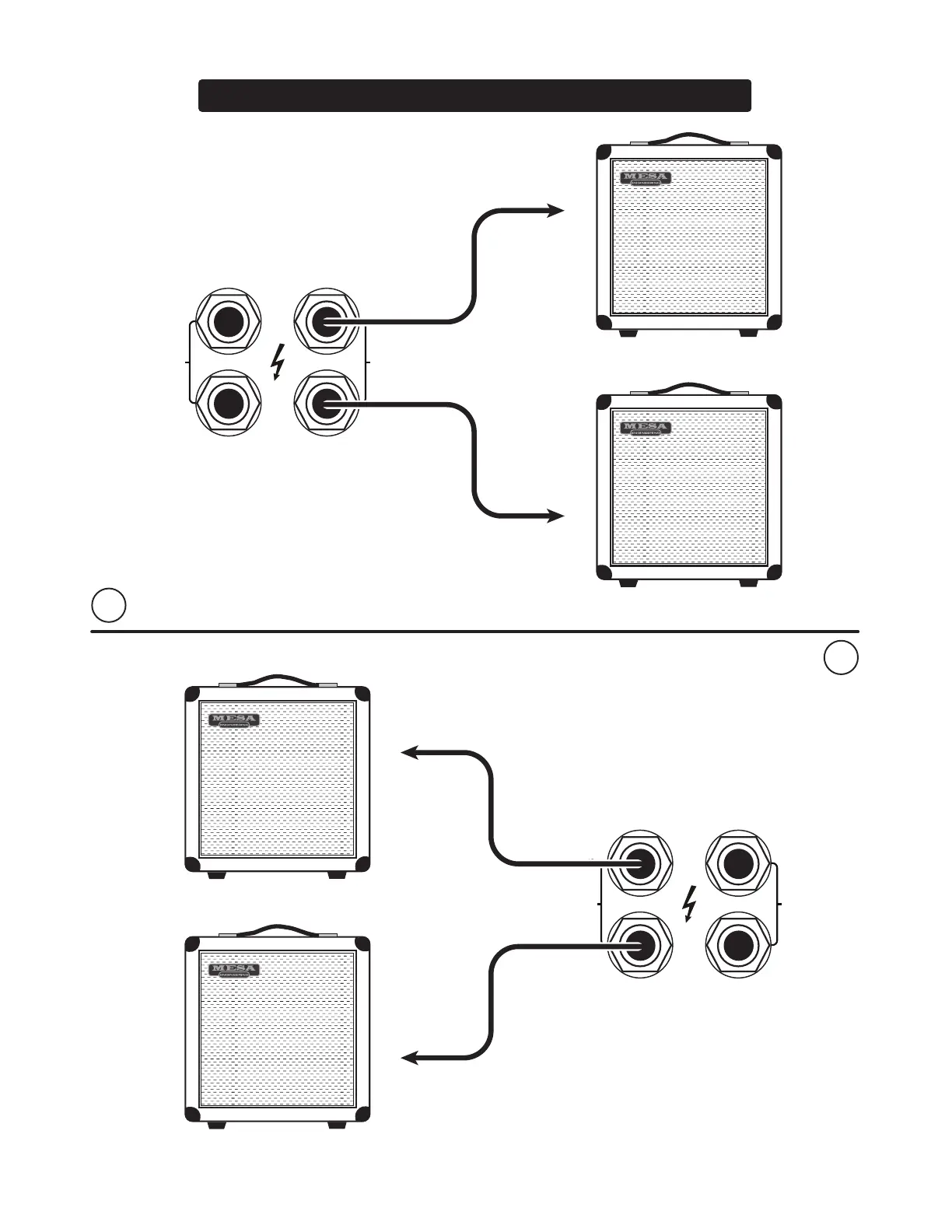

WIRING SCHEMES...Amplifier to Speaker Cabinets
8 Ohm Cabinet
8 Ohm Cabinet
5
6
SPEAKERS
8 OHM 4 OHM
8 OHM 4 OHM
USE WITH TWO 16Ω CABS
USE WITH TWO 8Ω CABS
INTERNAL LOAD ACTIVE WHEN SPEAKER DISCONNECTED
16 Ohm Cabinet
16 Ohm Cabinet
SPEAKERS
8 OHM 4 OHM
8 OHM 4 OHM
USE WITH TWO 16Ω CABS
USE WITH TWO 8Ω CABS
INTERNAL LOAD ACTIVE WHEN SPEAKER DISCONNECTED
