DETAILED INSTRUCTIONS
NOTE
If the MESI TUBELESS CUFF UNIT has low battery or connectivity issues, a
warning will be displayed on the instructions screen. In case of errors please
consult Chapters 8 ERRORS and 9 TROUBLESHOOTING.

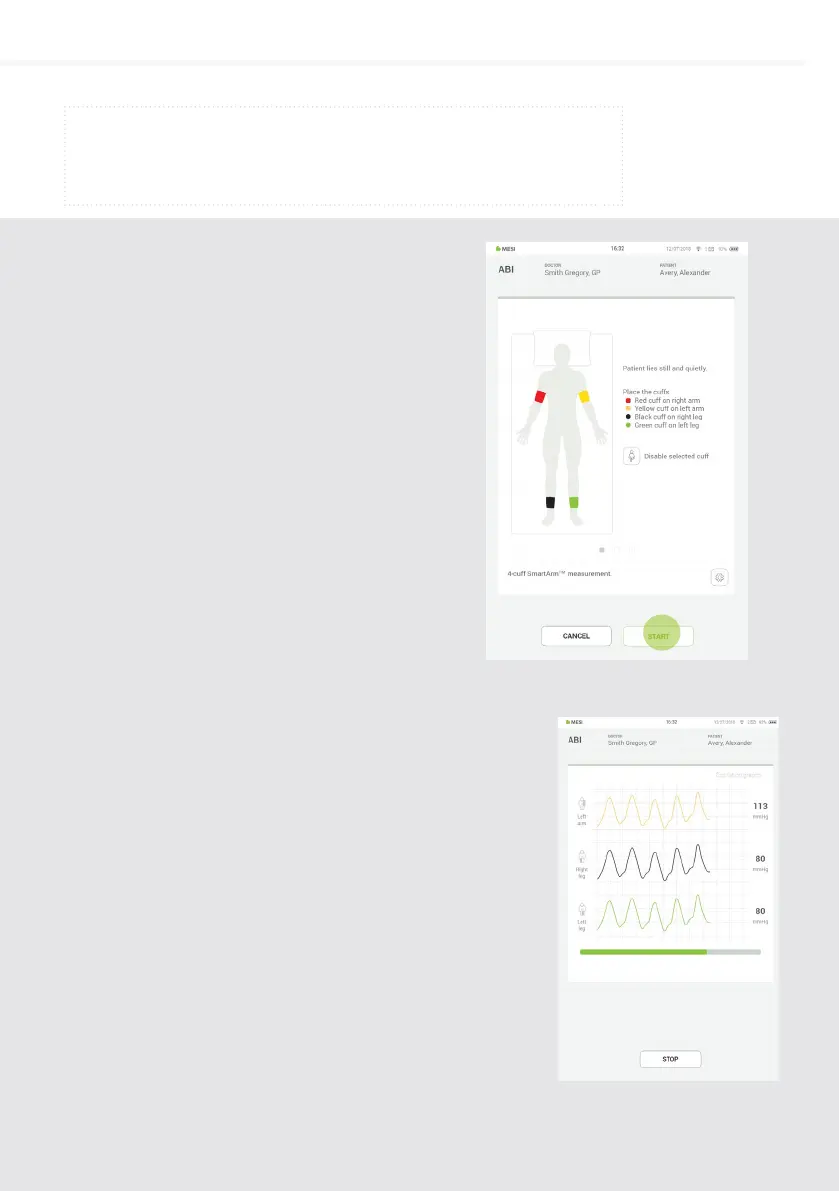

During the measurement the pressure waveforms show
oscillation of pressure for each limb while the pressure
next to the oscillation displays the current pressure in the
corresponding cu.
Progress bar:
The progress bar shows the timeline of the ABI
measurement. When the bar comes to an end the
measurement of all blood pressures concludes and all the
cus deflate. The results screen follows.
Cu pressure (mmHg)
STOP button – for cancelling the measurement
Step 6
Apply the cus to the appropriate locations
(arm/legs) according to Chapter 5.3.1
Cu placement and follow the onscreen
instructions. The patient should be in a
supine position, remain still and remain
quiet. Press the START button to begin the
measurement.
Step 5
