Das Lagersystem
24

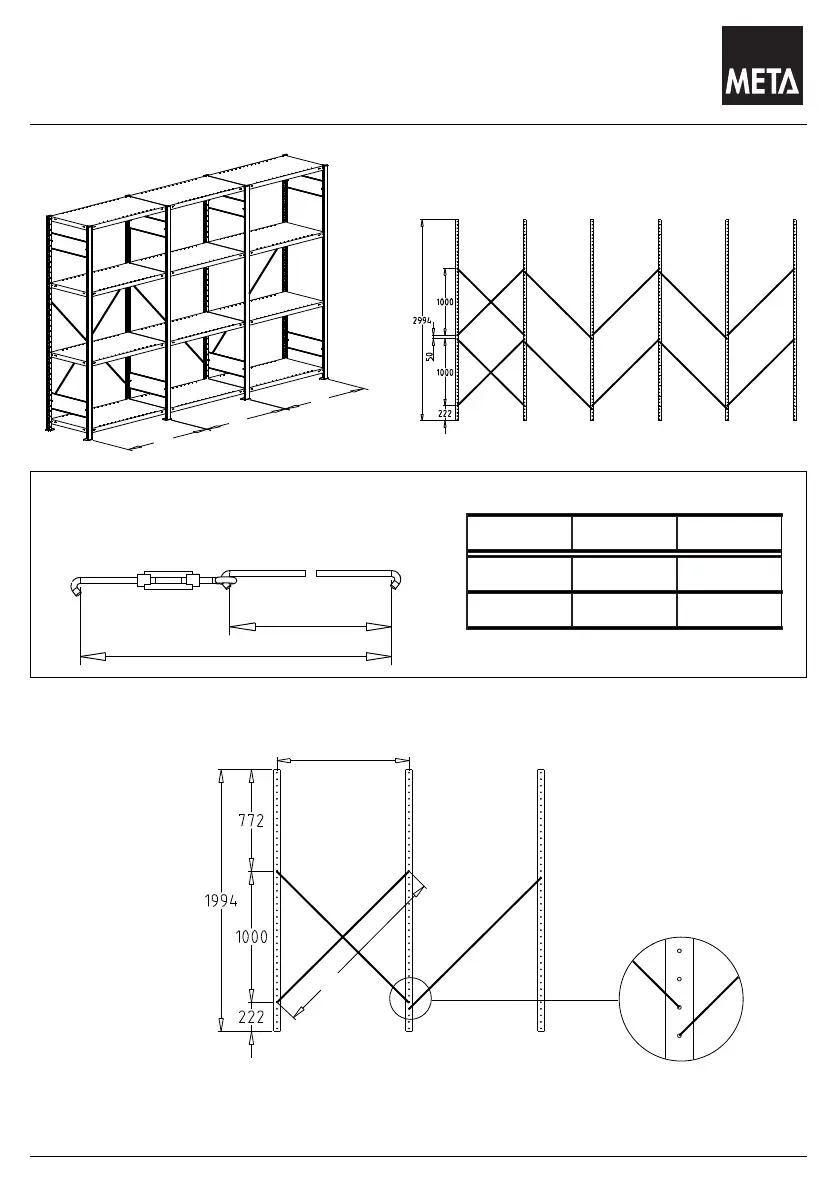

Spannverstrebungen, Einfachregale : L = 1000 / 1300 mm
Stabilising supports, Single rack : L = 1000 / 1300 mm
Entretoises de tension, Rayons simple : L = 1000 / 1300 mm
2000 x 1000 / 1300
X
GR
GR
AR
AR
AR AR
AR
L
GR = Grundregal / Basic rack / Rayonnage de base
AR = Anbauregal / Rack extension / Rayonnage rapporté
X1
L X X 1
1000 1418 1277
1300 1645 1486
X
Spannverstrebung komplett
stabilising frame bracing, complete
entretoise de fixation, complet
L
L
L
