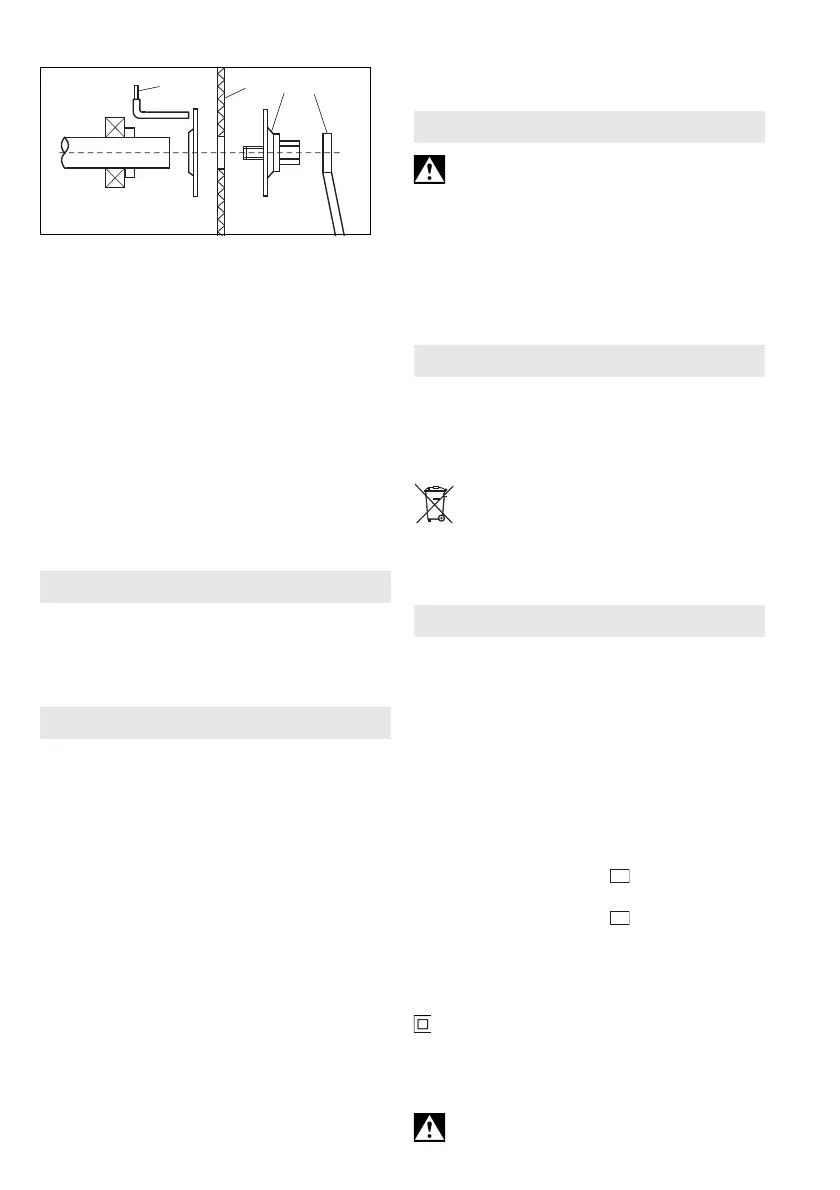

Removing the cutting disc:
- Press lever for spindle locking knob (8) to the right
and turn the cutting disc by hand until the spindle
locking knob is felt to engage.
- Use the wrench (c) to remove the screw with
clamping flange (b) anti-clockwise.
- Remove cutting disc.
Fitting the cutting disc:
- Put on new cutting disc (a).
- Fit the screw with clamping flange (b).
- Use wrench (c) to lock spindle and tighten screw
with clamping flange (b).
- Check whether the spindle locking knob (8) is
completely disengaged again.
- Clean the dirty machine and remove the grinding
dust.
Regular maintenance:
Oil the following parts at least once a month:
movable parts of the vice.
Switching on procedures produce brief reductions
in voltage. Unfavourable power conditions can be
detrimental to other devices. Power impedances
smaller than 0.2 ohm should not cause any
malfunction.
Use only genuine Metabo accessories.
If you need any accessories, check with your
dealer.
For dealers to select the correct accessory, they
need to know the exact model designation of your
power tool.
See page 3.
A Cutting discs: Quality class A 36-R
"Flexiamant Super" inox.
Special cutting disc of medium hardness for
stainless steel.
High cutting performance with long lifetime.
B Cutting discs: Quality class A 30-R / A 36-S
"Flexiamant Super" steel.
Good cutting performance in steel, with good
lifetime.
Hard version for powerful machines.
A 36-S: with an interior fabric for quick cuts.
C Cutting discs: Quality class A 24-M
"Flexiamant Super" steel.
High cutting performance in steel, with good
lifetime.
Soft version for less powerful machines.
For a complete range of accessories, see
www.metabo.com or the main catalogue.
Repairs to electrical tools must be carried out
by qualified electricians ONLY!
A defective mains cable must only be replaced with
a special, original mains cable from metabo, which
is available only from the Metabo service.
If you have Metabo electrical tools that require
repairs, please contact your Metabo service centre.
For addresses see www.metabo.com.
You can download spare parts lists from
www.metabo.com.
The generated grinding dust may contain harmful
substances. Dispose appropriately.
Observe national regulations on environmentally
compatible disposal and on the recycling of disused
machines, packaging and accessories.
Only for EU countries: Never dispose of
power tools in your household waste! In
accordance with European Directive 2012/
19/EU on waste electrical and electronic equipment
and its implementation in national law, used elec-
trical tools must be collected separately and
handed in for environmentally compatible recycling.
Explanatory notes on the specifications on page 4.
Changes due to technological progress reserved.
U=Voltage
I= Current
P
1
=Rated input
P
2
=Power output
n
0
=No load speed
Cutting disc dimensions:
D
max
=Maximum outer diameter
B =Wheel thickness
d =Borehole
H
max 90°
=Max. cut diameter
( = rod,  = pipe, = section steel)
H
max 45°
=Max. cut diameter
( = rod,  = pipe, = section steel)
L
max
=Max. vice opening
m =Weight without mains cable
Measured values determined in conformity with
EN 62841.
Machine in protection class II
~ AC Power
The technical specifications quoted are subject to
tolerances (in compliance with the relevant valid
standards).
Emission values
9. Troubleshooting
10. Accessories
a
bc
8
11. Repairs
12. Environmental Protection
13. Technical Specifications

Metabo CS 23-355 Specifications

General

Input power	2300 W
Cable length	2.7 m
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Noise level	104 dB
Idle speed (max)	4000 RPM
Diamond disc	-
Saw blade included	Yes
Suitable for materials	Metal

Weight and Dimensions

Depth	282 mm
Width	468 mm
Weight	16900 g
Blade diameter	- mm
