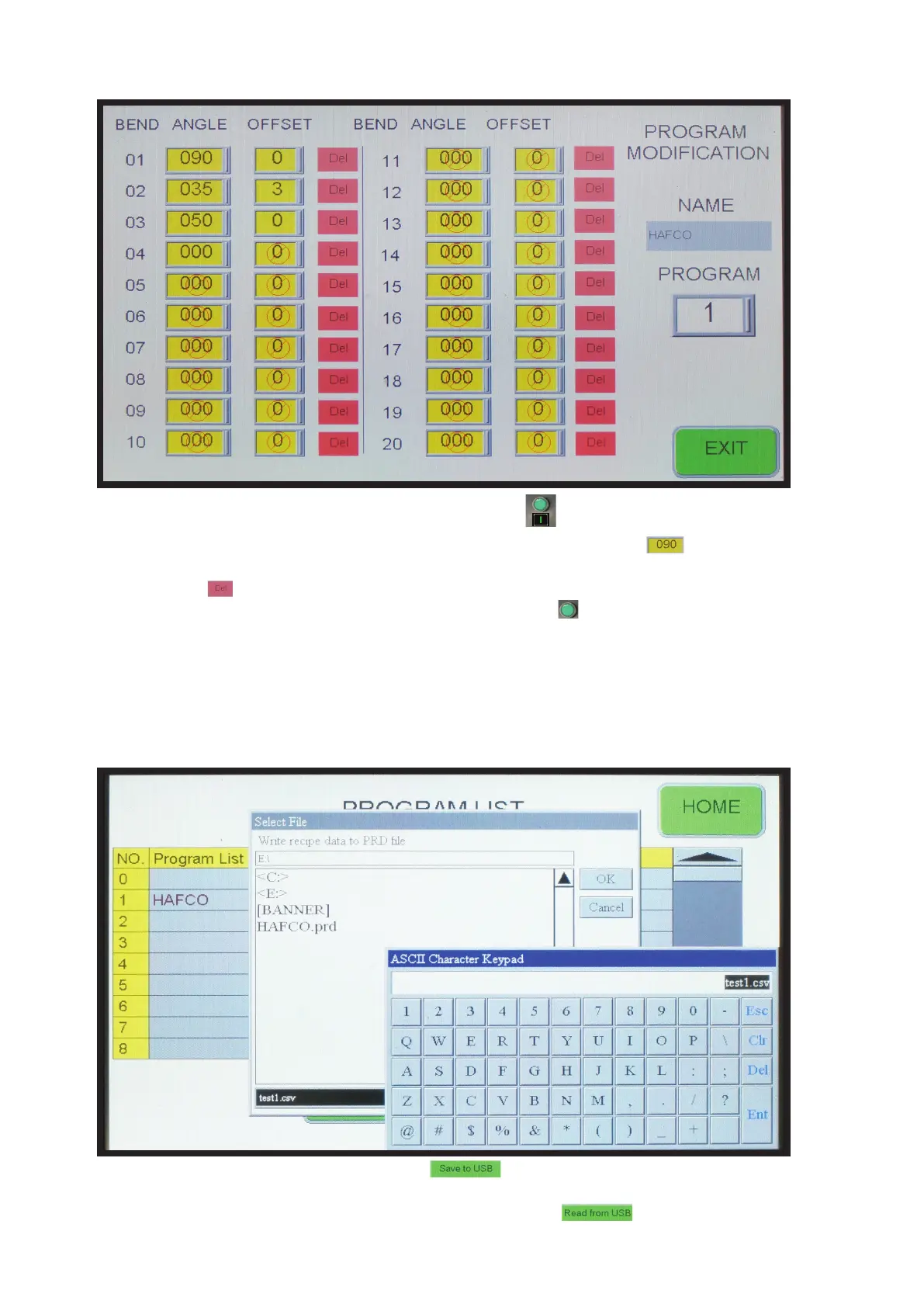

PROGRAM MODIFICATION:
Press the SET icon in PROGRAM LIST to access this screen.
WARNING: The apron will automatically bend up once the start button is pressed.
Operation: Press NAME to enter a name. To make BEND 01 bend to 90º Press ANGLE and
enter 90. OFFSET is for bending thicker material, Entering 5 in OFFSET will make apron bend to 95º.
Pressing delete will skip the bend. Press EXIT to return to HOME page. Once on HOME page press
PROGRAM CONFIRM to load program then press the start button to start bending. The apron will
automatically bend up to the programed angle, dwell for set value, return back down to 0 position, then
the clamp will open automatically to the set open height. Repeat process for next bend.
USB Device: Press the Save to USB icon to access this screen
This screen is for saving or loading programs to or from a USB device.
Operation: To SAVE a program: Press and hold on the PROGRAM LIST screen for 3 seconds
to activate the Save to USB function. Press on the test1.csv to rename your program, press “ent” to save
your program then press OK. To LOAD of program: Press and hold on the PROGRAM LIST
screen for 3 seceonds to activate the Read from USB function. Press on the eg: HAFCO.prd le and
press OK.
