3 Mechanical design Page 9 of 25
COM200 module - Product Manual 1.0 MetCom Solutions GmbH
3 Mechanical design
For Smart Metering or C&I applications the communication module will fit under the terminal
cover of the MCS301 meter.
3.1 Module concept

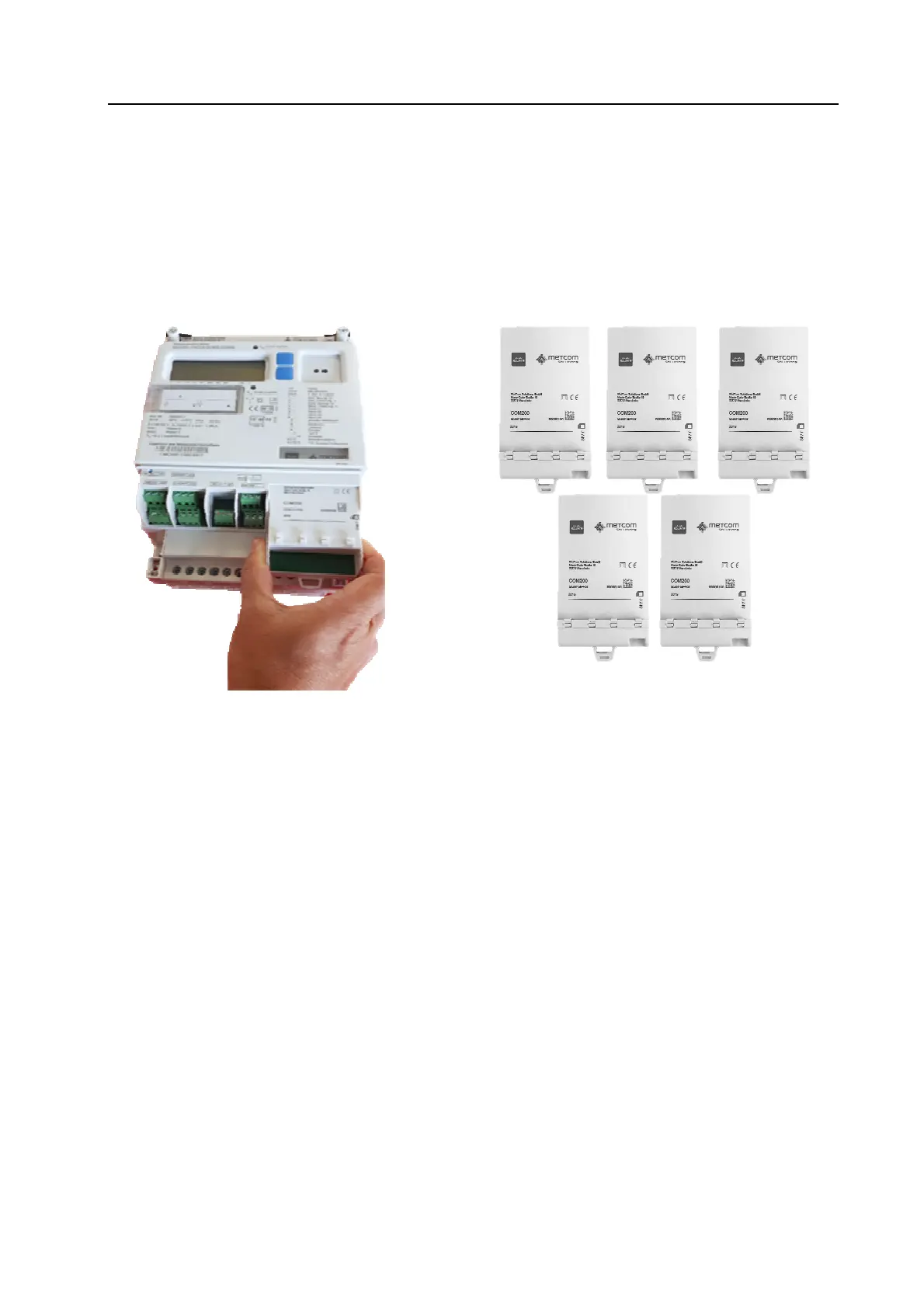

Figure 2: MCS301 with communication modules
The interface between meter and communication module provides the following feature set:
• Exchangeable communication modules
• Plug ´n´ Play Installation: The module is connected and powered from the meter.
No extra cables or actions are needed to complete the physical installation of the
module.
• SPI interface between meter and communication module for local customized
applications.
• Transparent communication, using the DLMS/COSEM protocol of the meter for
Local or Remote FW Meter or Module upgrade
