Door Disassembly

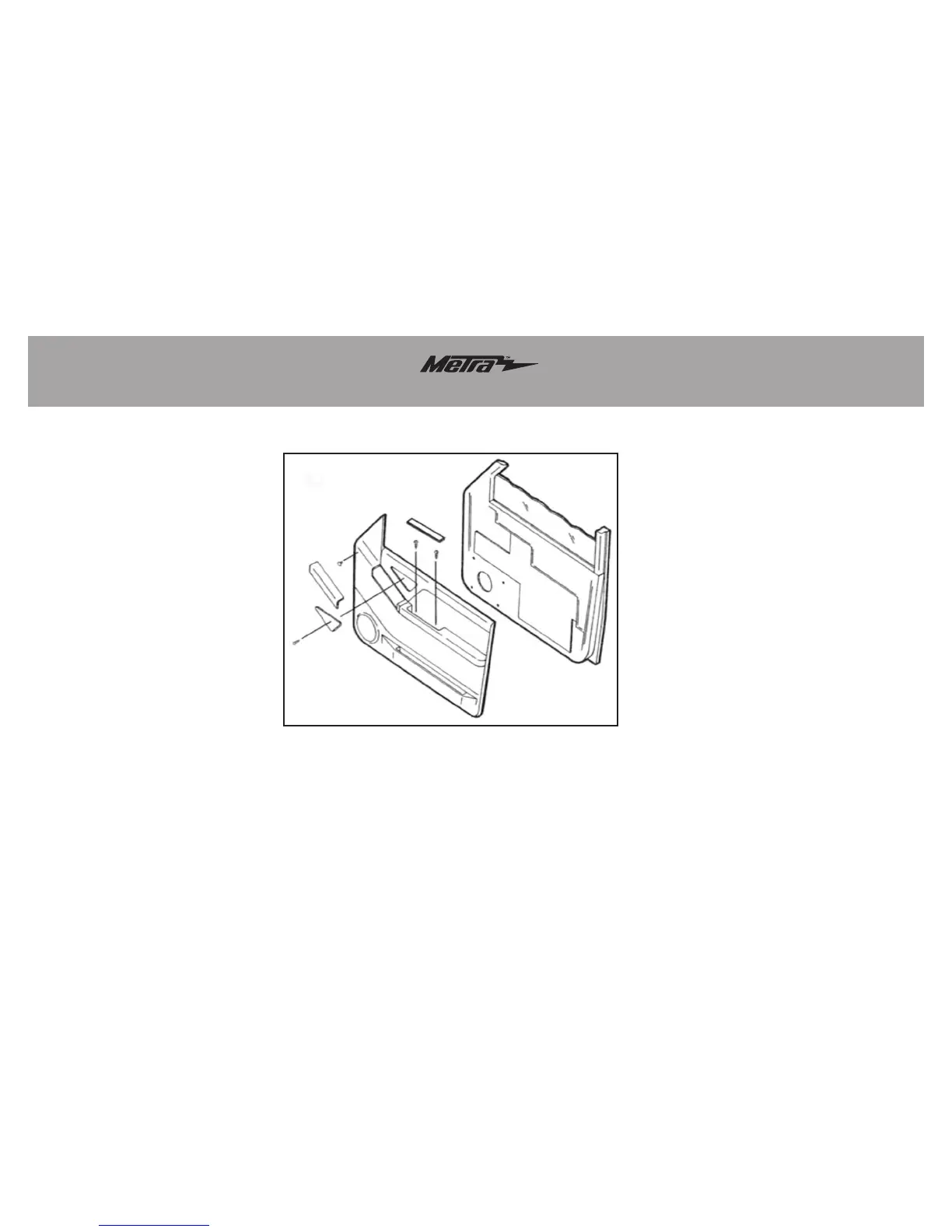

(Figure A)
S-10 Blazer, S-10 Pickup, S-15 Jimmy,
Sonoma 1994-1997:
1. Remove (1) screw and (1) plastic rivet
from the door lock assembly and
remove the door lock trim. Unclip the
plastic insert in the door pull handle and
remove (2) screws exposed. Remove
(1) plastic rivet from the top of the door
panel. Using a window crank removal
tool, release the spring clip securing the
window crank handle and remove.
Note: (For models with power windows,
remove the control trim panel by pulling
the panel up and sliding it forward).
Unclip the perimeter of the door panel
and remove (Figure A)
Blazer, Jimmy, S-10 Pickup, Sonoma 1998:
1. Remove (1) 9/32” screw from the
door pull handle. Remove (1) Phillips
screw from the door latch. Unclip the
perimeter of the door panel and remove.
(PASSENGER SIDE
APPLICATION SHOWN
IN ILLUSTRATION)
