DODGE CALIBER 2009-10
DODGE CHALLENGER 2009-10
JEEP COMPASS 2009
JEEP PATRIOT 2009
A
Disconnect the negative battery terminal
to prevent an accidental short circuit.

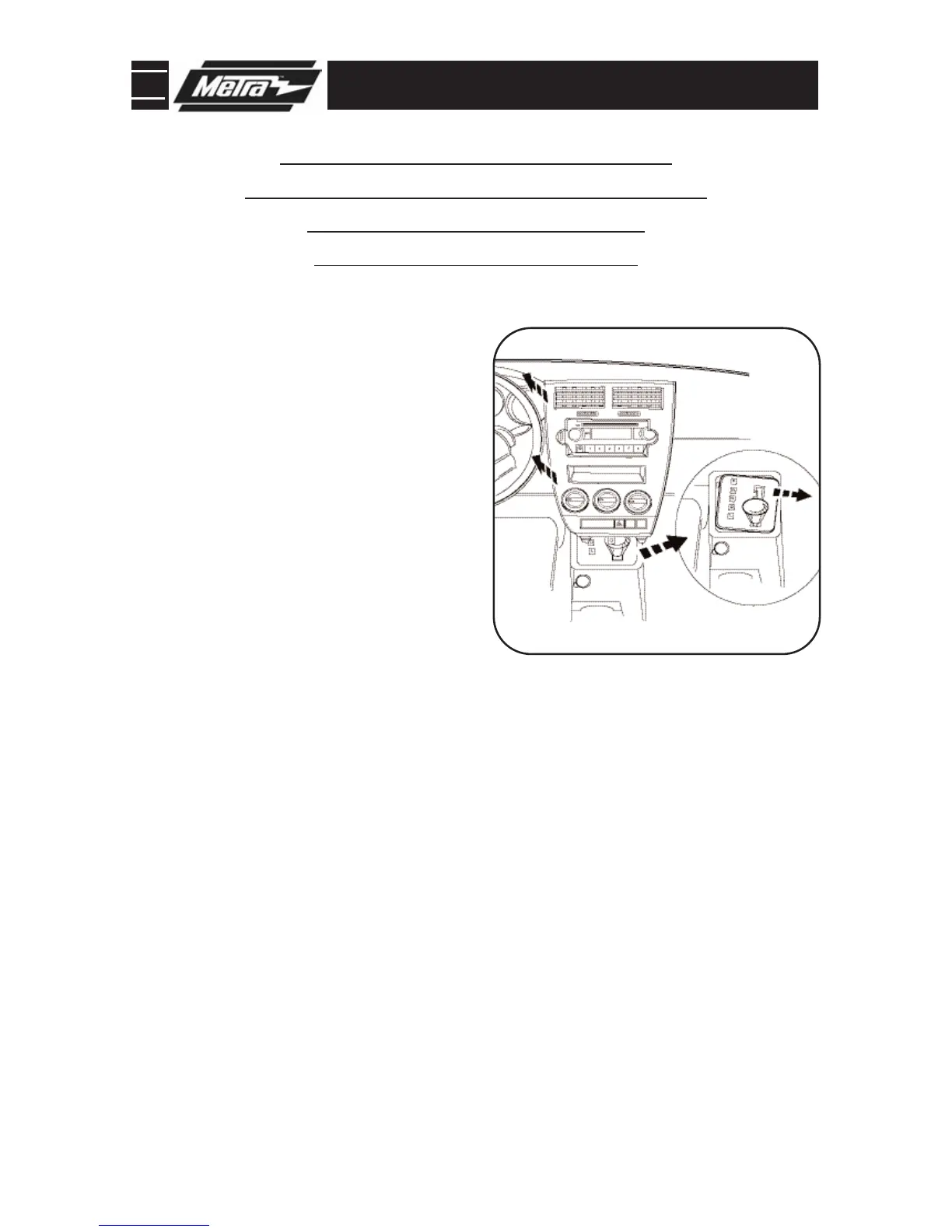

Unsnap and move shifter trim to the side.
(Figure A)
1
2
4
Remove (4) 7MM screws securing radio.
Unplug and remove radio.
Unsnap center dash trim panel (do not
remove until climate controls are
removed). (Figure A)
5
The metal bracket in the sub-dash will
need to be removed for the aftermarket
Double DIN radio’s depth.
6
Remove (4) P
hillips screws holding cli-
mate control panel to backside of the
center dash panel.
3
95-6511 DASH DISASSEMBLY
12
Continue to kit assembly.
To Next Page
