Metra Electronics 95-6542 - Kit Assembly; ISO DDIN Radio Provision

REV. 7/10/2017 INST95-6542
ISO DDIN radio provision
1. Attach the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
2. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra.
Test the radio for proper operation.
3. Secure the completed assembly into the
dash using the factory screws.
4. Reassemble the dash in reverse order
of disassembly.
5. Snap the
radio trim panel onto the
factory dash bezel, over the radio.
KIT ASSEMBLY
3

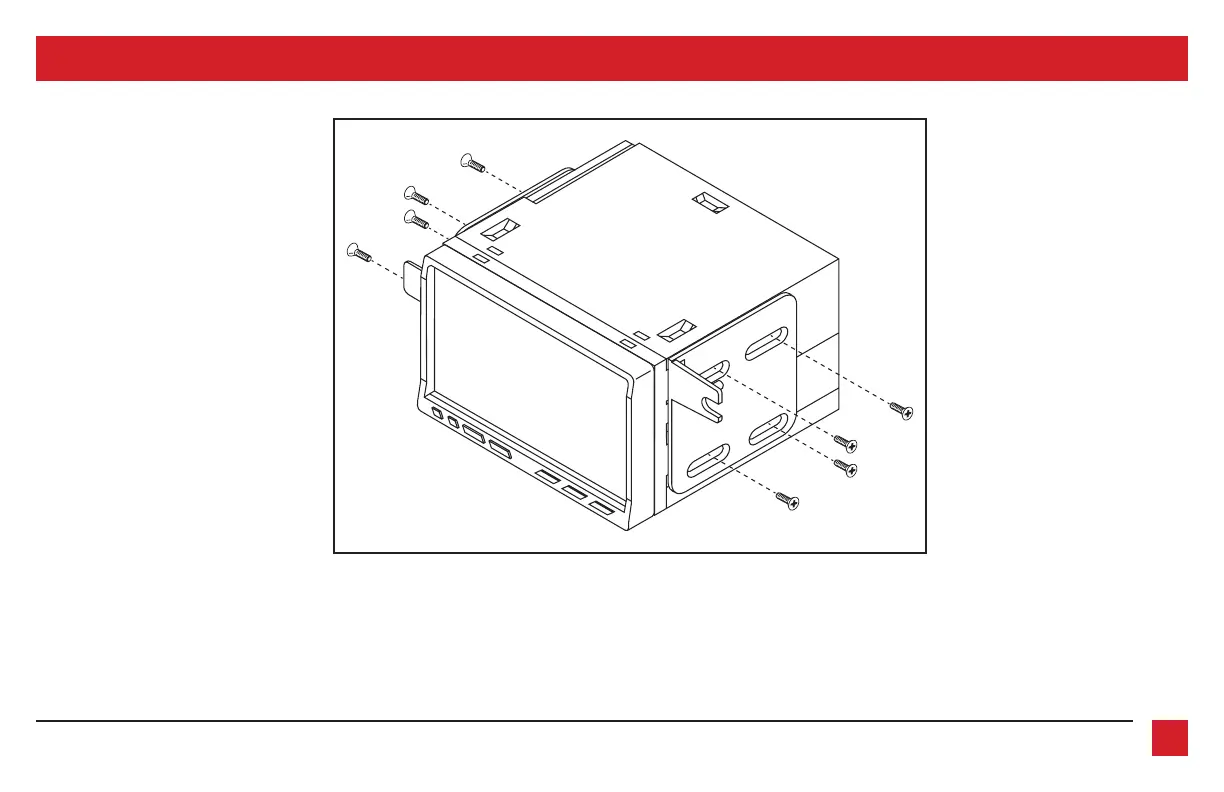

(Figure A)
