REV. 5/21/2018 INST95-7340B
3

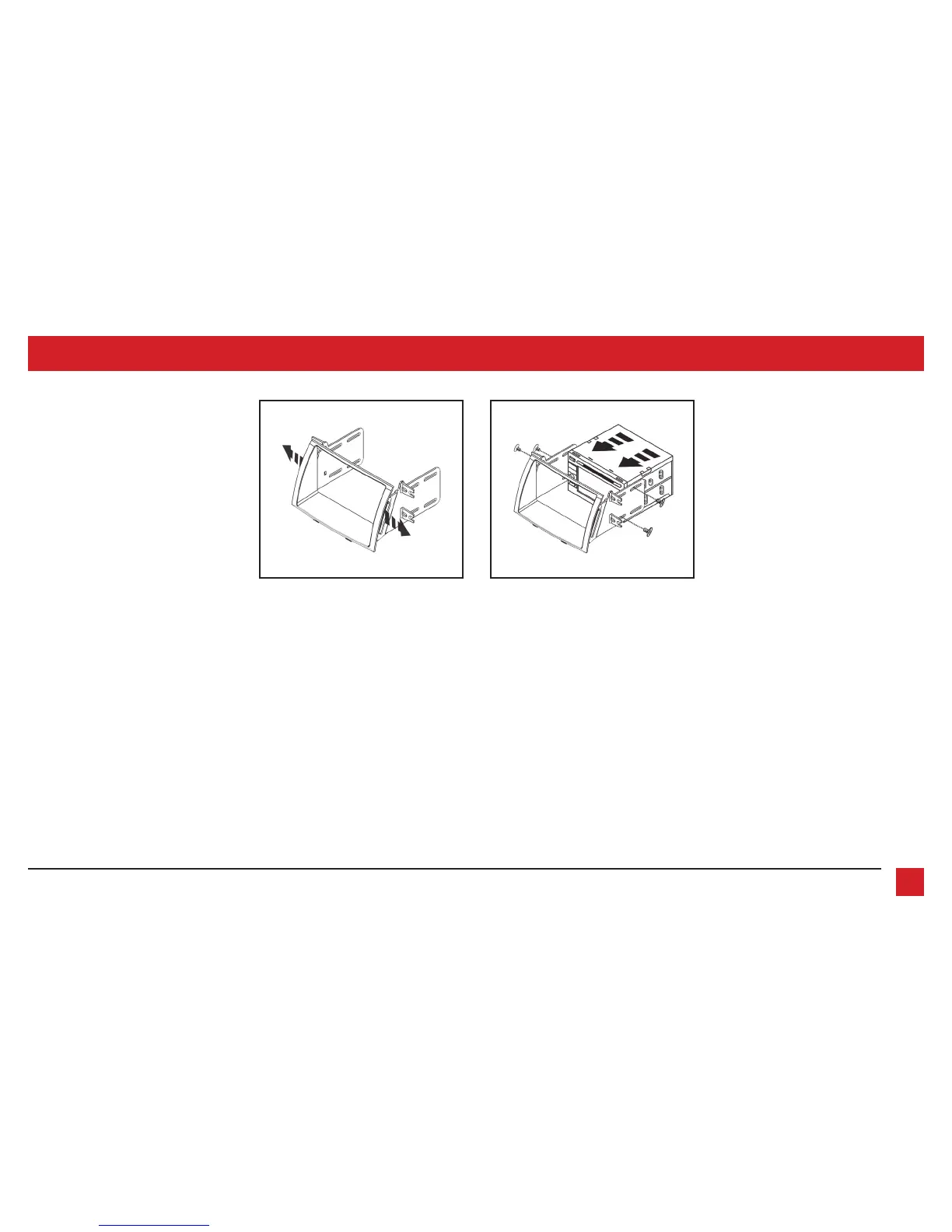

KIT ASSEMBLY
1. Attach the
radio brackets
to the
radio
housing
. (Figure A)
2. Slide the radio into the bracket/radio
housing assembly from the rear, then
secure the radio to the assembly using
the screws supplied with the radio.
(Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash. Metra
recommends using the proper mating
adapters from Metra and/or AXXESS.
4.
Secure the radio assembly to the
dash using the factory screws, then
reassemble the dash in reverse order of
disassembly to complete the installation
(Figure B)(Figure A)
