99-8205
KIT ASSEMBLY
2

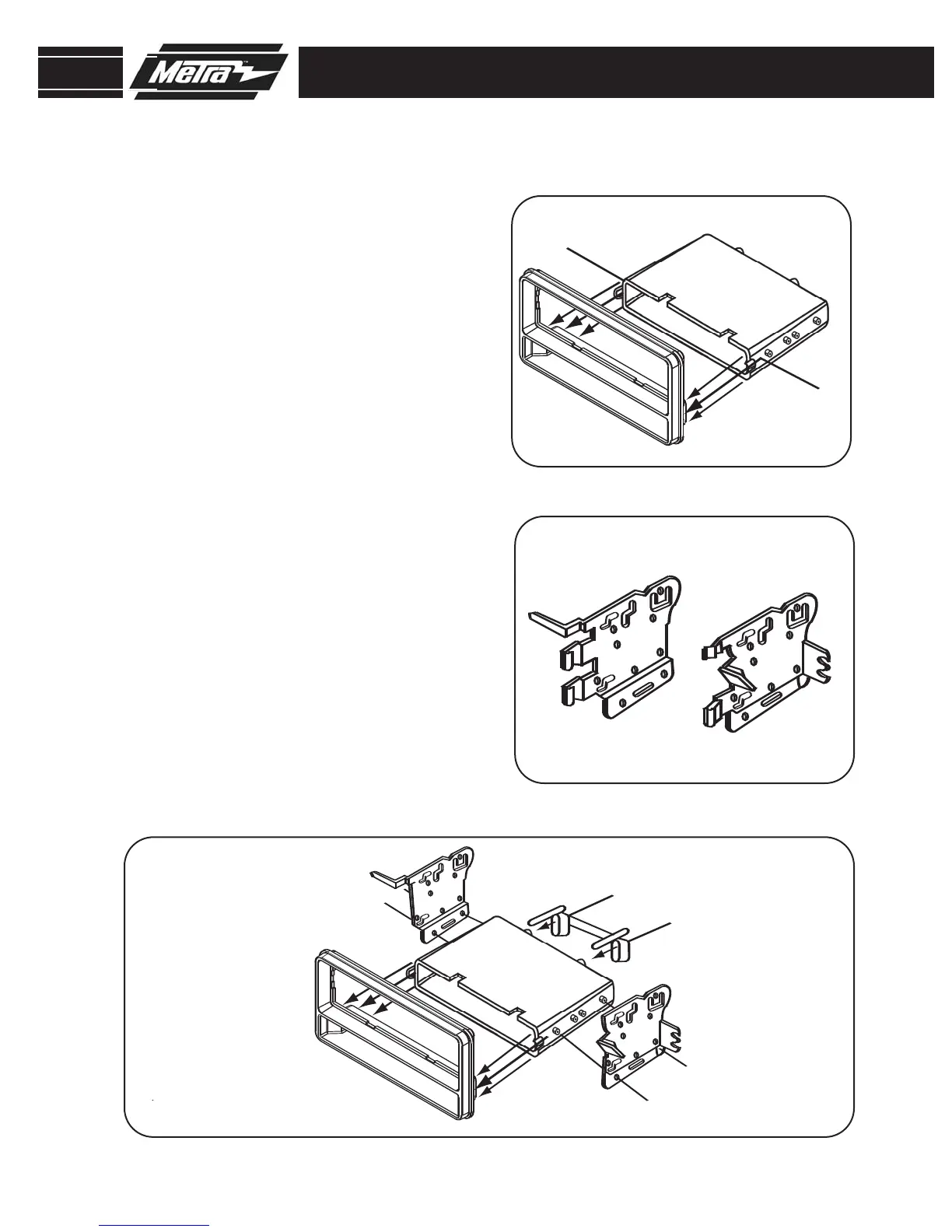

Attach the pocket to the back of the
ISO/DIN Faceplate (by holding the
faceplate upside down and inserting
the right edge of the pocket into
place then pushing the rest of the
pocket onto the lip) and mount with
(2) #8X3/8” Phillips screws.
(Figure A)
2
3
A
Secure the mounting brackets to the
pocket with (4) #6X1/4” Phillips
screws. (
Figure C)
Choose the correct faceplate for your
application. The 2005-2008 Matrix
faceplate is smaller than the other
supplied faceplate.
1
#8x3/8” Screw
#8x3/8” Screw
B
C
#6x1/4” Screws
#6x1/4” Screws
Two
#8x3/8” Screws
DIN HEAD UNIT PROVISION
NOTE: For the 2005-2008 Matrix,
break away the shaded clips along
the scored lines. (
Figure B)
