ISO DIN HEAD UNIT PROVISION
99-8205
KIT ASSEMBLY

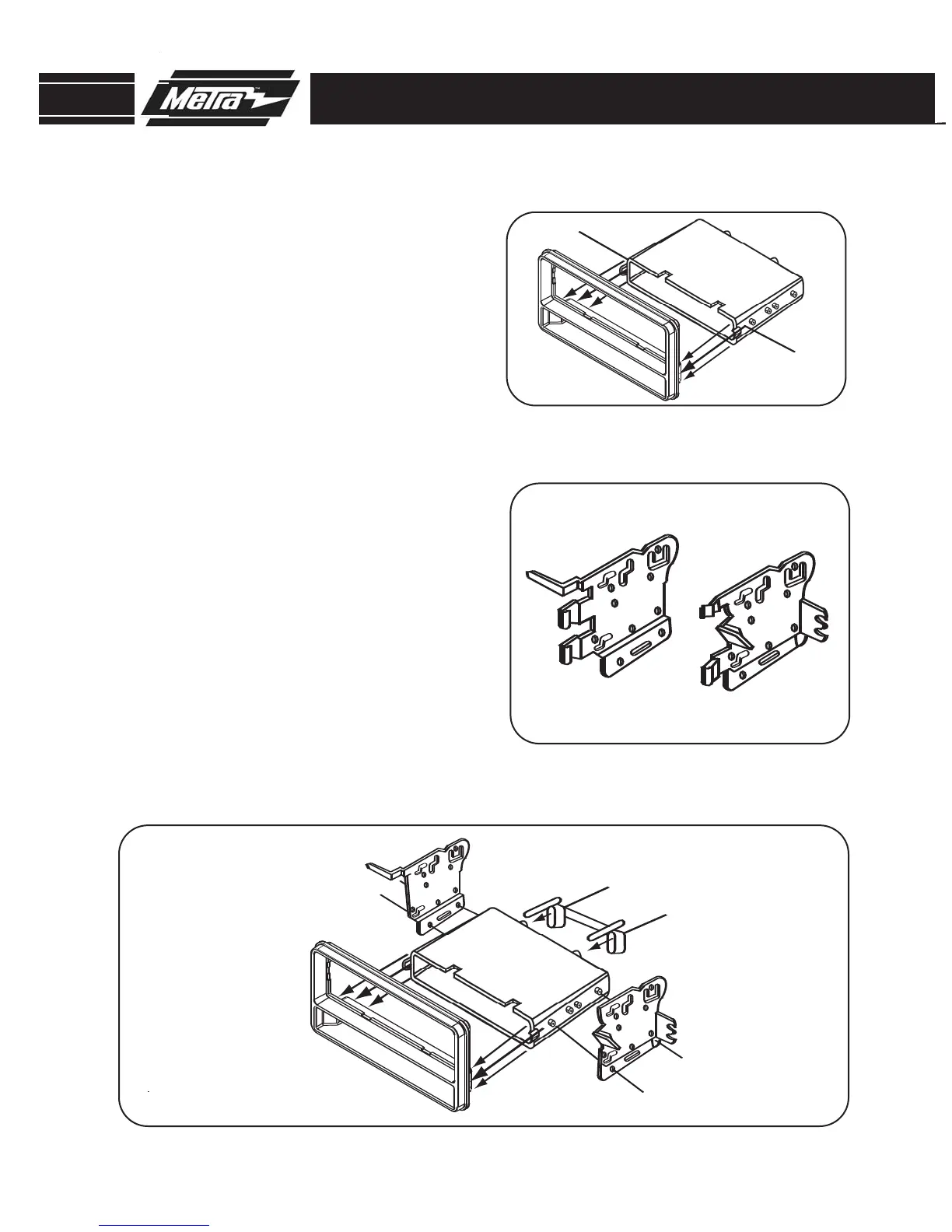

Attach the
the pocket to the back of the
ISO/DIN Faceplate (by holding the face-
plate upside down and inserting the right
edge of the pocket into place then push-
ing the rest of the pocket onto the lip)
and mount with (2) #8X3/8” Phillips
screws.
(Figure A)
2
A
Secure the mounting brackets to the
pocket with (4) #6X1/4” Phillips
screws.
(
Figure C)
3
#
8x3/8” Screw
#
8x3/8” Screw
B
#6x1/4” Screws
#6x1/4” Screws
Two
#8x3/8” Screws
C
NOTE: For the 2005-2008 Matrix,
break away the shaded clips along
the scored lines.
(
Figure B)
Choose the correct faceplate for your
application. The 2005-2008 Matrix
faceplate is smaller than the other
supplied faceplate.
1
