6

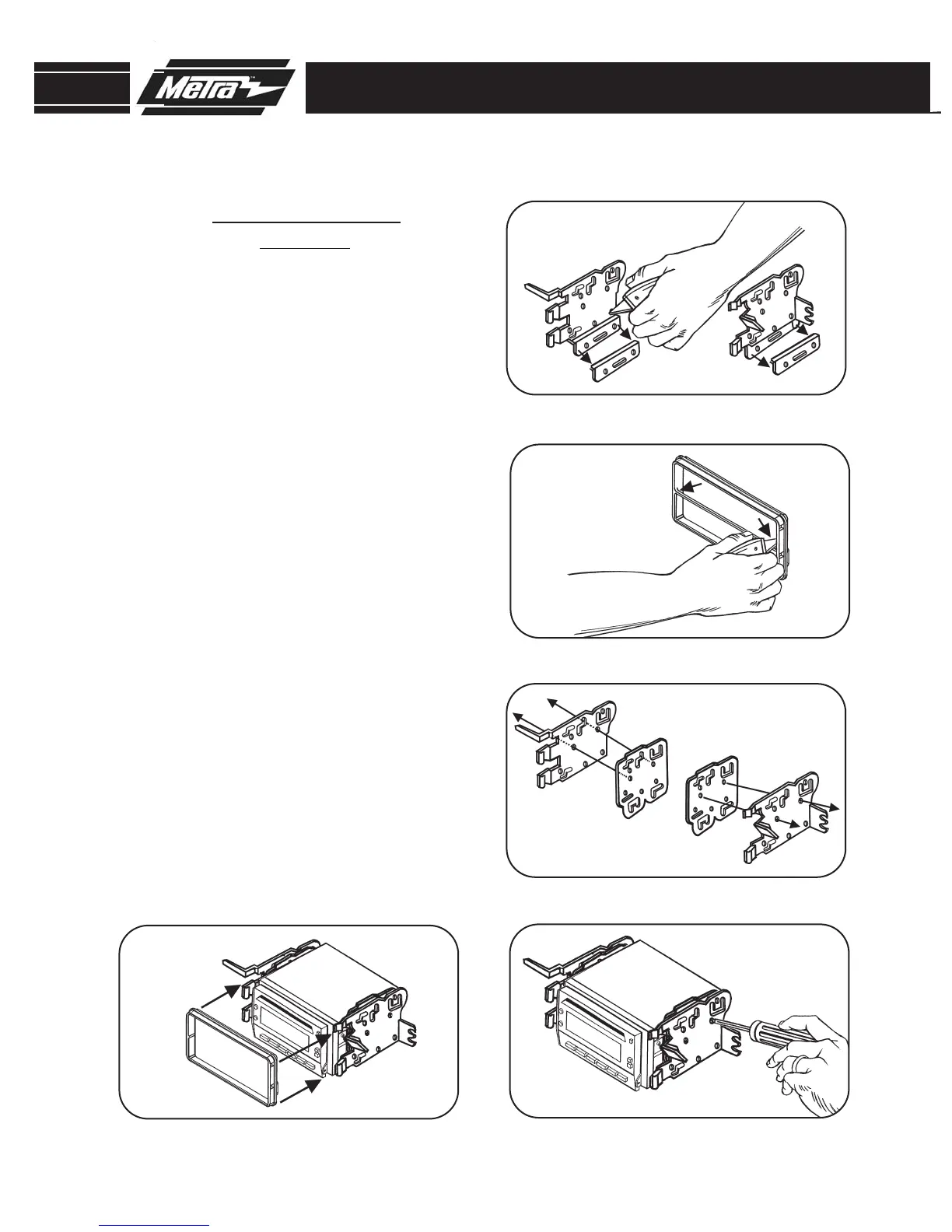

DOUBLE DIN HEAD UNIT PROVISION
99-8205
KIT ASSEMBLY
Cut and remove the bottom portion
(Displayed) of the mounting brack-
ets. (
Figure A)
1
NOTE: 2005-2008 Matrix not
applicable.
A
Cut and remove the center bar from
the DDIN faceplate. (
Figure B)
2
Attach the ISO spacers to the
mounting brackets by inserting the
(4) bosses on each spacer into the
(4) holes in each bracket. (
Figure C)
3
Attach the mounting brackets to the
DDIN head unit with the screws sup-
plied with the unit. (
Figure D)
4
Attach the DDIN faceplate over the
head unit by snapping the bracket
clips into the faceplate slots.
(
Figure E)
5
B
C
D
E
To Next Page
