99-8151
KIT ASSEMBLY
DIN RADIO PROVISION WITH POCKET
LEXUS IS 300 2001-2005
D
F
4
E

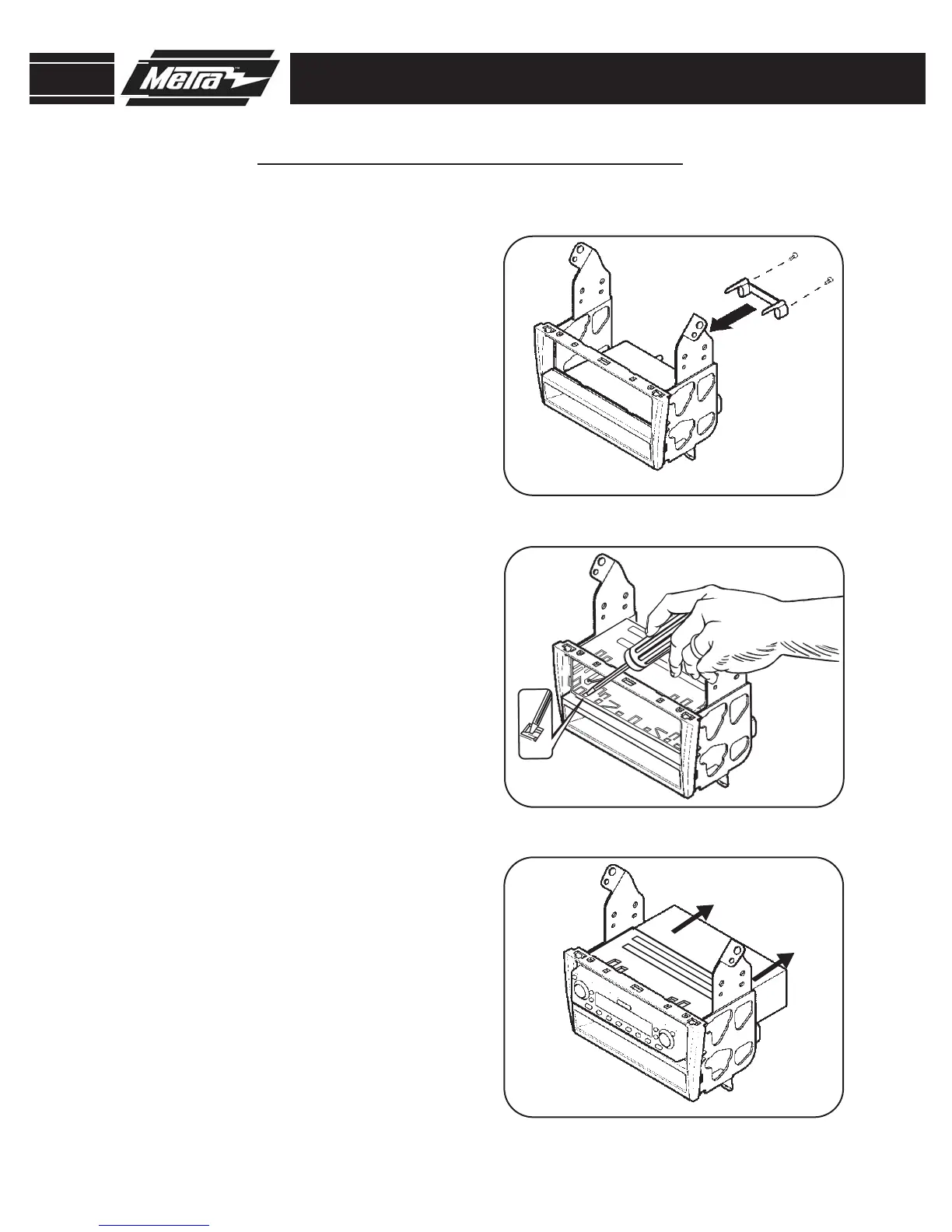

Mount the rear support bracket to
the back of the pocket using (2) #8 x
3/8” Phillips truss head screws pro-
vided with the kit.
(Figure D)
4
Slide the DIN cage into the radio
housing/pocket assembly and secure
by bending locking tabs outward.
(Figure E)
6
Slide the DIN radio into the DIN cage
until it snaps into place.
(Figure F)
7
Continue to final assembly.
8
Align and engage the (3) tabs on the
bottom of the climate controls to the
top edge of the radio housing/pocket
assembly. Secure the climate con-
trols to the assembly using the (4)
factory Phillips screws previously
removed from the climate controls.
5
To Next Page
