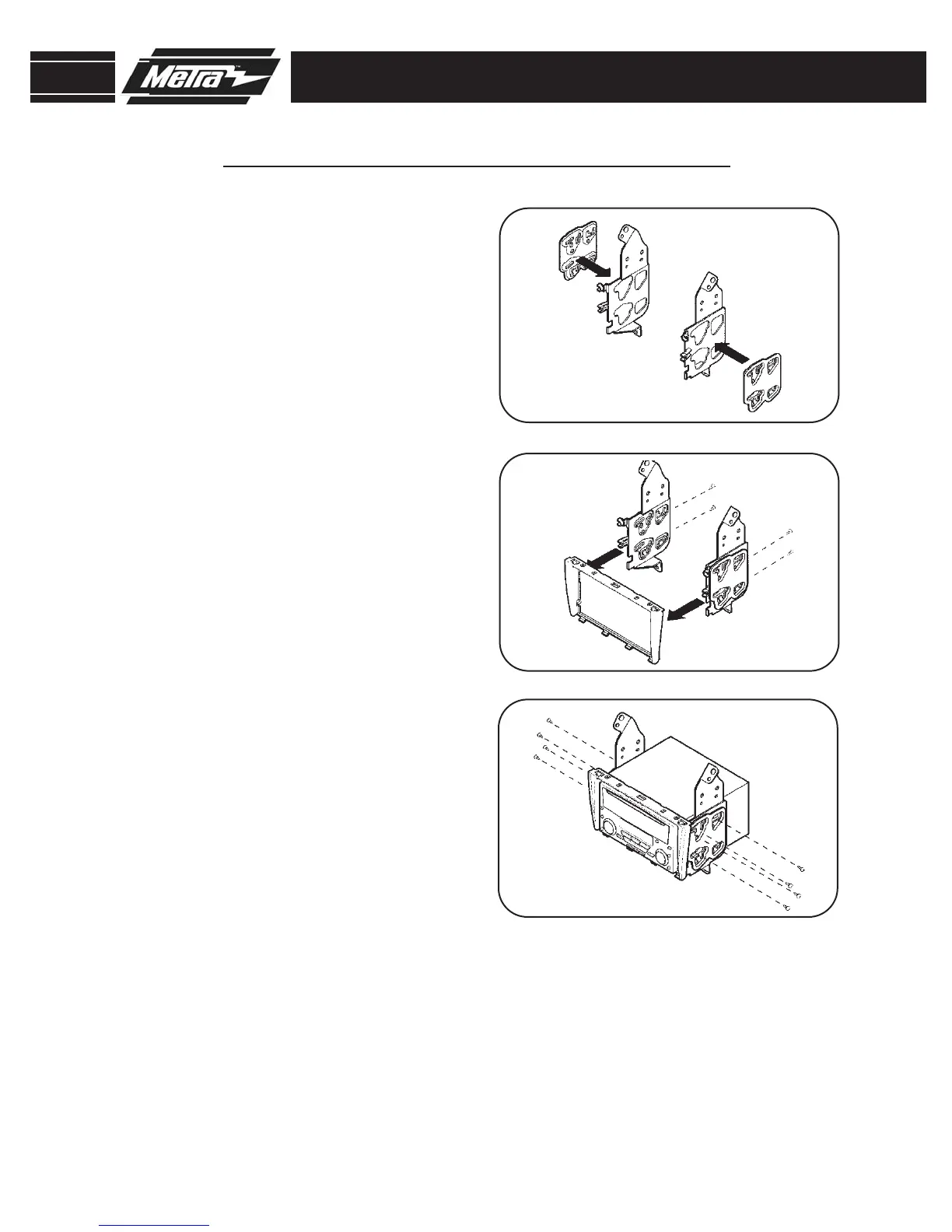

Insert the double din spacer brackets
into the mounting brackets.
(Figure A)
1
Secure the mounting brackets/spac-
ers to radio housing using (2) #8 x
3/8” Phillips truss head screws and
(2) #8 x 3/8” Phillips pan head
screws provided with the kit.
(Figure B)
2
DOUBLE DIN RADIO PROVISION
Align the holes in the brackets/spac-
ers with the holes in the aftermarket
double DIN radio and mount the
brackets/spacers to the radio using
the screws supplied with the radio.
(Figure C)
3
99-8151
KIT ASSEMBLY
A
B
C
