Align and engage the (3) tabs on the
bottom of the climate controls to the
top edge of the radio housing/pocket
assembly. Secure the climate con-
trols to the assembly using the (4)
factory Phillips screws previously
removed from the climate controls.
5
Mount the ISO Brackets to the radio
with the screws supplied with the
radio.

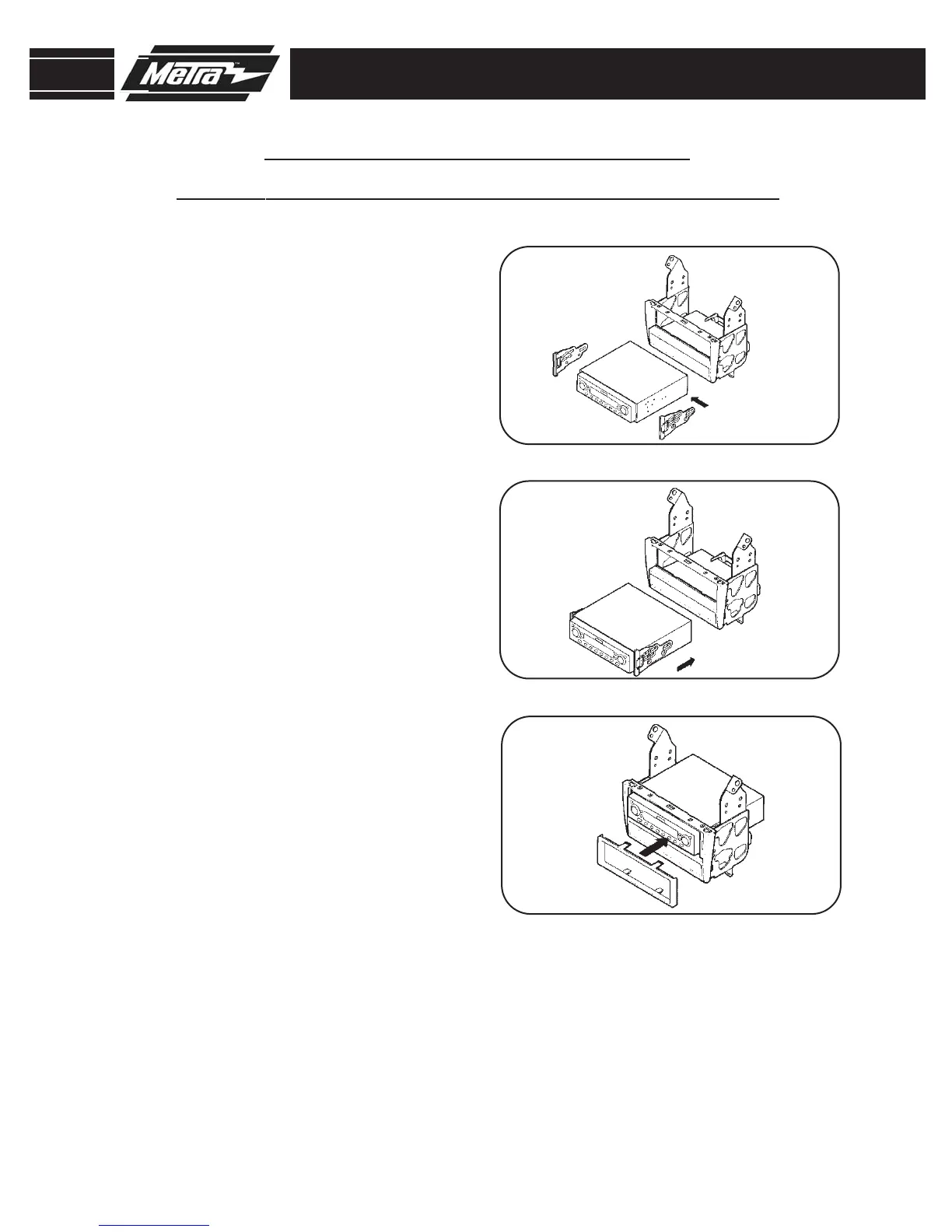

(Figure E)
6
Slide the radio into the radio housing
assembly until it snaps into place.
(Figure F)
7
Snap the ISO Trim-plate onto the
Radio Housing.
(Figure G)
8
Continue with final assembly.
9
Note: To remove the radio from the
housing unclip and remove the ISO
trim-plate. Using a small blade
screw driver release the clips on the
ISO snap in brackets and slide the
radio out of the housing assembly.
ISO RADIO PROVISION WITH POCKET
99-8151
KIT ASSEMBLY
E
F
G
LEXUS IS 300 2001-2005
