5

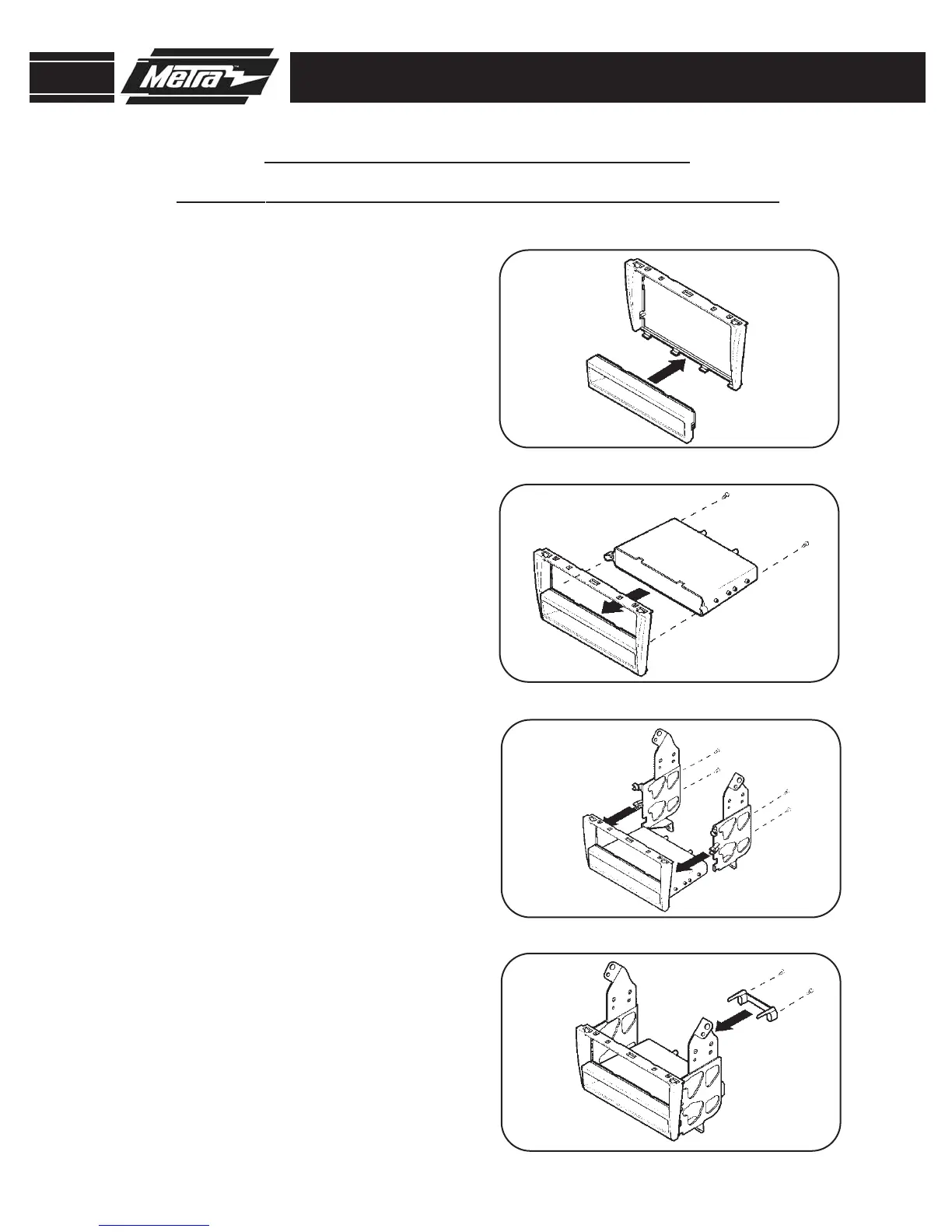

Position the pocket trim-plate in the
bottom of the radio housing.
(Figure A)
1
Attach the pocket to the pocket trim-
plate using (2) #8 x 3/8” Phillips
truss head screws provided with the
kit.
(Figure B)
2
Secure the mounting brackets to
radio housing/pocket assembly
using (2) #8 x 3/8” Phillips truss
head screws and (2) #8 x 3/8”
Phillips pan head screws provided
with the kit.
(Figure C)
3
Mount the rear support bracket to
the back of the pocket using (2) #8 x
3/8” Phillips truss head screws pro-
vided with the kit.
(Figure D)
4
ISO RADIO PROVISION WITH POCKET
99-8151
KIT ASSEMBLY
A
B
C
D
LEXUS IS 300 2001-2005
