99-8151
KIT ASSEMBLY

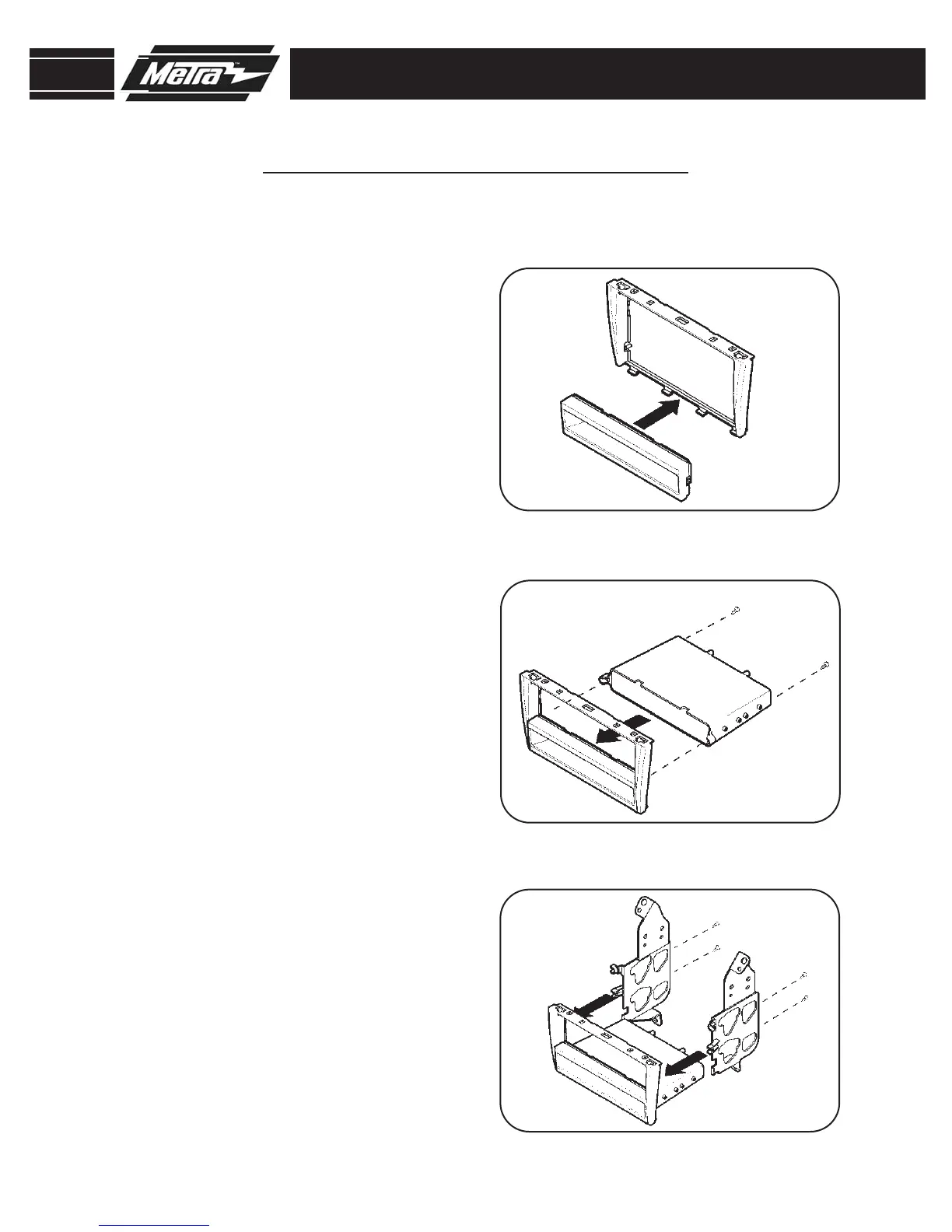

Position the pocket trim-plate in the
bottom of the radio housing.
(Figure A)
1
Secure the mounting brackets to
radio housing/pocket assembly using
(2) #8 x 3/8” Phillips truss head
screws and (2) #8 x 3/8” Phillips pan
head screws provided with the kit.
(Figure C)
3
DIN RADIO PROVISION WITH POCKET
A
C
3
B
Attach the pocket to the pocket trim-
plate using (2) #8 x 3/8” Phillips
truss head screws provided with the
kit.
(Figure B)
2
LEXUS IS 300 2001-2005
