TeraOhm 5kV
34
1
0
0,1 1 10
[kV]
Resistance under test (M )
Ω

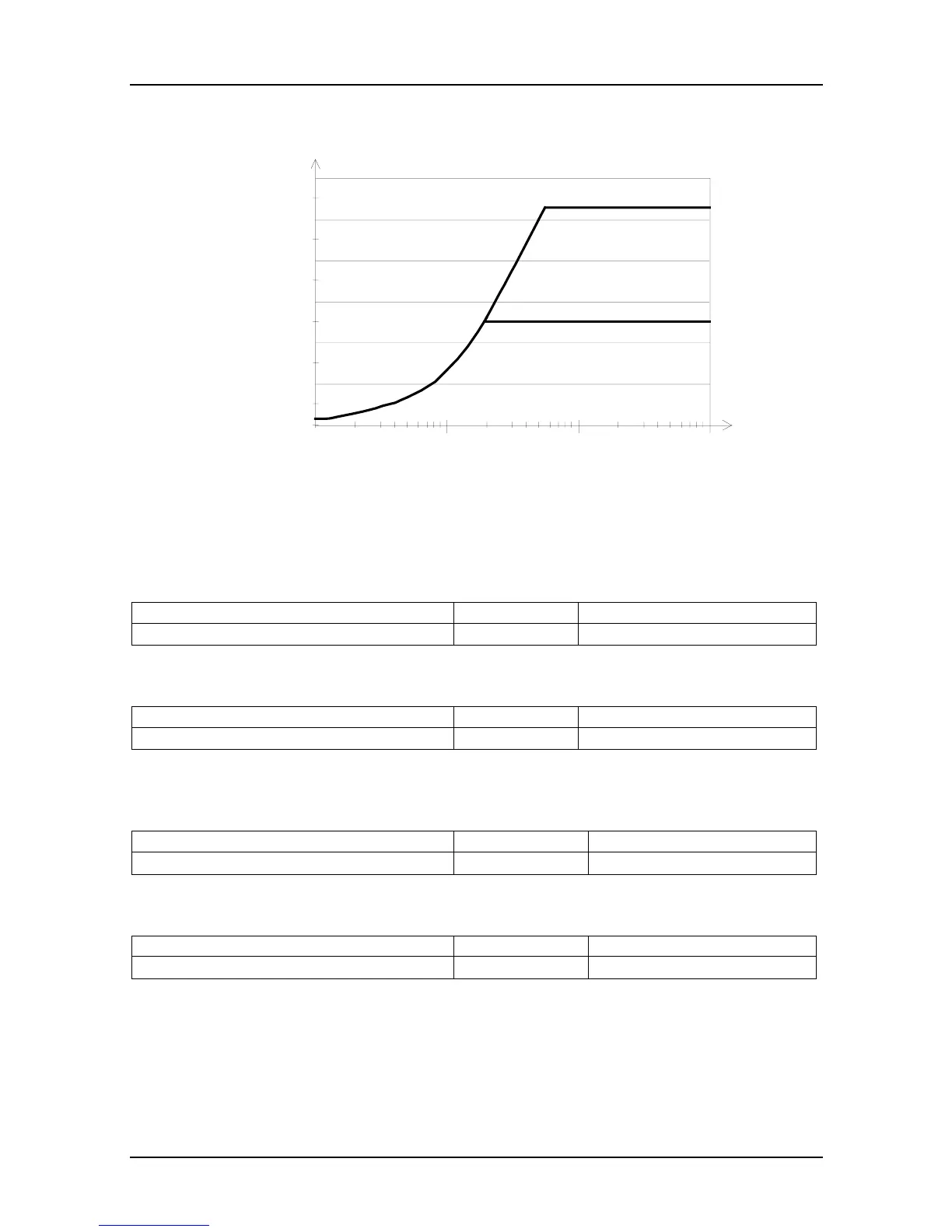

Generator Capability vs. Resistance
100
2
3
4
5
6
Output
voltage
*
*
* Note: examples of selected output voltage
Withstanding voltage
Voltage DC
Display range Withstanding voltage (V) Resolution Accuracy
0 ÷ 5500
1 V
± (3 % of reading + 40 V)
Leakage current
Display range Itrigg (mA) Resolution Accuracy
0 ÷ 1.4 1 µ A ± (3 % of reading + 3 digits)
Voltage
Voltage AC or DC
Display range External Voltage (V) Resolution Accuracy
0 ÷ 600
1 V
± (3 % of reading + 3 V)
Frequency of external voltage
Display range (Hz) Resolution Accuracy
0 and 45 ÷ 65
0.1 Hz
± 0.2 Hz
Note:
- for frequency between 0 and 45 Hz displayed <45 Hz
- for frequency over 65 Hz displayed >65 Hz
Input resistance: 3 M Ω ± 10 %
