2.4. Bottom Section
The bottom assembly is presented in the figure below. The carrying strap is fixed to the
bottom section by means of a plastic cover (2).
6
5
7
4
2
1
3
DISCONNECT ALL TEST LEADS AND SWITCH OFF INSTRUMENT,
BEFORE REMOVING THIS BATTERY/FUSE COVER - HAZARDOUS VOLTAGE!
DO NOT CHARGE IF BATTERY COMPARTMENT CONTAINS ALKALINE CELLS!
POWER SUPPLY: 6×1.2V - NiCd, NiMH RECHARGEABLE (IEC LR 14)
or 6×1.5V - ALKALINE BATTERIES (IEC LR 14)
VOR OFNEN DES BATTERIEFACHS ALLE ZULEITUNGEN VOM GERAT
ENTFERNEN UND DAS GERAT AUSSCHALTEN - GEFAHRLICHE SPANNUNG!
NICHT AUFLADEN WENN ALKALZELLEN VERWENDET SIND!
STROMVERSORGUNG: 6×1.2V - (IEC LR 14)
oder
NiCd, NiMH AUFLADBAR
6×1.5V - ALKALZELLEN (IEC LR 14)

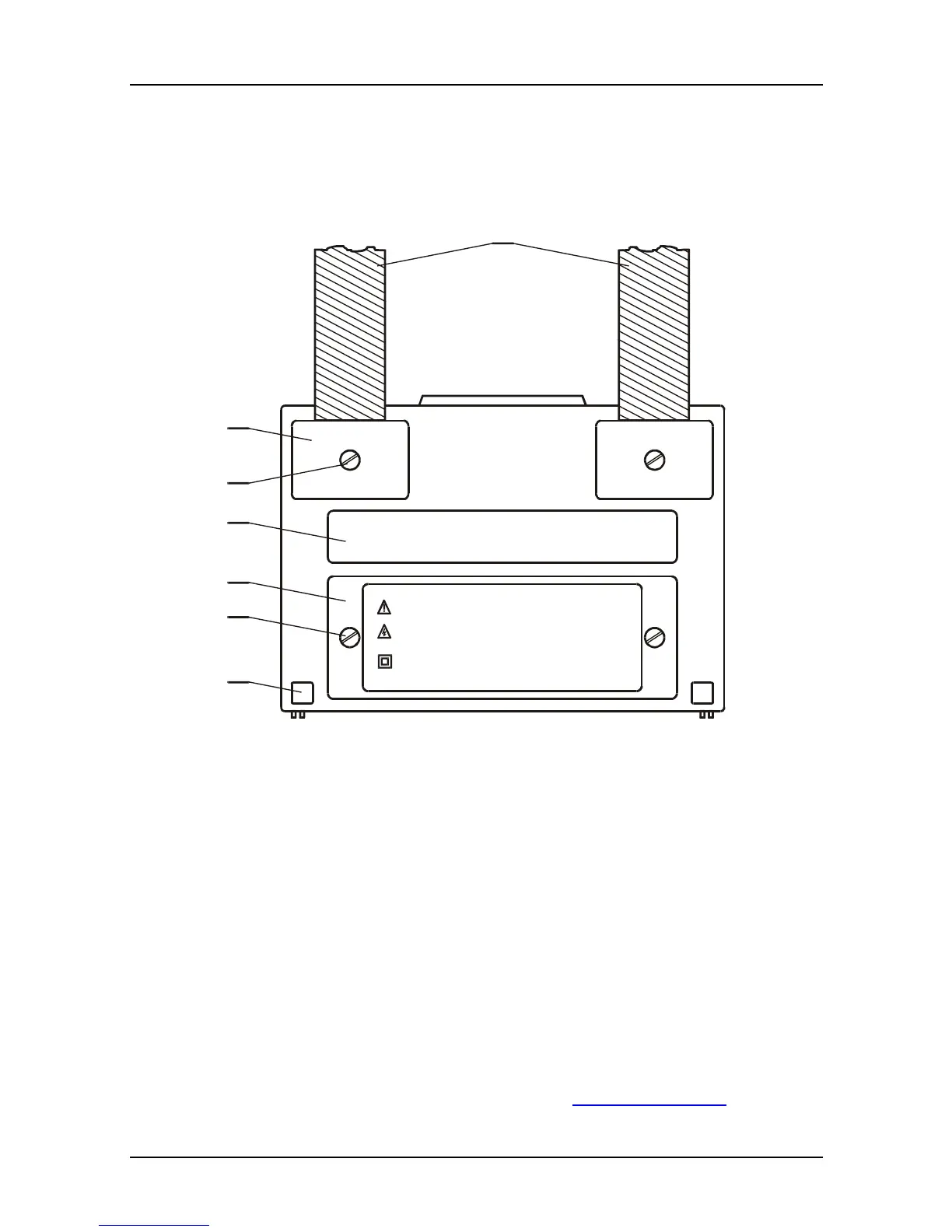

Fig. 3. Bottom section
Legend:
1 ..........Nylon strap (allows the operator to carry the instrument hung around the neck).
2 ..........Plastic cover (fixes the nylon strap to the instrument).
3 ..........Screw (unscrew to remove the carrying strap or to open the instrument).
4 ..........Label with measurement ranges.
5 ..........Battery/fuse compartment cover.
6 ..........Screw (unscrew to replace the batteries).
7 ..........Rubber foot.
2.5. Accessories
The accessories consist of standard and optional accessories. Optional accessories can
be delivered upon request. See attached list for standard configuration and options or
contact your distributor or see the METREL home page: http://www.metrel.si .
