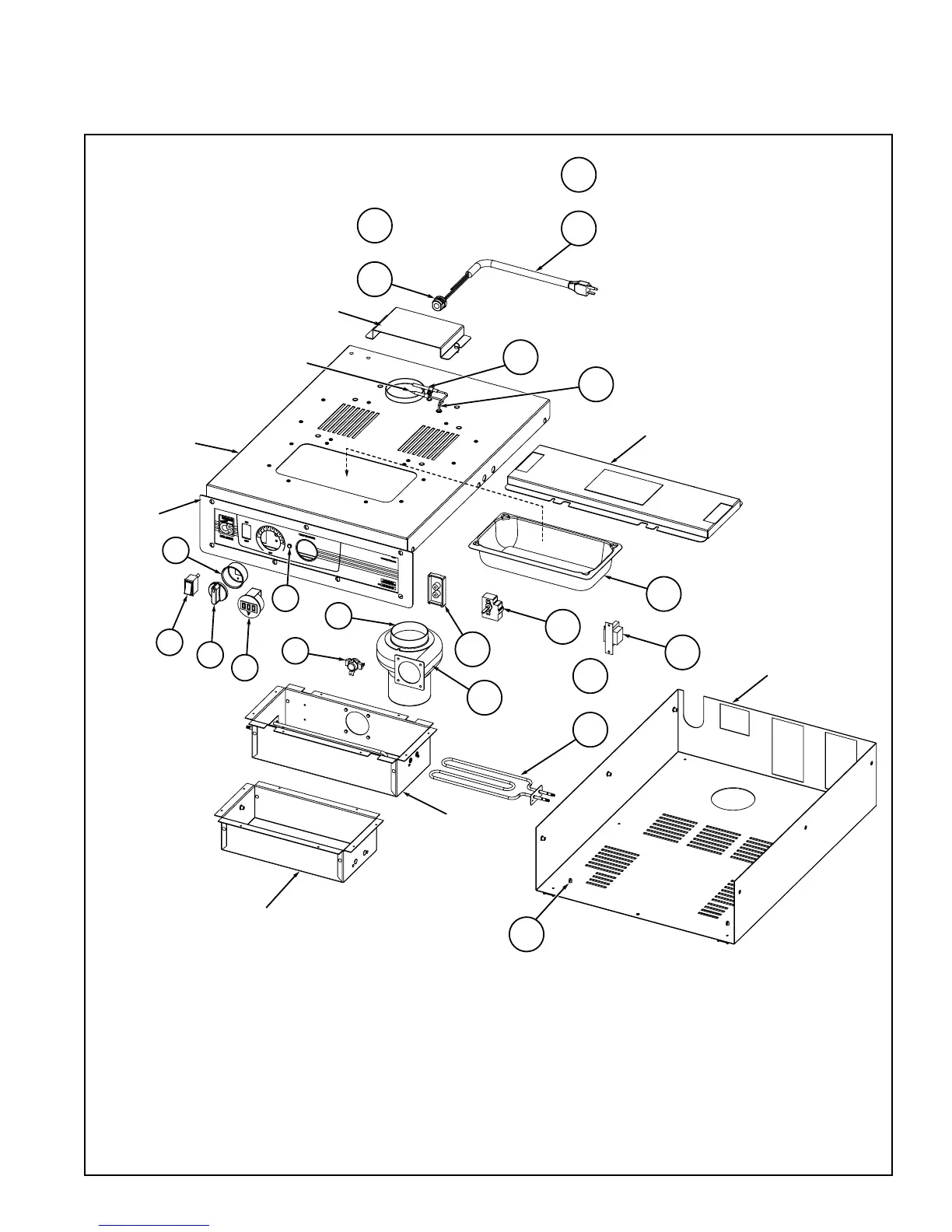

SERVICE and REPLACEMENT PARTS (continued)
(For 120V parts see Page 14 & for 220-240V parts see Page 15)
HOLDING MODULE
44A
44
or
AIR INTAKE
COVER
43A
43
or
STRAIGHT PLUG
CORD SHOWN
47
46
AIR DISCHARGE
COVER
48
BOTTOM
COVER
49
40A
40
or
37
AIR DUCT
WATER PAN
ENCLOSURE
33
45
39
38
42
34
30
32
36
35
CONTROL
PANEL
MODULE
CHASIS
HEAT THERMOSTAT
BULB &
THERMOMETER SENSOR
STAINLESS STEEL
WATER PAN
*
*
**
FOR 120V REPLACEMENT C5-HM2000 MODULE, ORDER ITEM #52 ON PAGE 14
FOR 120V REPLACEMENT C5-HM1500 MODULE, ORDER ITEM #55 ON PAGE 14
FOR 220-240V REPLACEMENT C5-HM2000X MODULE, ORDER ITEM #52 ON PAGE 15
**ON 220-240V MODULES THERMOMETER AND TRANSFORMER ARE SERVICED AS ONE UNIT.
