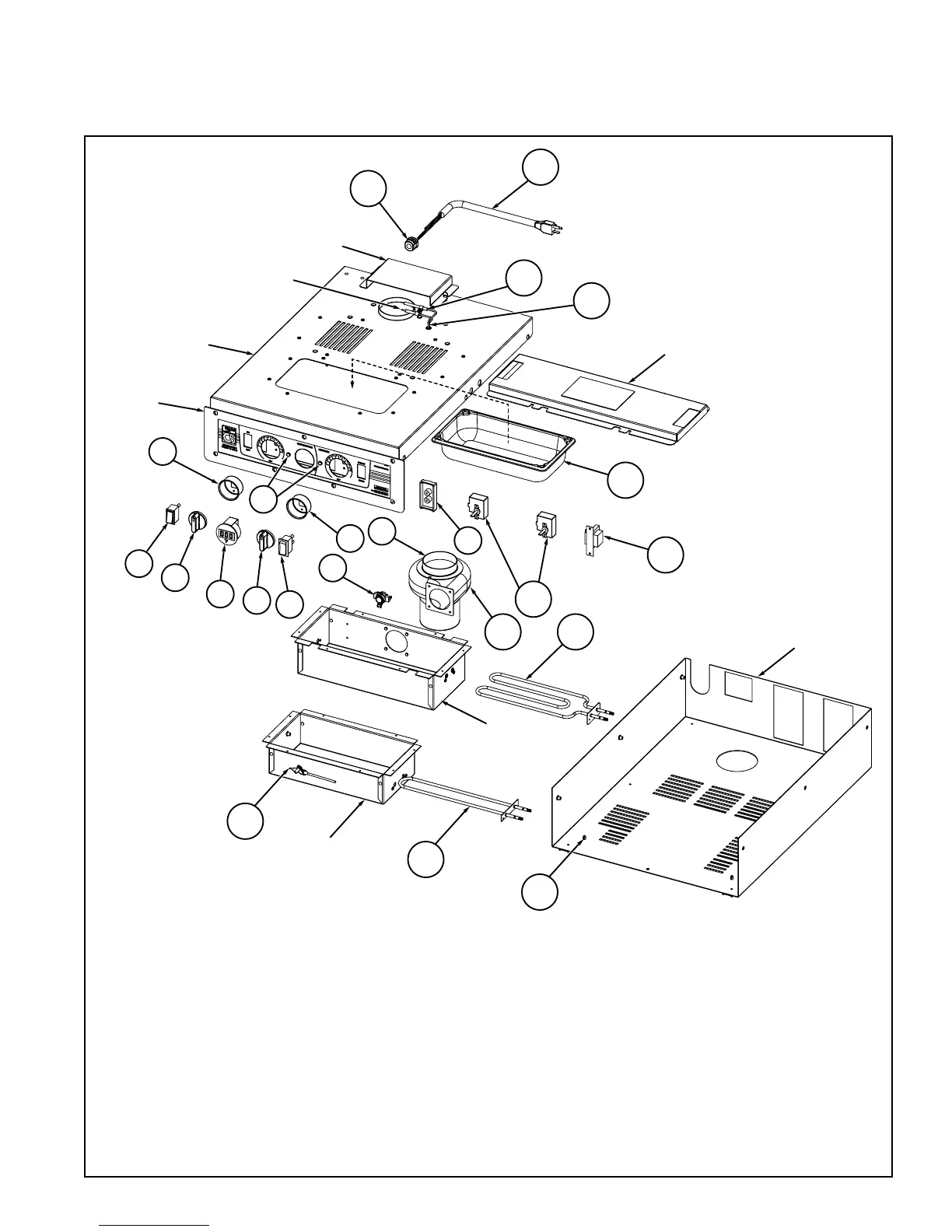

SERVICE and REPLACEMENT PARTS (continued)
(For 120V parts see Page 14 & for 220-240V parts see Page 15)
MOISTURE HOLDING MODULE
43
STRAIGHT PLUG
CORD SHOWN
47
46
44
AIR DISCHARGE
COVER
48
37
33
AIR DUCT
BOTTOM
COVER
49
50
40
WATER PAN
ENCLOSURE
39
45
38
47
MOISTURE
THERMOSTAT
BULB
42
34
34
30
32
36
32
31
35
CONTROL
PANEL
MODULE
CHASIS
HEAT THERMOSTAT
BULB &
THERMOMETER SENSOR
AIR INTAKE
COVER
STAINLESS STEEL
WATER PAN
*
*
*
*
FOR 120V REPLACEMENT C5-MM2000 MODULE, ORDER ITEM #56 ON PAGE 14
FOR 220-240V REPLACEMENT C5-MM2000X MODULE, ORDER ITEM #54 ON PAGE 15
**ON 220-240V MODULES THERMOMETER AND TRANSFORMER ARE SERVICED AS ONE UNIT.
