4 Mode of operation
806 Exchange Unit
￭￭￭￭￭￭￭￭
19
4 Mode of operation
4.1 Filling the dosing cylinder and dosing
1
2
3
4
5
6
7

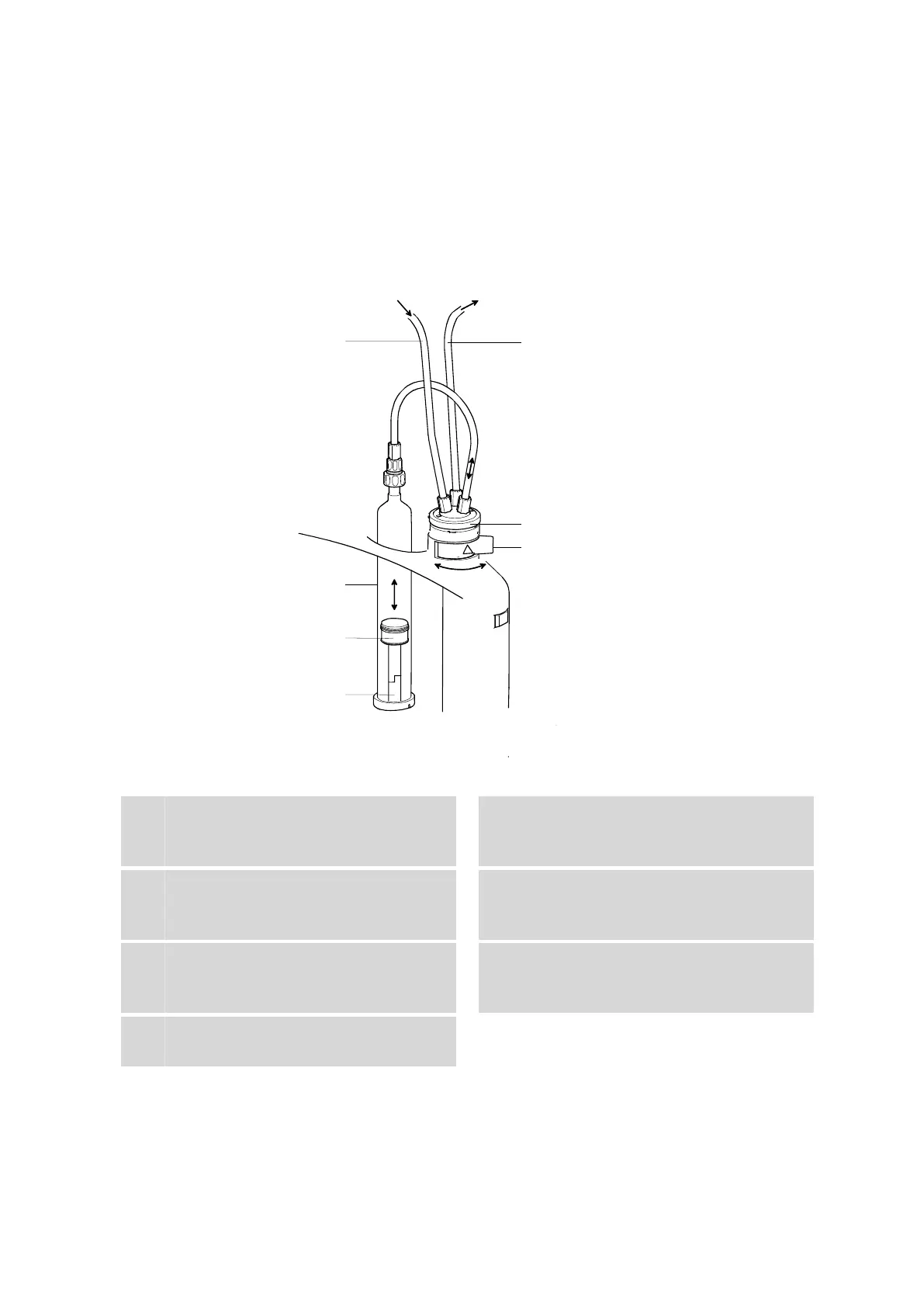

Figure 5 Dosing/Filling
1
Filling tube
For aspirating the solvent out of the reagent
bottle.
2
Dosing cylinder
Contains the solution for dosing. Volume
1 mL , 5 mL , 10 mL , 20 mL or 50 mL .
3
Dosing piston
For ejecting and aspirating a solution.
4
Piston rod
With coupling. For moving the dosing piston
in the dosing unit.
5
Dosing tubing
For dosing the solvent via the dosing tip.
6
Flat stopcock
For switching between filling and emptying
the dosing cylinder.
7
Switching lever
For manually switching the flat stopcock.
