Metrohm 823 Membrane Pump Unit - Figure 3 Connecting the Tubings; Figure 4 Screwing the Union Nuts Tightly

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Installation
￭￭￭￭￭￭￭￭
9
2
Connect the tubings to the tubing olives of the pump tubing using
union nuts.

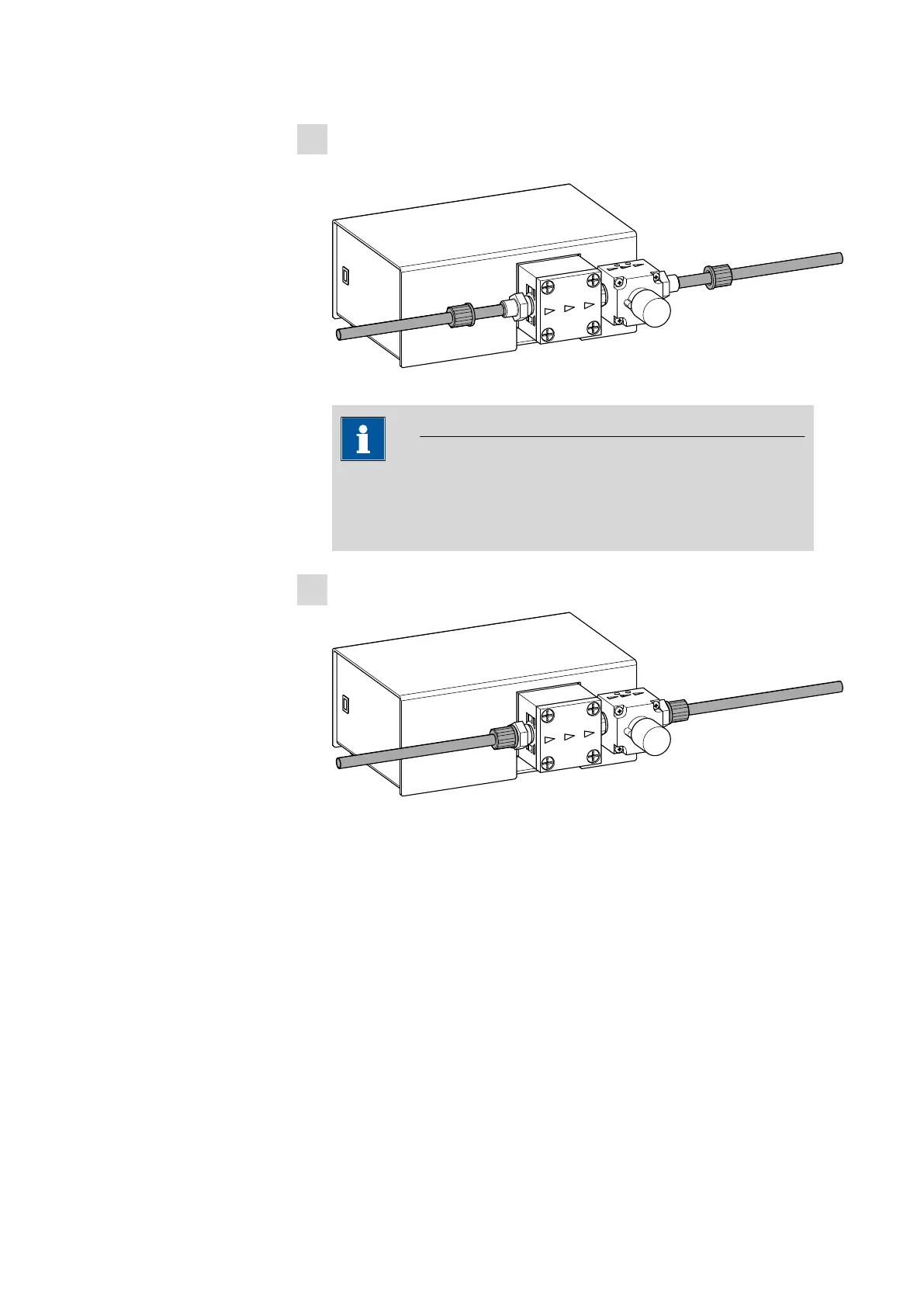

Figure 3 Connecting the tubings
NOTICE
To fasten PTFE tubings in place, you have to widen their openings
(e.g. using a Phillips screwdriver). You can use a piece of sandpa-
per to make the PTFE tubing easier to handle.
3
Screw the union nuts tightly to ensure a secure tubing connection.
Figure 4 Screwing the union nuts tightly
