SECTION 3 - M. FRAME, ADJ. RING, TRAMP REL. & CLRNG JACK ASSY
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL
3-33

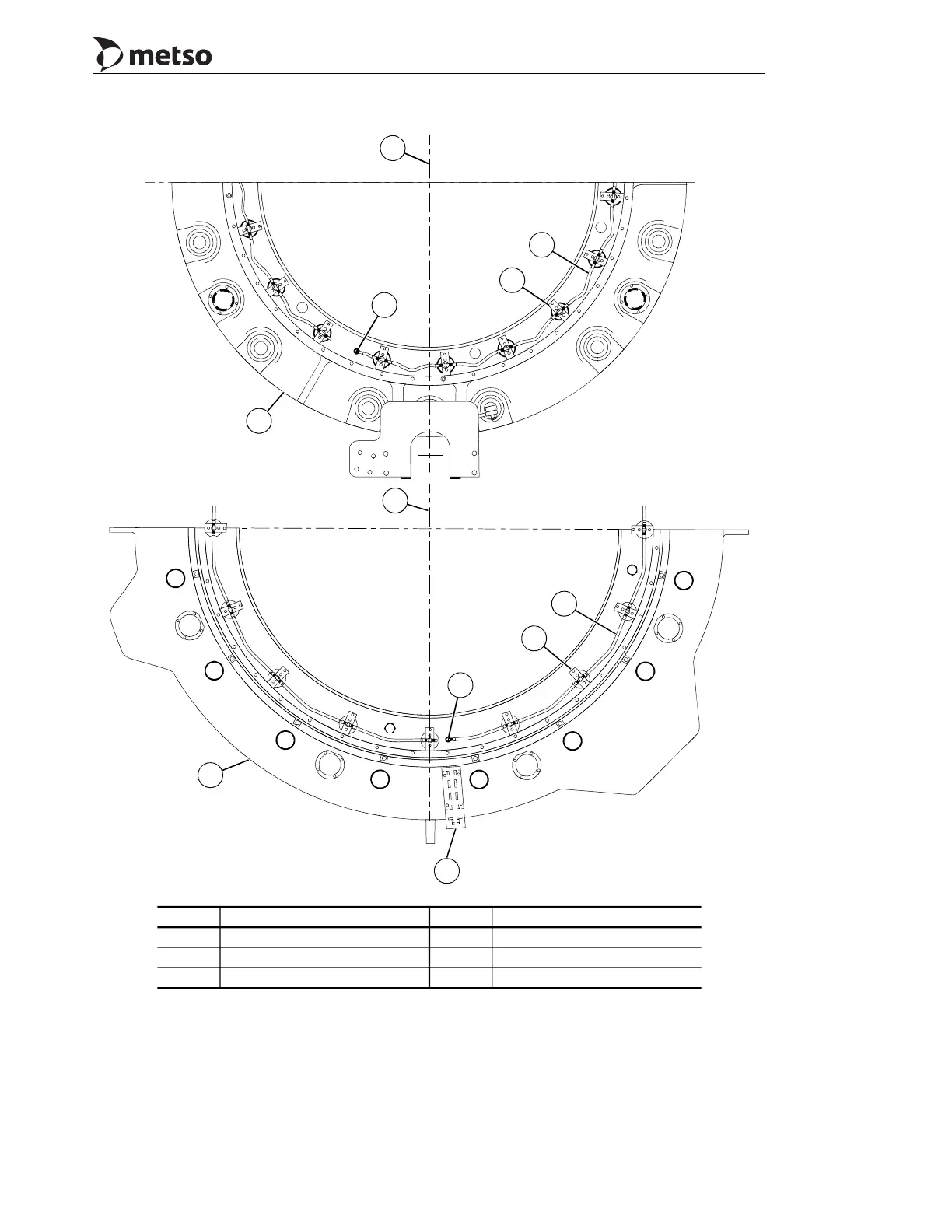

Figure 3-26 Clamping Cylinder Hose Connections
Callout Description Callout Description
1 Centerline of countershaft 4 Hose
2 Ø 50 mm (2") hole in clamp ring 5 Adjustment ring
3 Clamping cylinders 6 Hose guard
MP800
MP1000
1
4
3
2
5
1
4
3
2
5
6
