POWER
~
001%21
0
,.......--1·IMER---.,
Minutes Seconds
(10)
I
SONICATOR
CONTROL
PANEL
CONTROL
PANEL DESCRIPTION

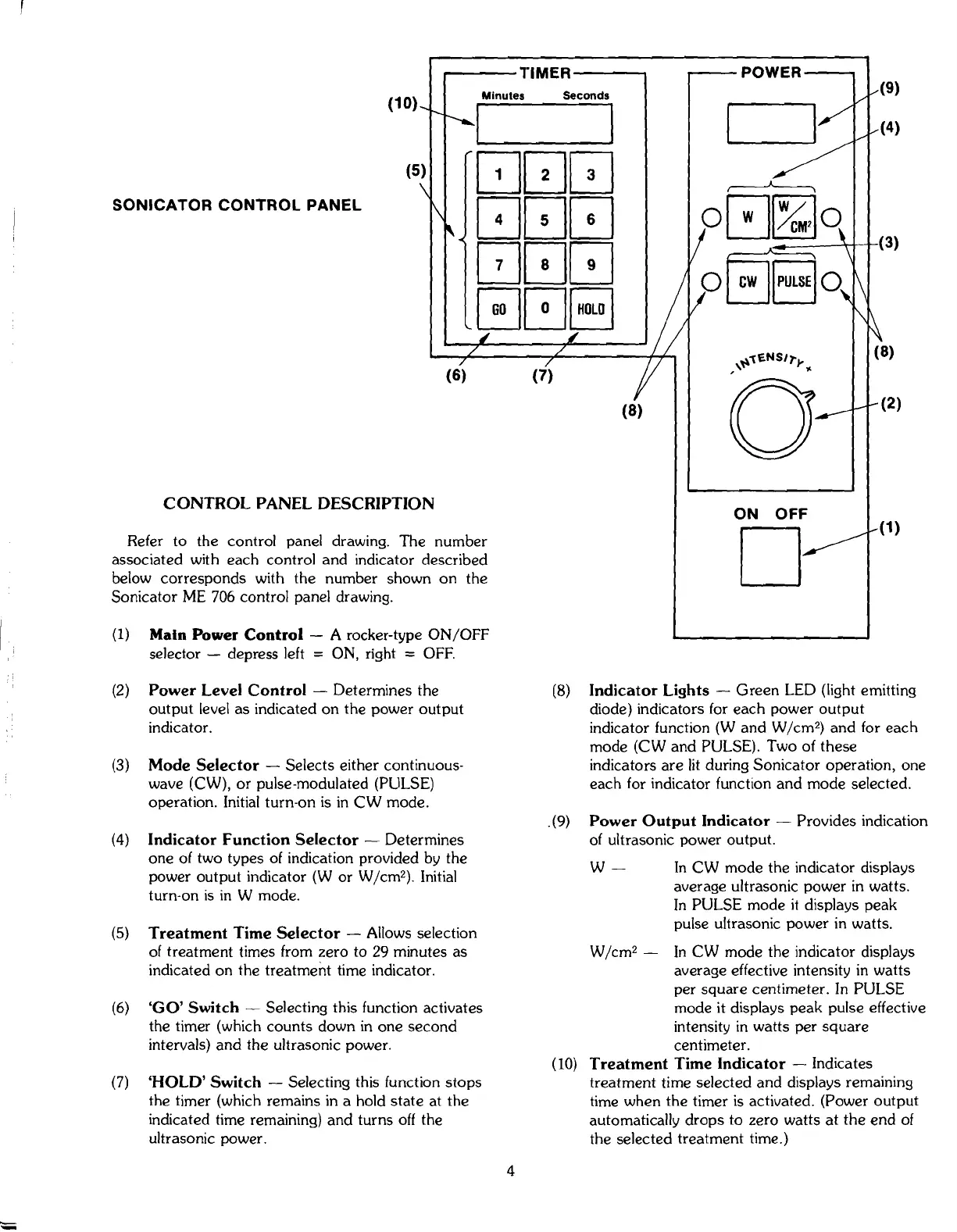

Refer to the control panel drawing. The number
associated with each control and indicator described
below corresponds with the number shown on the
Sonicator ME 706 control panel drawing.
(1)
Main Power Control - A rocker-type
ON/OFF
selector - depress left = ON, right = OFF.
(2)
Power
Level
Control
- Determines the
output level as indicated on the power
output
indicator.
(3)
Mode
Selector
- Selects either continuous-
wave (CW), or pulse-modulated (PULSE)
operation. Initial turn-on is in
CW
mode.
(4)
Indicator
Function
Selector
- Determines
one of two types of indication provided by the
power output indicator (W or W
/cm
2
) .
Initial
turn-on is in W mode.
(5)
Treatment
Time
Selector
- Allows selection
of treatment times from zero to 29 minutes as
indicated on the treatment time indicator.
(6)
'GO'
Switch
- Selecting this function activates
the timer (which counts down in one
second
intervals)
and
the ultrasonic power.
(7)
'HOLD'
Switch
- Selecting this function
stops
the timer (which remains in a hold state at the
indicated time remaining)
and
turns off the
ultrasonic power.
o[
cw
IlpUlSf)
0
(8)
(2)
(8)
ON OFF
D
(1)
(8)
Indicator Lights -
Green
LED (light emitting
diode) indicators for each power
output
indicator function
(Wand
W/cm
2
)
and for
each
mode (CW
and
PULSE). Two of these
indicators
are
lit during Sonicator operation, one
each for indicator function
and
mode selected.
.(9)
Power
Output
Indicator - Provides indication
of ultrasonic power output.
I
(9)
(4)
(3)
W -
W
/cm
2
-
In CW mode the indicator displays
average ultrasonic power in watts.
In PULSE mode it displays peak
pulse ultrasonic power in watts.
In CW mode the indicator displays
average effective intensity in watts
per
square
centimeter. In PULSE
mode it displays peak pulse effective
intensity in watts per
square
centimeter.
(10)
Treatment
Time Indicator - Indicates
treatment time selected and displays remaining
time when the timer is activated. (Power output
automatically drops to zero watts at
the
end
of
the selected treatment time.)
