To avoid mechanical stress on the DICE
TM

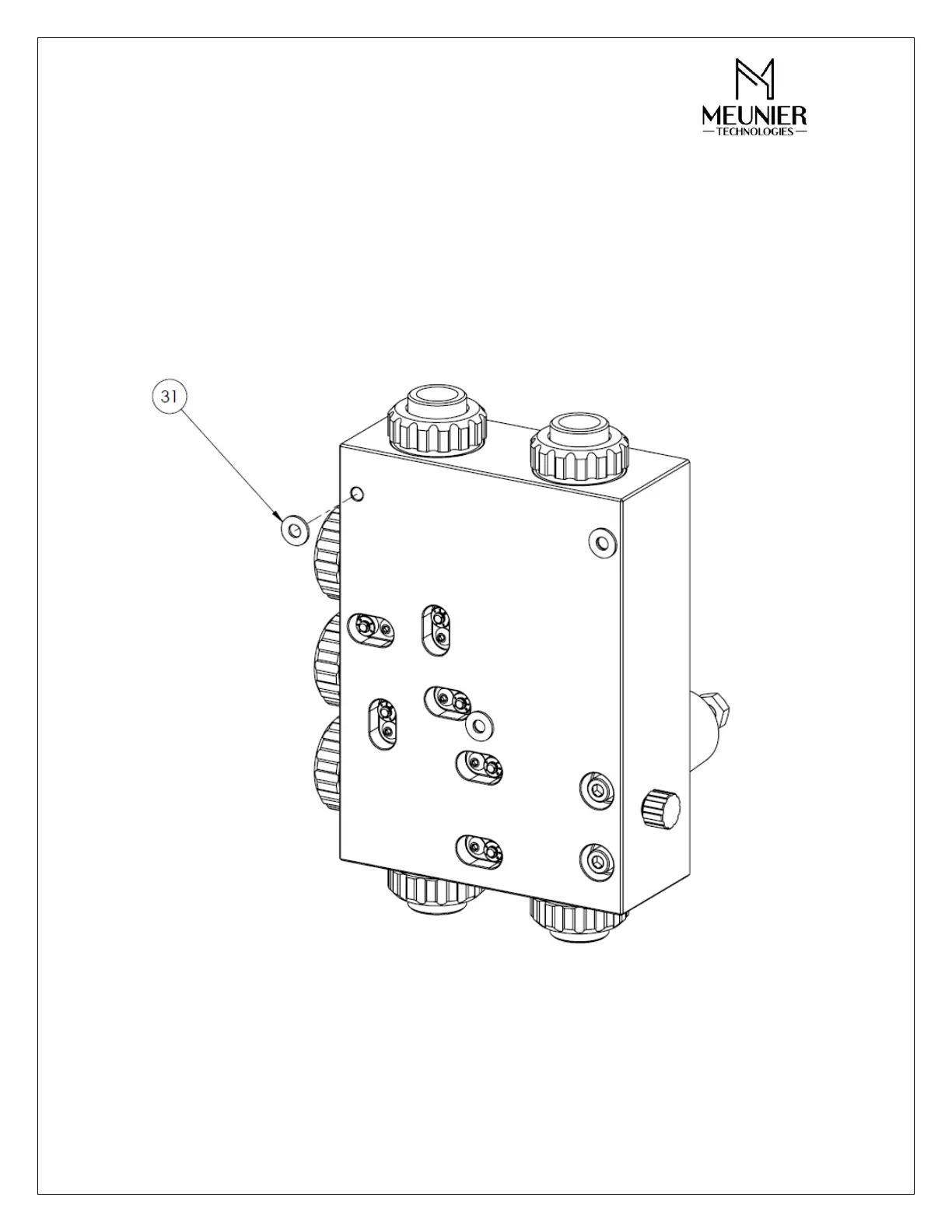

body, put the three (3) washers (31) provided
between each of the mounting holes (rear face) and the mounting surface. It is
important to make sure that no corner is touching the mounting surface. Only the
washers should touch the mounting surface. See the following figure for this type of
mounting. Mounting holes can accommodate both M6 and ¼ size socket head screws.
Each screw should be torqued to 35 in-lb.
When installing the DICE
TM
dosing module, remember to factor in sufficient space for
module maintenance.
