Installation
Warning! Always use the proper tool for each step of the installation.
Mounting

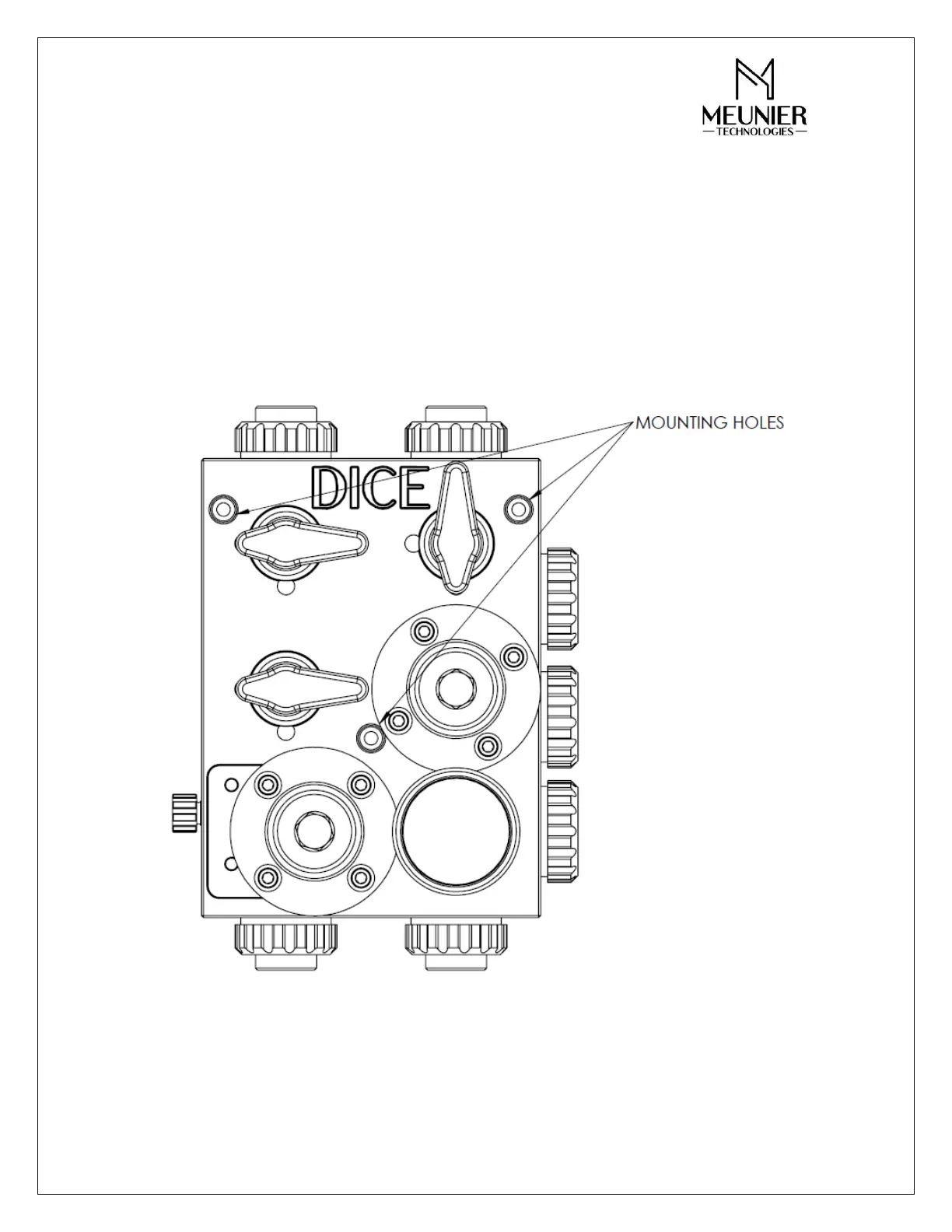

The DICE
TM
dosing module is designed to be mounted on a planar surface using the
three (3) mounting holes. The DICE
TM
should always be mounted so that the injection
port is facing upwards as shown in the following figure. To avoid accumulation and
trapped air, the DICE
TM
should always be levelled.
