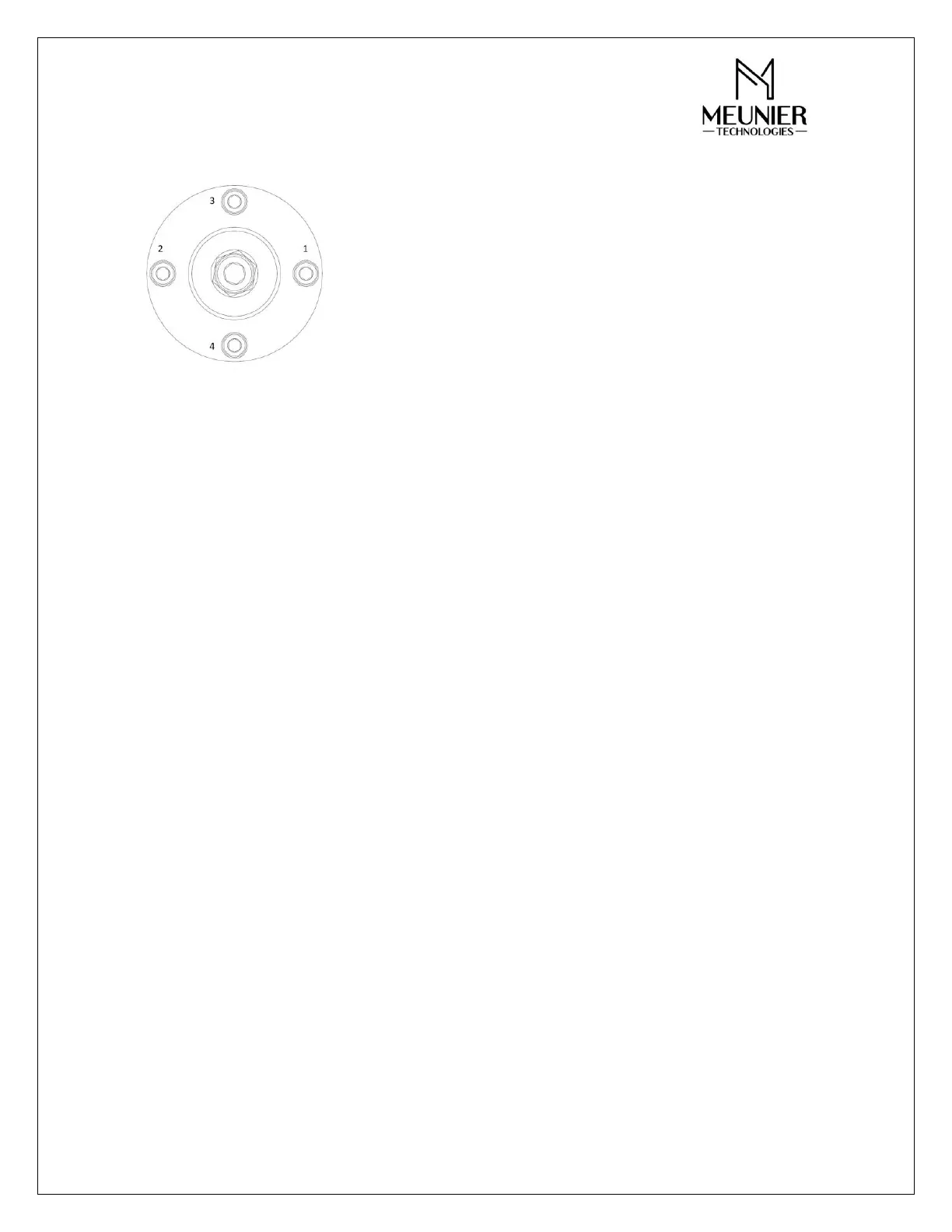

Gently screw all four bolts following the pattern below.
Important:
Torque the 4 mounting screws to 35 in-lb.
Make sure the regulating valve body (13) is properly seated on the block (1) by
ensuring no gap is present between the two parts, using a filler gauge on four
different points.
The following tools are required:
Adjustment screw (19): 17-mm socket wrench
Mounting screws (18): 5-mm-Allen
Torque wrench
Once the regulating valve is installed, proceed with the regulating valve adjustment.
Follow the above procedure for back pressure valve and pressure relief valve
adjustment.
