APPENDIX A
In weather-protected versions, a rain hood is included
to safeguard the user panel and connectors from the
elements.

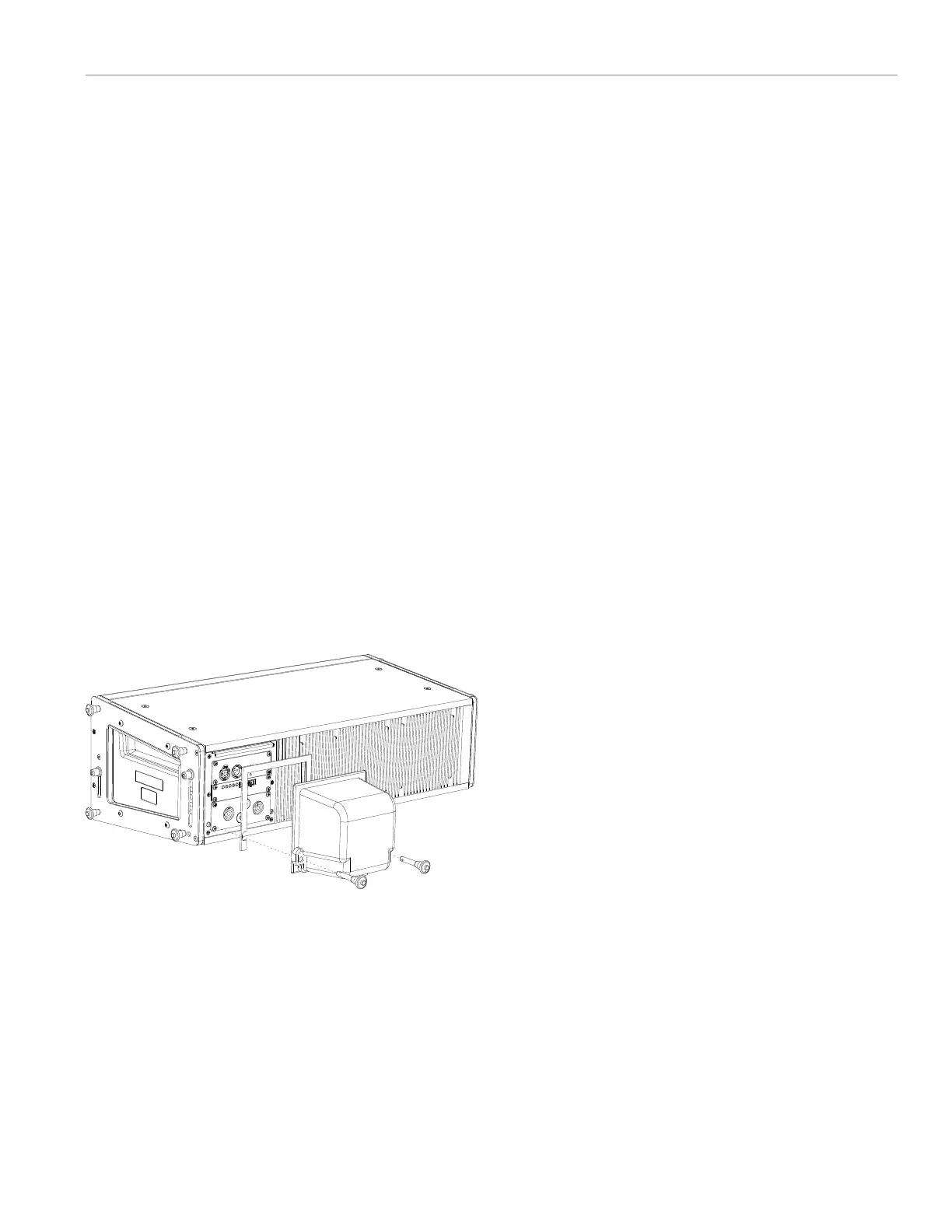

INSTALLING THE M’ELODIE QUICK-CLIP RAIN
HOOD
1. Check the rain hood to assure that the gasket material
is firmly attached along all the inner edges. If not
installed, install the gasket to the rain hood; do not
install the gasket to the user panel.
2. Holding the rain hood at a slight angle away from the
enclosure, rotate the top (long) edge of the hood into
the slot in the user panel. Push the hood upward into
the slot until it stops.
3. Move the hood toward the enclosure until it makes
contact and its side edges are within the pin receiving
holes on the left and right sides of the user panel. Press
in to compress the foam against the enclosure.
4. Holding the rain hood in place, insert the black button
pins (5/16" x 0.63") one at a time into their mating holes
on the two sides of the user panel. Once the pins are
inserted, check that they are locked.
5. To remove the rain hood, reverse steps 4 through 2.
