MPA-UPQ Splay Angles for Arrayed
Loudspeakers
The MPA-UPQ array adapter plate has six different M10
screw holes for adjusting the splay angle for arrayed
UPQ-D Series loudspeakers. The following illustrations show
the possible splay angles for arrayed loudspeakers.

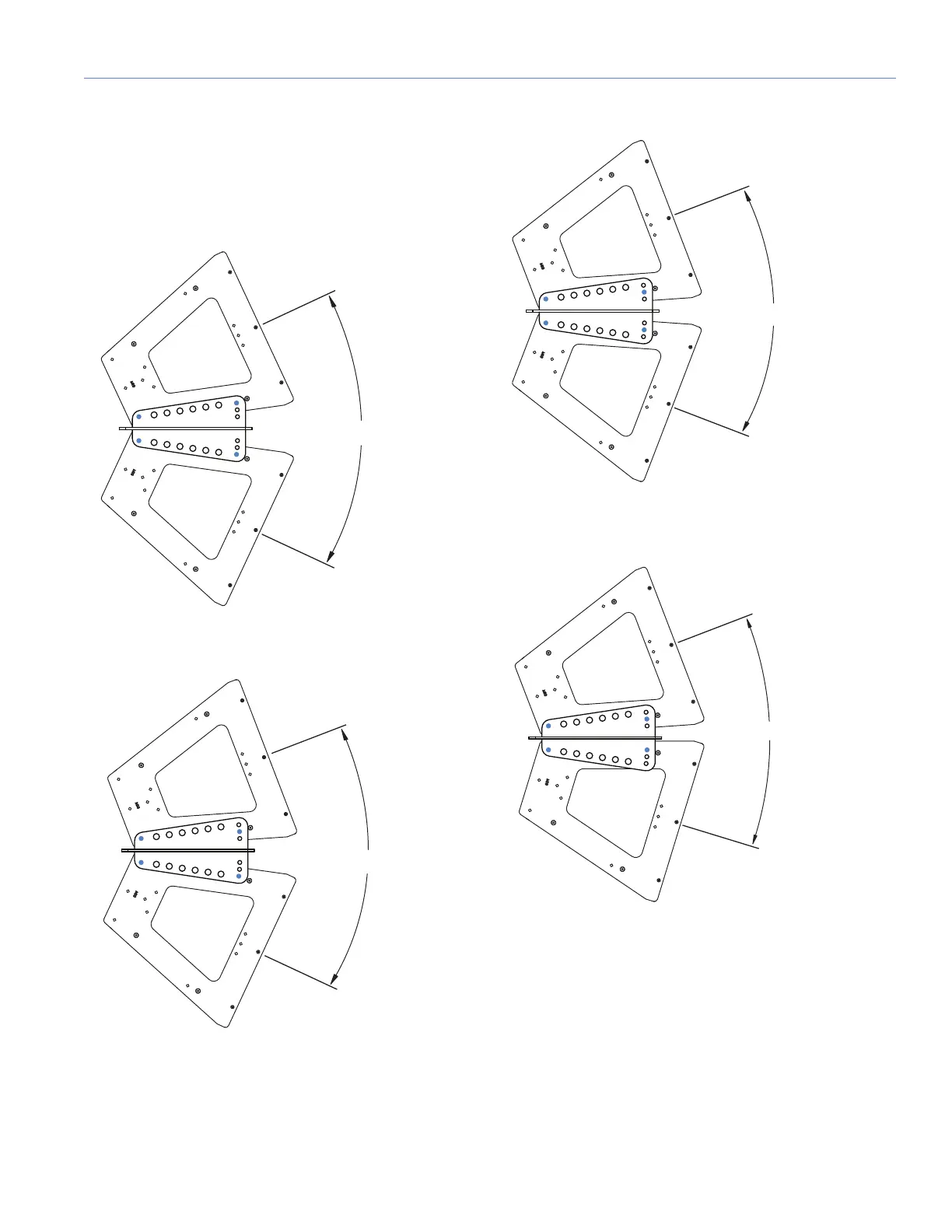

Figure 22: MPA-UPQ with Loudspeakers Arrayed at 50°
Figure 23: MPA-UPQ with Loudspeakers Arrayed at 46°
50°
46°
Figure 24: MPA-UPQ with Loudspeakers Arrayed at 42°
Figure 25: MPA-UPQ with Loudspeakers Arrayed at 38°
42°
38°
