MFJ-1798 Vertical Antenna Instructions
12
Refer to figure 4 for the next assembly steps.
Locate the following parts:
Six 6-32 x 5/8" screws (B3)
Six 6-32 nuts (B4)
Three small "L" brackets (C1)
Five flat rectangular fiberglass stub insulators (C2)
14- With four fiberglass stub insulators and two aluminum "L" support brackets, make two
insulating "X" brackets. Each "X" bracket is made by sandwiching one "L" support bracket
between a pair of rectangular fiberglass insulators with two 6-32 x 5/8" screws and nuts
(remember to look at figure 4).
15- Construct a fiberglass "I" bracket by assembling the remaining "L" support bracket and
fiberglass insulator with two 6-32 x 5/8" screws and nuts.

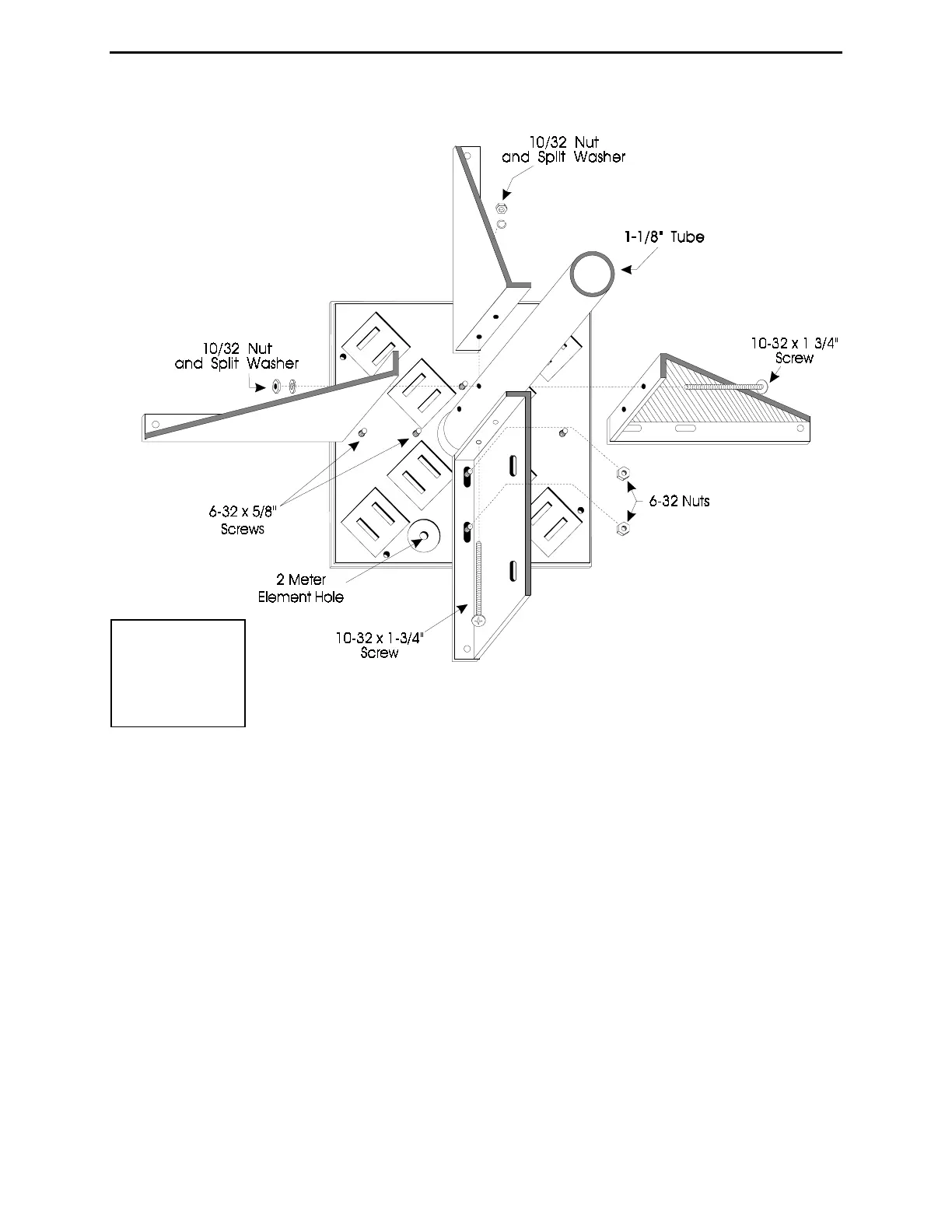

Figure
3
