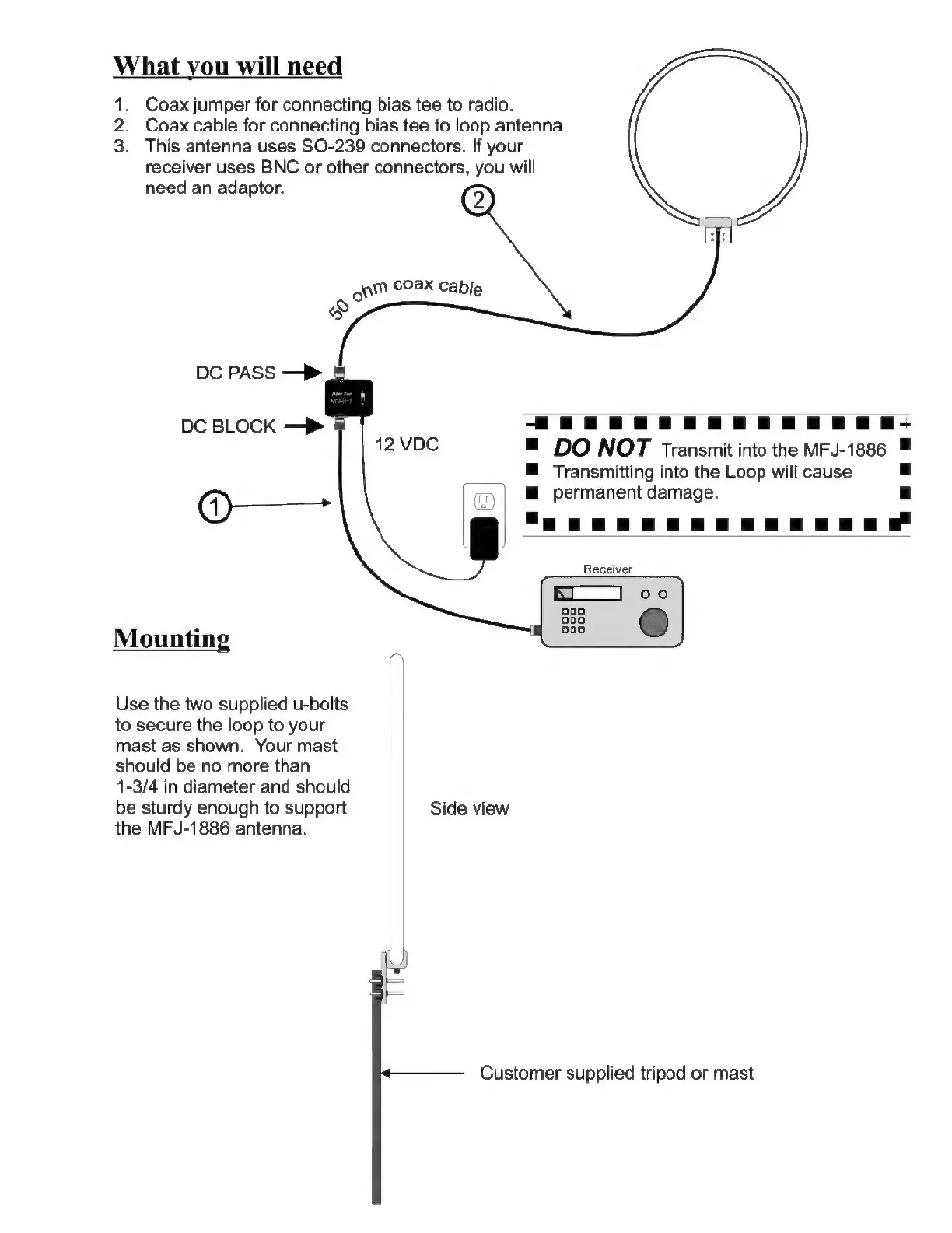

What you will need
1. Coax jumper for connecting bias tee to radio.
2. Coax cable for connecting bias tee to loop antenna
3. This antenna uses SO-239 connectors. If your
receiver uses BNC or other connectors, you will
need an adaptor.
on™ coax Cable
os)
DC PASS —> 3
DC BLOCK —> TOP P eee eee eee
12 VDC @ DO NOT Transmit into the MFJ-1886 ©
™ Transmitting into the Loop will cause :
) i permanent damage. |
BEEBE BRB RRP eee
Receiver
Mounting
Use the two supplied u-bolts
to secure the loop to your
mast as shown. Your mast
should be no more than
1-3/4 in diameter and should
be sturdy enough to support Side view
the MFJ-1886 antenna.
Customer supplied tripod or mast
