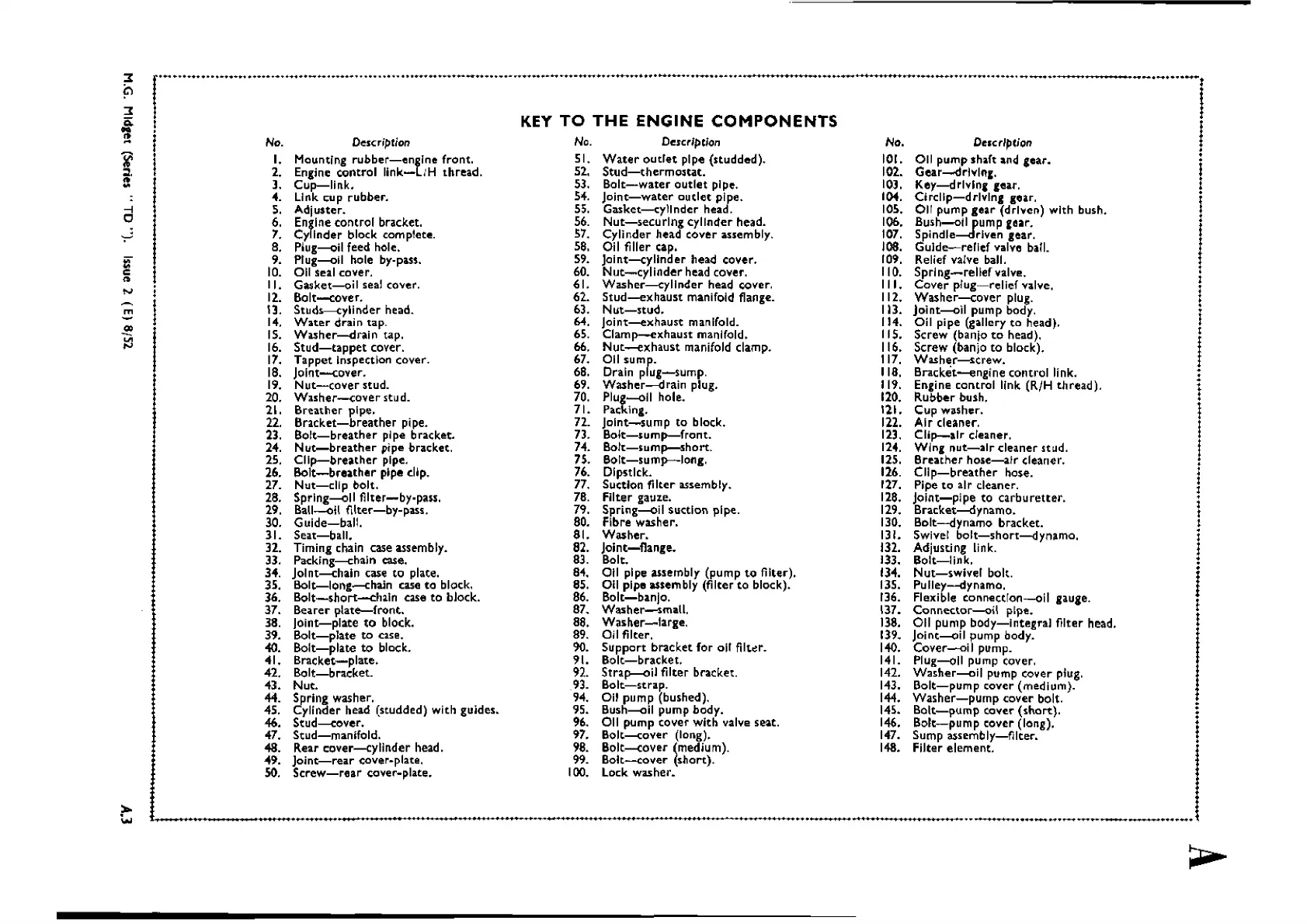

I KEY TO THE ENGINE COMPONENTS I
I No. Description No. Descrlpclon No. Descrlpllon !
j
'
I. Mounting rubber-engl ne front. 51. Water outlet pipe (studded). 10l. 011 pump shaft and cear. 'j'
2. EnCine control IInk-l.'H thread. 52. Stud-thermostat. 102. Gear-drl"lna:.
3. Cup-link. 53. Bolt-water outlet pipe. 103. Key-drlvlnC gear. 1
.... Link I;Up rubber. 54. Joint-water outlet pipe. IlH. Clrcllp-drlvlnl lur. 'j
5. Adjuster. 55. Gasket-cyllnder head. lOS. 011 pump gear (driven) with bush. ,
6. Engine control bracket. 56.
Nut-securing cylinder head. 106. Bush-otl pump cur. '1
7. Cylinder block complete. 57. Cylinder head cover assembly. 107. Spindle-drlven gear. f
8. Plug---oll feed hole. 58. 011 filler cap. 108. GuIde-relief valve ball.
9. Plug---oll hole by-pass. 59. Joint-cyllnder head cover. 109. Relief valve ball.
10.
011 seal cover. 60. Nut-cylinder head cover. I10. Sprl ng-rellef valve. l
II. Gasket-oi I seal cover. 61. Washer-cyll nder head cover. III. Cover plug-rei ief valve. ,
12.
Bolt-eover. 62. Stud-exhaust manifold flange. 112. Washer-eover plug. 1
13. Studs-cylinder head. 63. Nut-stud. 113. joint-oil pump body. ~
I.... Water drain tap. 64. Jolnt-exhaust manifold. 114. Oil pipe (gallery to head). 1
15. Washer-drai n tap. 65. Clam p-exhaust manifold. 115. Screw (banjo to head). I
16. Stud-tappet cover. 66. Nut-exhaust manifold clamp. 116. Screw (banjo to block). f
17. Tappet inspection cover. 67. 011 sump. 117. Washe:r-screw. f
18. Jolnt-eover. 68. Drain pILlg-sump. 118. Bracket--engine control link. :
19. Nut-s-cover stud. 69.
Washer-drain plug. 119. Engine control link (RIH thread). i
20. Washer-eover stud. 70. Plug-oll hole. 120. Rubber bush. :
21. Brnther pipe. 71. Pa~kln&. 121. Cup washer. !
22. Bracket-breather pipe. 72. Jolnt-sump to block. 122. Air cleaner. I
23. Bolt-breather pipe bracket. 73. Bolt-sump-front. 123. Clip-air cleaner.
24.
Nut-breather pipe bracket. 74. Bo!t-sump-short. 124. Wing: nut-air cleaner stud, 1
25. Cllp-brnther pipe. 75. Bolt-sump-Iong:. 125. Breather hose-aJr cleaner. :
26. &olt-breather pipe cUp. 76. Dipstick. 126. Clip-breather hose. 1
27. Nut-clip bolt. 77. Suction filter assembly. 127. Pipe to air cleaner. 1
28. 5prlng-oll fllter-e-by-pass, 78. Filter gauze. 128. joint-pipe to carburetter. i
19. Ball-oH f'llter-by-pass. 79. Spring---oil $uctloll pipe. 129. Bracket-dynamo. I
30.
Guide-ball. 80. Fibre washer. 130. Bolt-dynamo bracket. I
31.
Seat-ball. 81. Washer. 131. Swivel bolt-short-dynamo. 1
32. Timing chain case assembly. 82. joint-flange. 132. AdjuSting link. 1
33. Packing---chaln case. 83. Bolt. 133. Bolt-link. :
34.
jolnt-ehain case to plate. 84. 011 pipe assembly (pump to filter). 134. Nut-swivel bolt. i
35. Bolt-Iong-chain case to block. 85. 011 pipe assembly (filter to block). 135. Pulley-dynamo. 1
36. Bolt-short-ehaln case to block. 86. Bolt-ba.njo. 136. Flexible connectlon-oll gaLige. ,
37. Bearer
plate-front. 87. Washer-small. \37. Conneclor-oil pipe. t
38. joint-plate to block. 88. Washer-large. 138. 011 pump body-Integral filter head. 1
39. Bolt-plate to case. 89. Oil filter. 139_ JOint-oil pump body. i
40. Bolt-plate to block. 90. Support bracket for oil filt~r. 140. Cover-oil pump.
41. Bracket-plate. 91. Bolt-bracket. I'll. PI ug-oil pump cover.
42.. Bolt-bracket. 92. Strap----oiJ filter bracket. 142. Washer-oil pump cover plLig. i
"'3. Nut. 93. Bolt-strap. 143. Bolt-pLimp cover (medium).
44. Spring washer. 94. Oil pump (bushed). 144. Washer-pump cover bolt. •
45. Cylinder head (studded) with guides. 95.
Bush-oil pump body. 145. Bolt-pump cover (short). :
46.
Stud-s-cever. 96. 011 pump cover with valve seat. 146. Bolt-pump cover (long). i
47. Stud-manifold. 97. Bolt-eover (long). 147. Sump assembly-filter. '!
48. Rear r::over-eyllnder head. 98. Bolt-eover (medium). 148. Filter element.
"'9. Joint-rear cover-plate. 99. Bolt-cover (short).
SO. Screw-rear cover-plate. 100. Lock washer.
