.- - - - - . .- TH E OOOLING SYSTEM D
Commencing at Engine XPAG/TD/6482, a new
water pump with an improved type of water seal has
been fitted.
Except for the gland, the new pump is structurally
similar. and the method of dismantling and reassembly
is the same.
The seating for the new seal is against the boss of
the impeller vane instead of the pump body.
The introduction of the new water seal has entailed
the deletion of the following parts :-
Part No. Description
MG862{42 Water pump assembly
MG862{269 Water pump body .. .
MG862 J270
Spindle for water pump
MG862j271 Impeller vane
MGB62 j77 Water seal kit
which have been replaced by the following :-
SA2419j2 Water pump assembly
X2+433 Water pump body
X2+435 Spindle for water pump ...
X2+4)4 Impeller vane
162600
Washer for water pump seal
162990 ...
Water pump seal ...
Quantity
I
I
I
I
I set
2 6
.....
. ' ~ \ ~ - '_ ·_ 1
\ ,, \ I
\ \., I
'\ ........ "' ...... /'
"~ ....'
......... ...
",, '" ~
I, ,
""
1 "
"
(})
I
\.
lilillj--------i 14
16

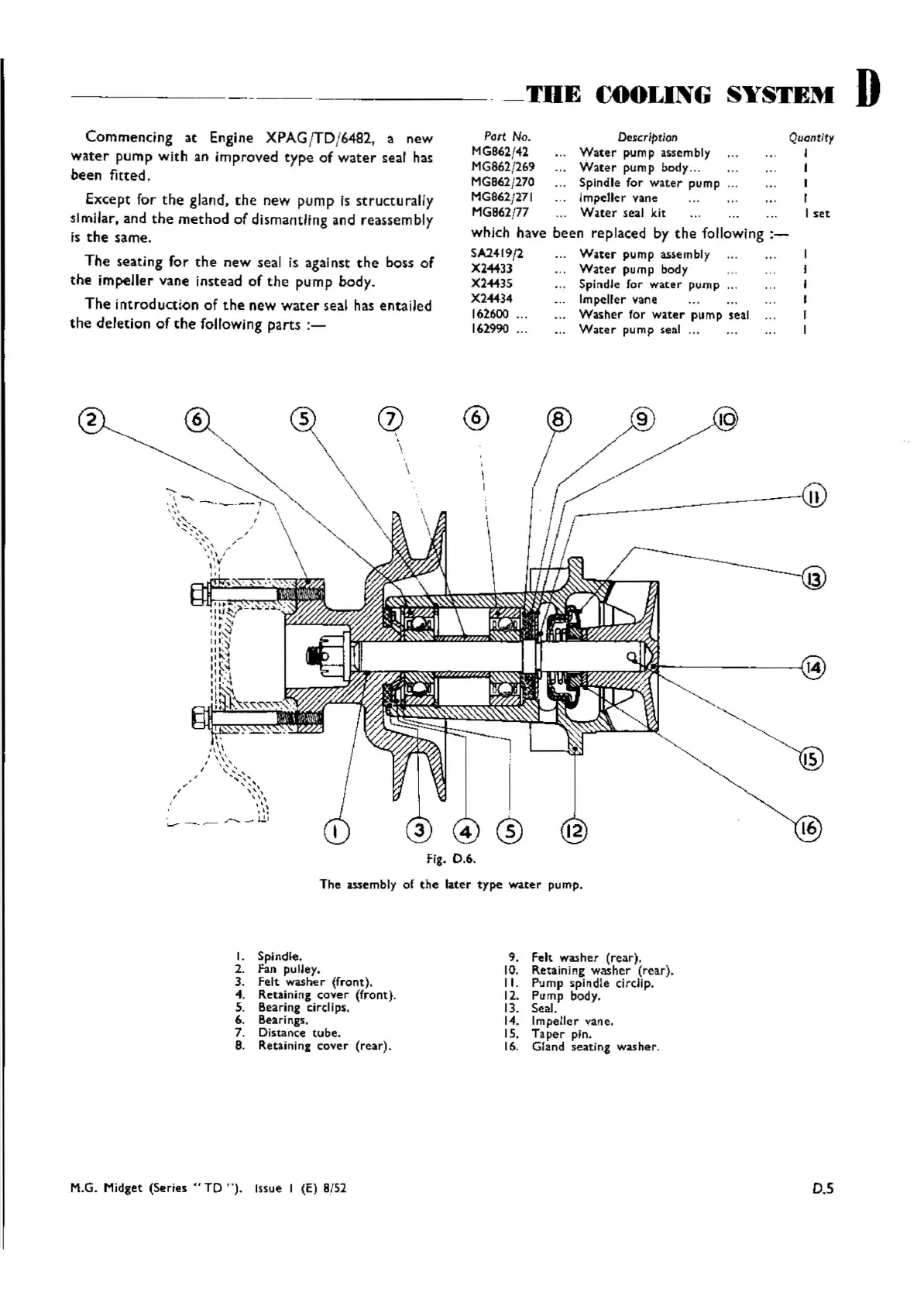

Fig. 0 .6.
The assembly of the later type W3.ter pump.
I. Spindle.
2. Fan pulley.
3. Felt washer (front).
4. Retaining cover (front) .
5. Bearing circllps,
6.
Bearings.
7. Distance tube.
8. Retaining cover (rear) .
M.G.
Midget (Series •• TO "J. Issue I (E) 8/52
9. Felt washer (rear).
10. R.etaining washer (rear).
II. Pump spindle circlip.
12. Pump body.
13.
Seal.
14. Impeller vane.
15. Taper pin.
16. Gland
seating washer .
D.S
