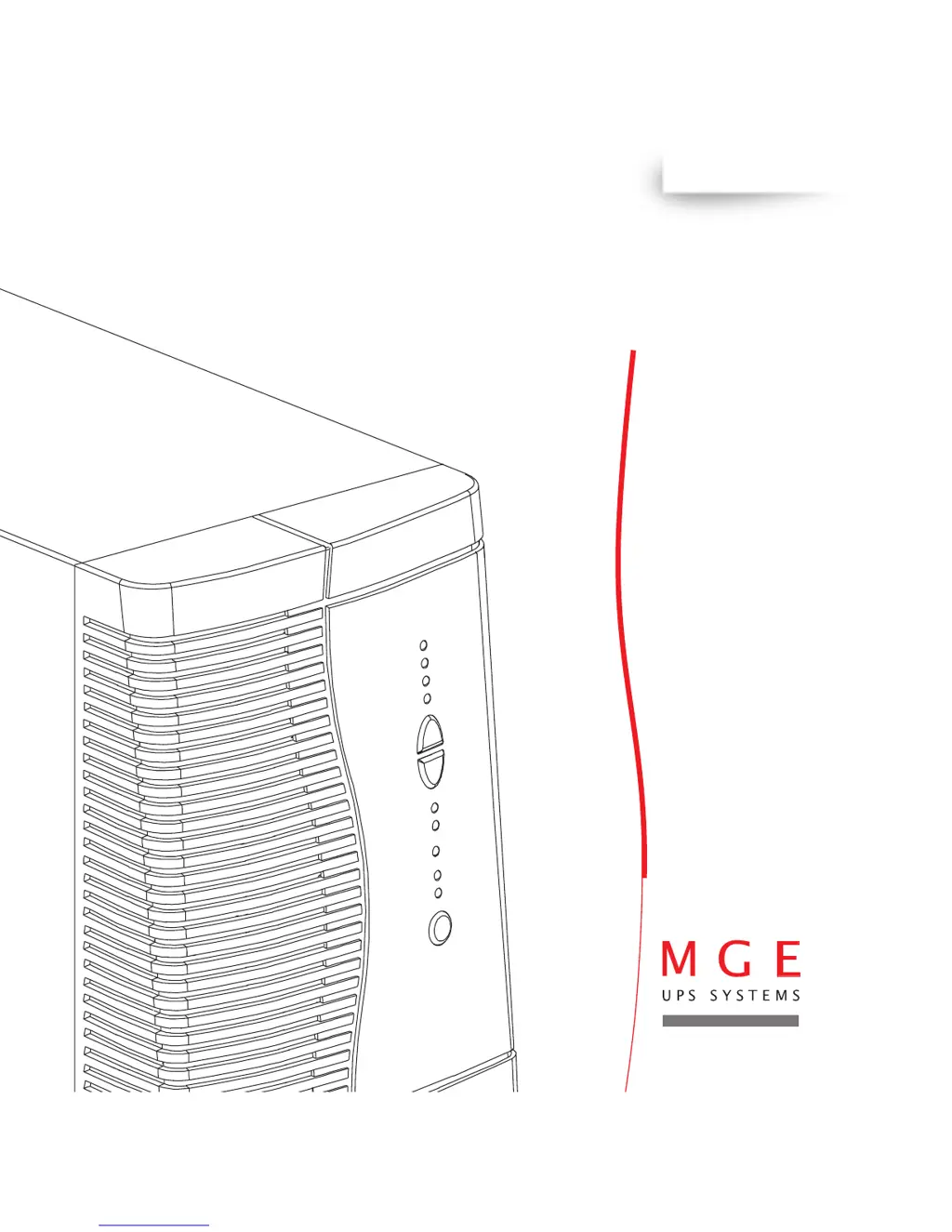

51031998EN/AA - Page 1
Installation and user
manual
Pulsar
EXtreme CLA
1500C
www.mgeups.com
MGE UPS SYSTEMS

Table of Contents

Questions and Answers

  • M
    Mr. James MejiaJul 30, 2025
    What to do if the yellow LED flashes and the buzzer sounds continuously on my MGE UPS Systems 1500C?
    • J
      jeremywelchJul 30, 2025
      This indicates that the phase and neutral position monitoring function has detected a reversal. If you have directly earthed neutral type networks, correct the cabling by unplugging and turning the network socket (DIN-SCHUKO type) by 180 degrees, or have an electrician modify your electrical network. For other network types, deactivate the detection function by pressing the pushbutton 9 behind the UPS for at least 5 seconds (UPS stopped and connected to the network for less than 30 minutes).
  • K
    Kevin MacdonaldAug 9, 2025
    How to fix LED 12 flashing and the buzzer beeping on my MGE UPS Systems 1500C UPS?
    • M
      megan28Aug 9, 2025
      This happens when the overload is too long or too high. You should check the power drawn by the connected equipment and disconnect any non-priority devices.
  • D
    Dalton JonesAug 18, 2025
    What to do if LED 14 flashes on my MGE UPS Systems 1500C?
    • J
      Jessica ShawAug 18, 2025
      A battery fault was detected during the automatic battery test. Make sure the battery connector is fully pushed in. If the problem persists, replace the battery module.

Summary

Safety

Safety Rules and Precautions

Covers personal safety, product safety, and special handling precautions for the UPS.

Presentation

Front Control Panel Explained

Installation

Unpacking and Checks

Rack Version Installation

Communications Port Connection

Battery Connection Procedures

Guidelines for interconnecting batteries and connecting them to the UPS.

UPS Connection and Settings

Steps for connecting the UPS to AC power and configuring battery settings.

Operation

UPS Start-up Sequence

Bargraph and Indicator Interpretation

Battery Power Operation Details

Explains behavior during AC power failure, low battery warnings, and end of backup.

Personalisation Options

Maintenance

Troubleshooting Common Issues

Identifies common UPS faults indicated by LEDs and buzzers and their solutions.

MGE UPS Systems 1500C Specifications

General IconGeneral
Output Power Capacity (Watts)900 W
Nominal Input Voltage120 V
Nominal Output Voltage120 V
Output Voltage120 V
Frequency50/60 Hz
Form FactorTower
Typical Recharge Time8 hours
Output WaveformStepped Approximation to a Sinewave
Power Rating1.5 kVA
Output Power900W
Battery TypeSealed Lead-Acid
