INSTALLATION
Power Requirement
AC single phase 240V, 50/60 Hz fused with a suitable time delayed fuse or circuit
breaker is required.
Extension Cord
It is strongly recommended that an extension cord should not be used because of the
voltage drop they produce. This drop in voltage can affect the performance of the welder.
If you need to use an extension cord it must be at least 6mm2 and less than 8 min length.
Installation & Maintenance of the Torch & Replacement of the Spare
Parts
Please notice: Please make sure the power supply switch is off before
loading/unloading the cutting torch and replacing the spare parts. The installation of the
torch's spare parts should follow the order according to the pictures listed below.
Replace the nozzle when it becomes ineffective and effects cutting performance.
The electrode should be replaced when it is shortened to about 2mm
Ensure cables and pipes are not damage or excessively worn

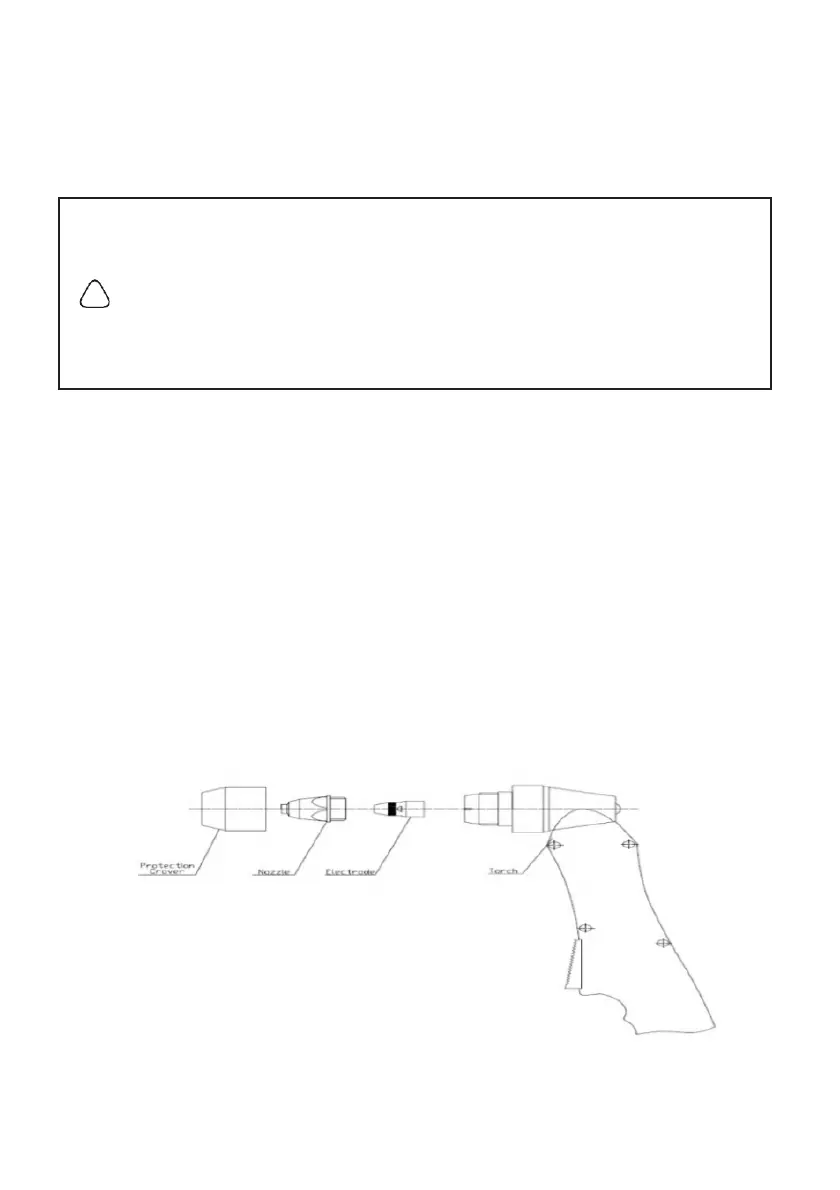

Cutting Torch Assemble Sketch
High voltage danger from power source! Consult a qualified
electrician for proper installation of receptacle. This welder must be
grounded while in use to protect the operator from electrical shock.
Do not remove grounding prong or alter the plug in any way. Do
not use any adapters between the welder’s power cord and the
power source receptacle. Make sure the POWER switch is OFF
when connecting your welder’s power cord to a properly grounded
240Vac, 50/60Hz, single phase power source.
