RP DUST COLLECTOR
AFTERMARKET MAGNEHELIC KIT INSTALLATION PROCEDURE
This Kit Includes:
1 ea. 38294-01 Magnehelic Mounting Bracket
1 ea. P3755 0-10” w.c. Magnehelic Gauge
2 ea. P2098 1/8” Male x 1/4” Barb Fitting
4 ea. P3543 1/4”-14 x 1 Self-taping Screw
10 ft. P1848 1/4” Clear Tubing
INSTALLATION:
1. Remove parts from package and inspect for any possible damage incurred during shipping.
2. Turn off dust collector and disconnect power to the unit.
3. Mount the Magnehelic Gauge into the Magnehelic Mounting Bracket and place the (2) male barb fi ttings
in the pressure ports located on the side of the Magnehelic Gauge.
4. Also use the two pressure port plugs supplied with the Magnehelic Gauge on the two ports located on the
back side of the gauge.
5. Mount the bracket using the (4) 1/4” self-taping screws.
6. Using 1/4” clear tubing (Additional length can be purchased) connect the “LOW” pressure port on the
gauge to the clean air plenum and “HIGH” pressure port to the dirty air plenum.
7. Reconnect the power to the unit and start the dust collector.

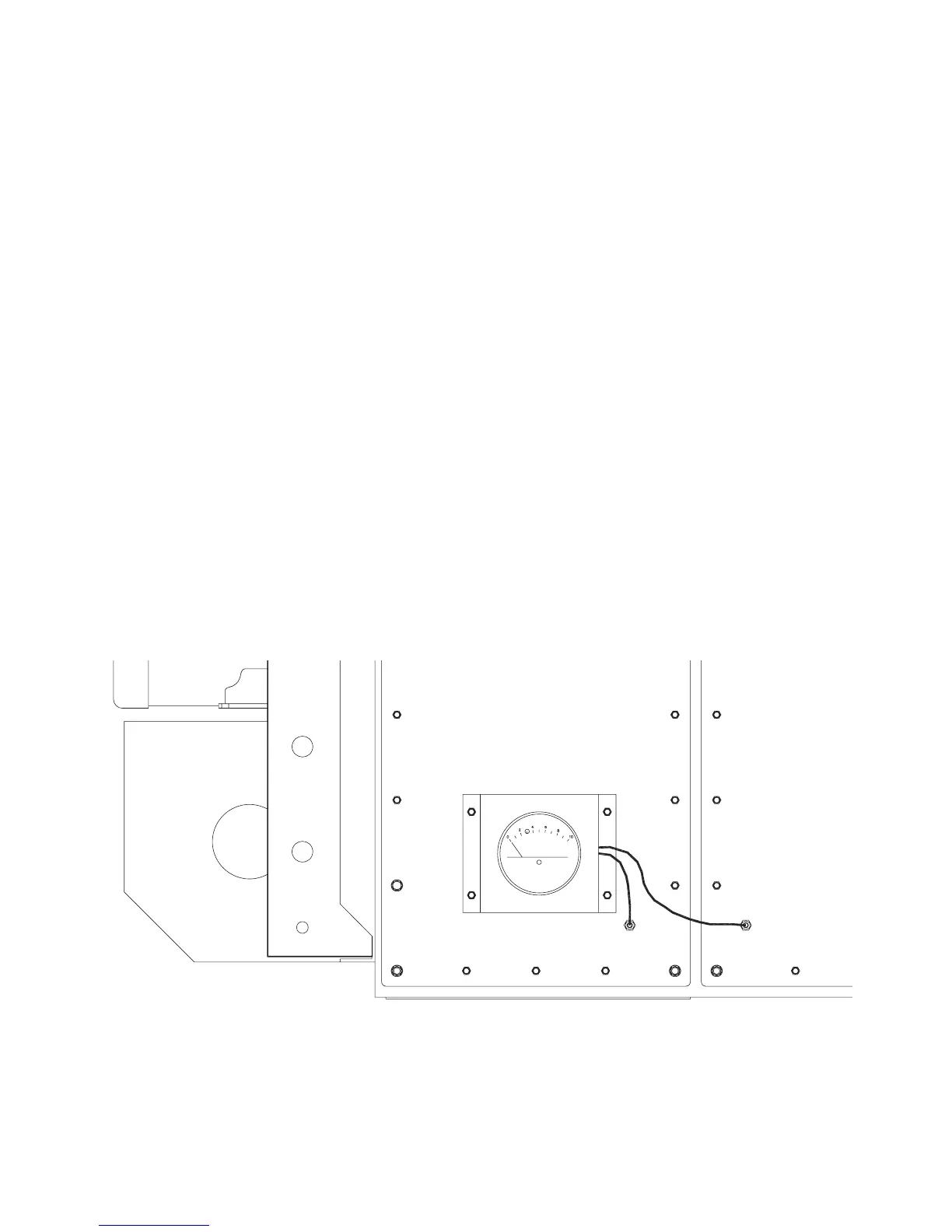

FIGURE 10
LOW HIGH
