MICRO-AIR RP4 - Barrel Lid Kit Installation Procedure

To Next Page

To Previous Page

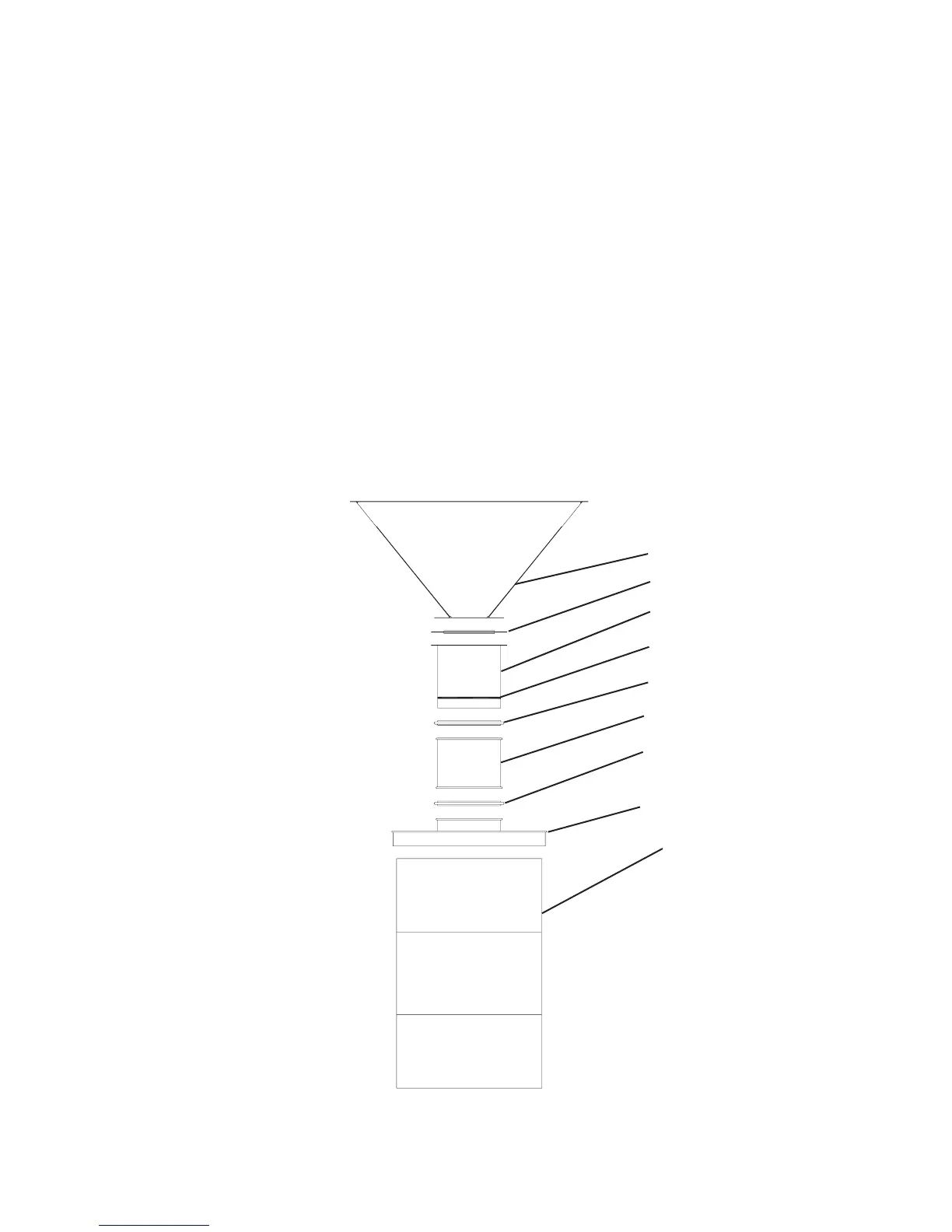

FIGURE 13

This Kit Includes:

1 ea. 38229-01 Barrel Lid

2 ea. P3519 10” Hose Clamp

1 ea. P3553 10” Flex Hose

INSTALLATION:

1. Remove parts from box and inspect for any possible damage incurred during shipping.

2. Using the 10” hose clamp attach the 10” ﬂ ex hose to the collar on the barrel lid.

3. With the remaining 10” hose clamp attach the barrel lid ﬂ ex hose to the collar on the bottom of the dust

collector hopper.

4. With barrel lid installed a 55 gallon barrel (not provided) can be placed under the barrel lid for material

collection.

RP DUST COLLECTOR

BARREL LID KIT INSTALLATION PROCEDURE

DUST COLLECTOR HOPPER

ADAPTER PLATE

GASKET

PIPE SECTION

BARREL

(BY OTHERS)

CLAMP

HOPPER ADAPTER

CLAMP

BARREL LID
