MICRO-MARK MicroLux 84630 - Machine Structure and Electricals; External Machine Features; Power Connection and Operation

8

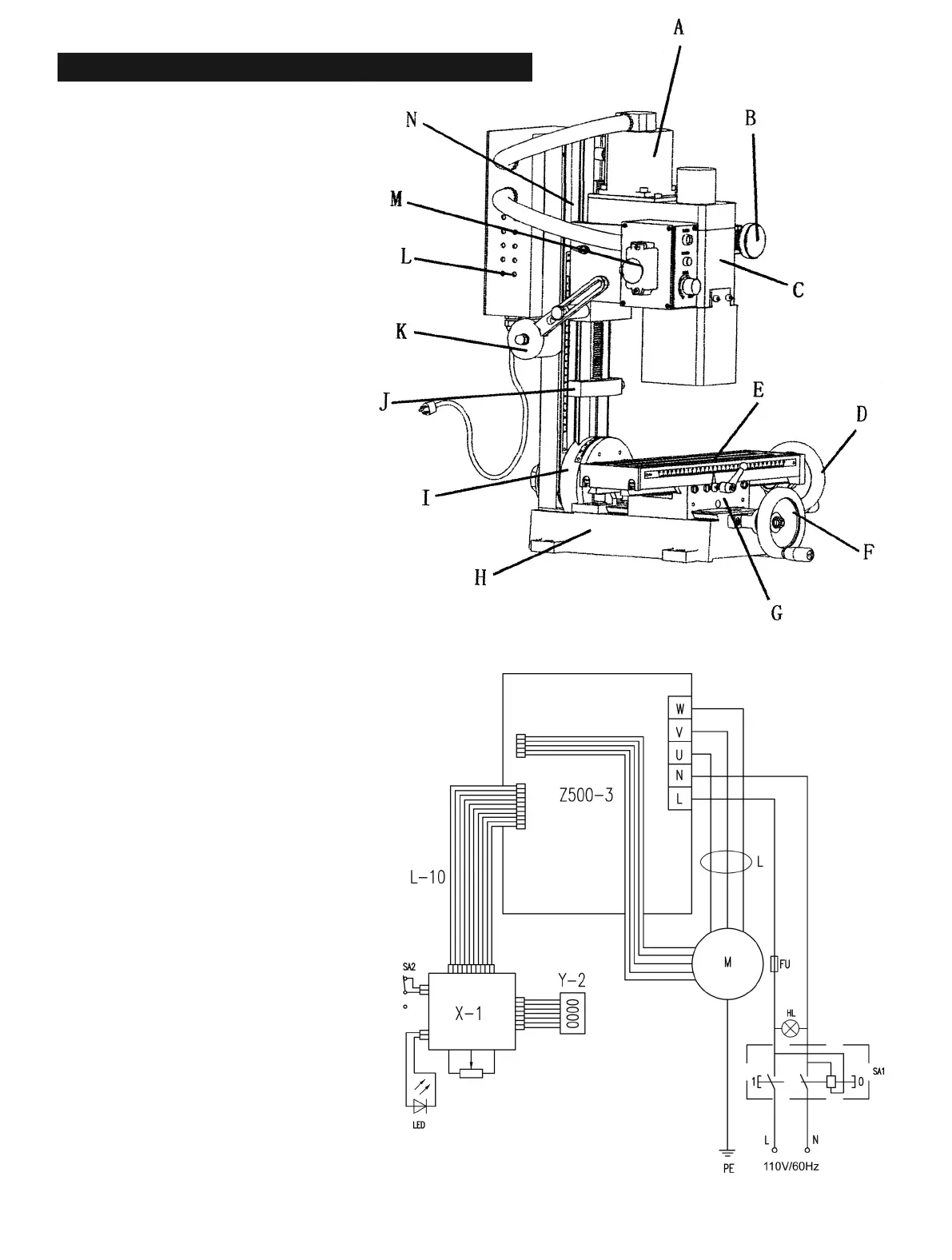

4.1 External Features
A. Motor
B. Fine feeding wheel
C. Headstock and spindle
D. Longitudinal feed hand wheel
E. Work table
F. Saddle
G. Cross feed hand wheel
H. Base
I. Connecting strut
J. Limit block
K. Controller
L. Balance machanism
M. Headstock
N. Electrical box
4.2 Power Connection/Disconnection
& Operation
See steps 2.3 and 2.4, located on page 6.
CHAPTER 4 • MACHINE STRUCTURE
