MicroAire LipoTower - DESCRIPTION; IV;Tumescent Pole Assembly; Control and Display Interface; Vacuum and Pump Controls

IM-LIPOTOWER Rev G6

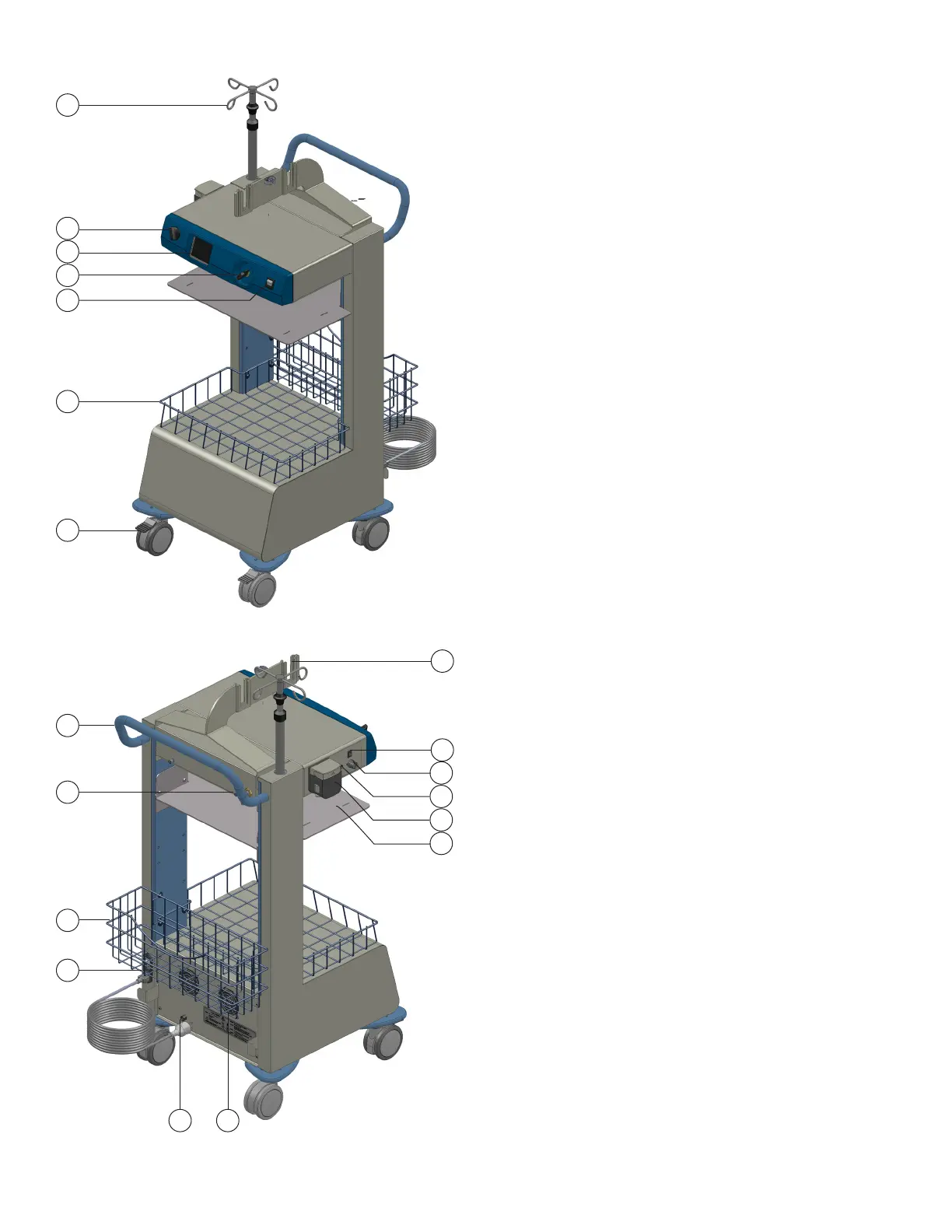

DESCRIPTION 1. IV/TUMESCENT POLE
2. CONTROL SWITCH
• Determines the source of ON/OFF functions
of the vacuum pump.
• BYPASS - Vacuum pumps stay on.
• PAL CONTROL - Vacuum pumps are on
when PALhandpiece is on. This requires a
BNC cable (REF ASP-CBL-1020, or REF ASP-
CBL-5020) to be connected. (See Figure 4).
• FOOT SWITCH CONTROL - Vacuum pumps
are on when footswitch is activated.
3. LCD SCREEN
• Displays vacuum pressure and Tool settings.
4. VACUUM PRESSURE ADJUSTMENT
• MAX - For maximum vacuum turn clockwise.
• MIN - For minimum vacuum turn
counter-clockwise.
5. STANDBY SWITCH
• ON (
|
) allows pumps to be activated by the
Control Switch.
• STANDBY ( o ) turns vacuum pumps o.
6. STORAGE BASKET
7. LOCKING CASTERS
8. PUSH HANDLE
9. MAIN VACUUM CONNECTION
10. REAR STORAGE BASKET
11. POWER INLET AND MAINS DISCONNECT SWITCH
12. FOOT SWITCH CONNECTION
13. COOLING FANS
• Do not block cooling fans or system may
overheat.
14. CANISTER RACK
• Designed to securely hold wall-mount style
aspiration canisters or wall-mount style
canister rings.
15. TUMESCENT PUMP ON/OFF SWITCH
16. TUMESCENT PUMP SPEED ADJUSTMENT KNOB
17. TUMESCENT PUMP FOOT SWITCH CONNECTION
18. TUMESCENT PUMP MODULE
• Standard on model ASP-1021 only.
To add module, use REF ASP-TUM.
19. SHELF
• Supports MicroAire electric consoles
(REF 1020/1025, REF 5020/5025)
1
2
3
4
5
6
7
8
9
11
12 13
14
15
16
18
17
10
19
