CONNECTING A SALINE/FLUID BAG TO THE
TUMESCENT POLE
1. Hang a sterile saline/uid bag onto the
Tumescnt Pole by carefully inserting the
bag’s hanging-grommet onto one of the
four hooks on the Tumescent Pole (Figure
17 and 18). Up to four bags can be hung
at one time, with one on each hook.
WARNING: Ensure that saline bags are properly secured to the hook.
WARNING: Tumescent pole maximum safe weight capacity is 3kg (6.6lb) per hook. Do not exceed.
CONNECTING INFILTRATION TUBING
1. Attach sterile, single-spike inltration
tubing (REF ASP-TB-TUM) to the saline/
uid bag according to the instructions
for the saline/uid bag.
2. Lift the lid on the Tumescent Pump
located on the side of the cart. (Figure 19)
3. Locate the soft silicone section of
inltration tubing and place it into the
open pump, ensuring that the outward
ow of uid is exiting the pump towards the front of the cart.
(Figure 20)
4. Close the lid on the Tumescent Pump to compress the Inltration Tubing within the pump.
OPERATION
WARNING: Prior to use, all MicroAire Power Assisted Lipoplasty System subsystem manuals should be reviewed for
important warnings and instructions for use.
WARNING: Prior to use, all system components should be inspected to detect any damage, excessive wear, corrosion
or malfunction. DO NOT use if any potential problems become apparent. Contact
MicroAire for resolution.
WARNING: Eye protection must be worn when operating any power equipment.
Dislodged burs, blades or bone fragments can result in eye injury, blindness, or
contamination of the eye from patient tissue or body uids.
POWERING UP THE SYSTEM
1. Before plugging the wall outlet power cord into a hospital-grade wall
outlet, ensure that the STANDBY switch on the front of the cart is in the
“STANDBY” ( o ) position. (Figure 21)
2. Insert the electrical cord into the POWER INLET, located on the lower left
of the rear of the cart (Figure 22). Plug the power cord into an appropriate
hospital-grade wall outlet.
3. To power up the MicroAire LipoTower System, push the Mains Power
Disconnect Switch to the “ON” (
|
) position (Figure 22). A visible light on
the STANDBY switch will now be illuminated.
4. Push the STANDBY switch to the “ON” (
|
) position. An audible sound
from the cooling fans will indicate that the MicroAire LipoTower System is
powered up.

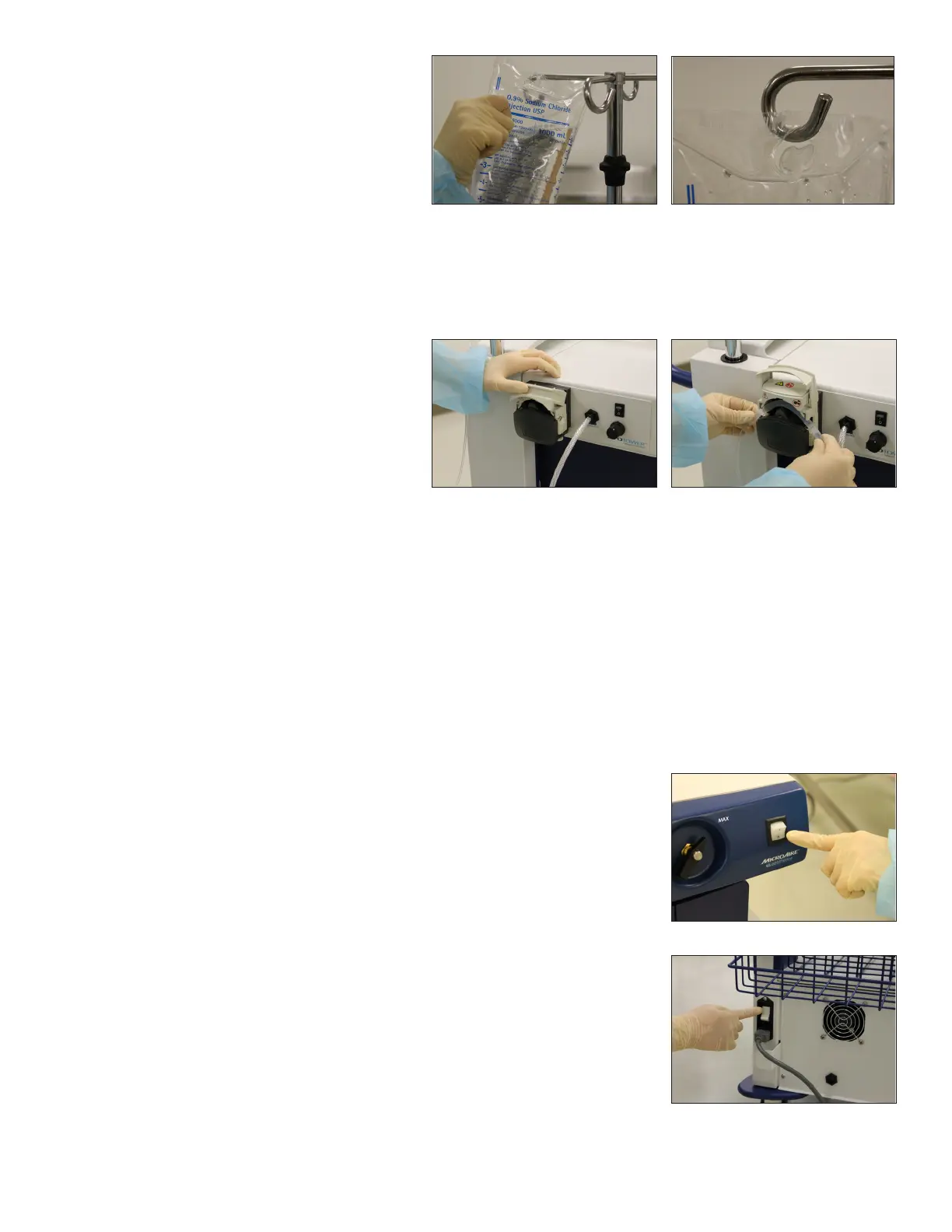

Figure 18 - Make surethe bag is se-
curely attached to the hook.
Figure 21 - Standby switch
Figure 22 - Power inlet and Mains
Disconnect switch
Figure 20 - Insert Inltration TubingFigure 19 - Open the Tumescent Pump
Figure 17 - Attach saline/uid bag to
the Tumescent Pole
