Configuration
2016 Microchip Technology Inc. DS50002449A-page 15

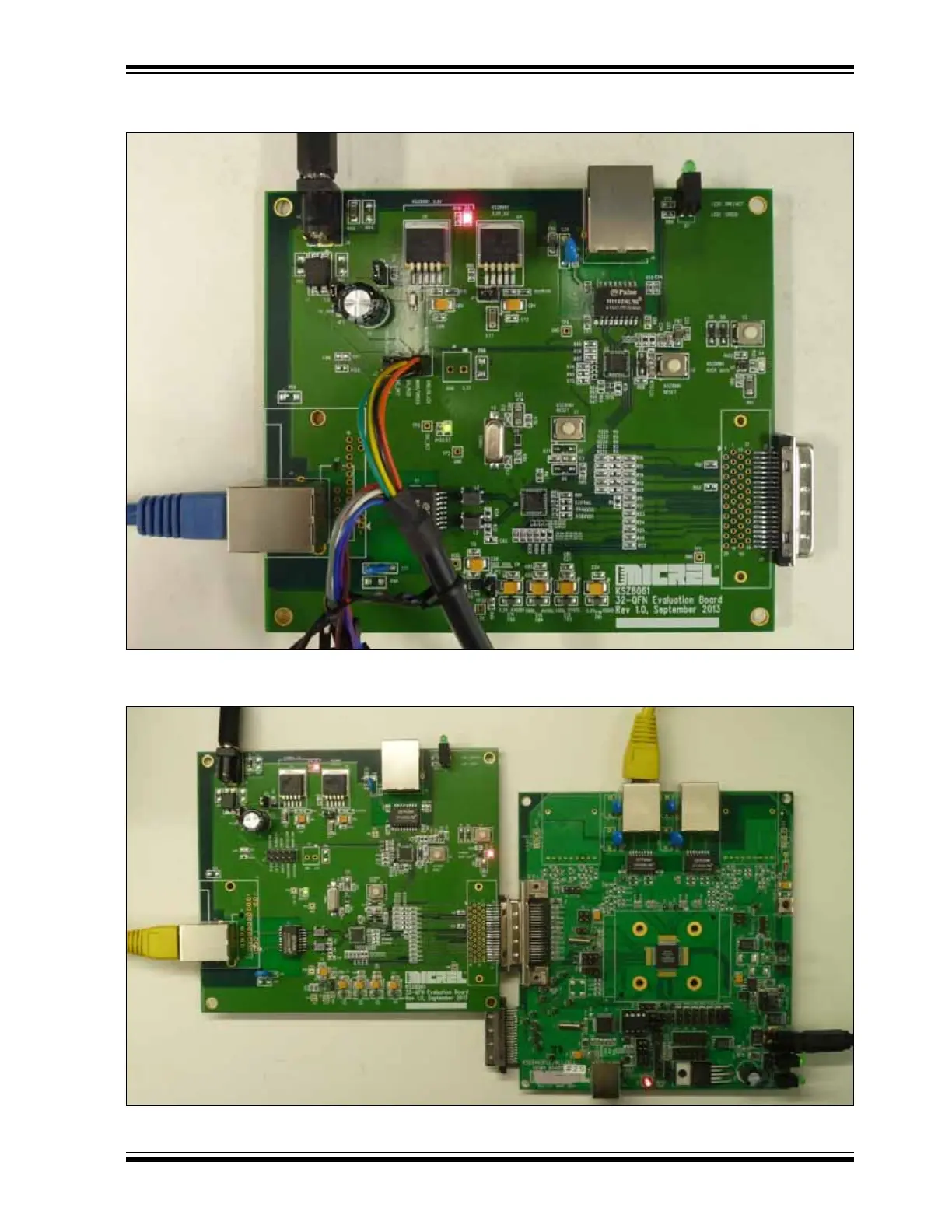

FIGURE 2-2: KSZ8061MNX EVALUATION BOARD IN MII LOOPBACK MODE WITH
USB-TO-MDIO/MDC CABLE ON J7
FIGURE 2-3: KSZ8061MNX EVALUATION BOARD IN MII CONNECTOR MODE, WITH
ETHERNET SWITCH
