Chapter 2: Overview
2-LV-1-5 8/3/11 LV1 User Manual 2-3

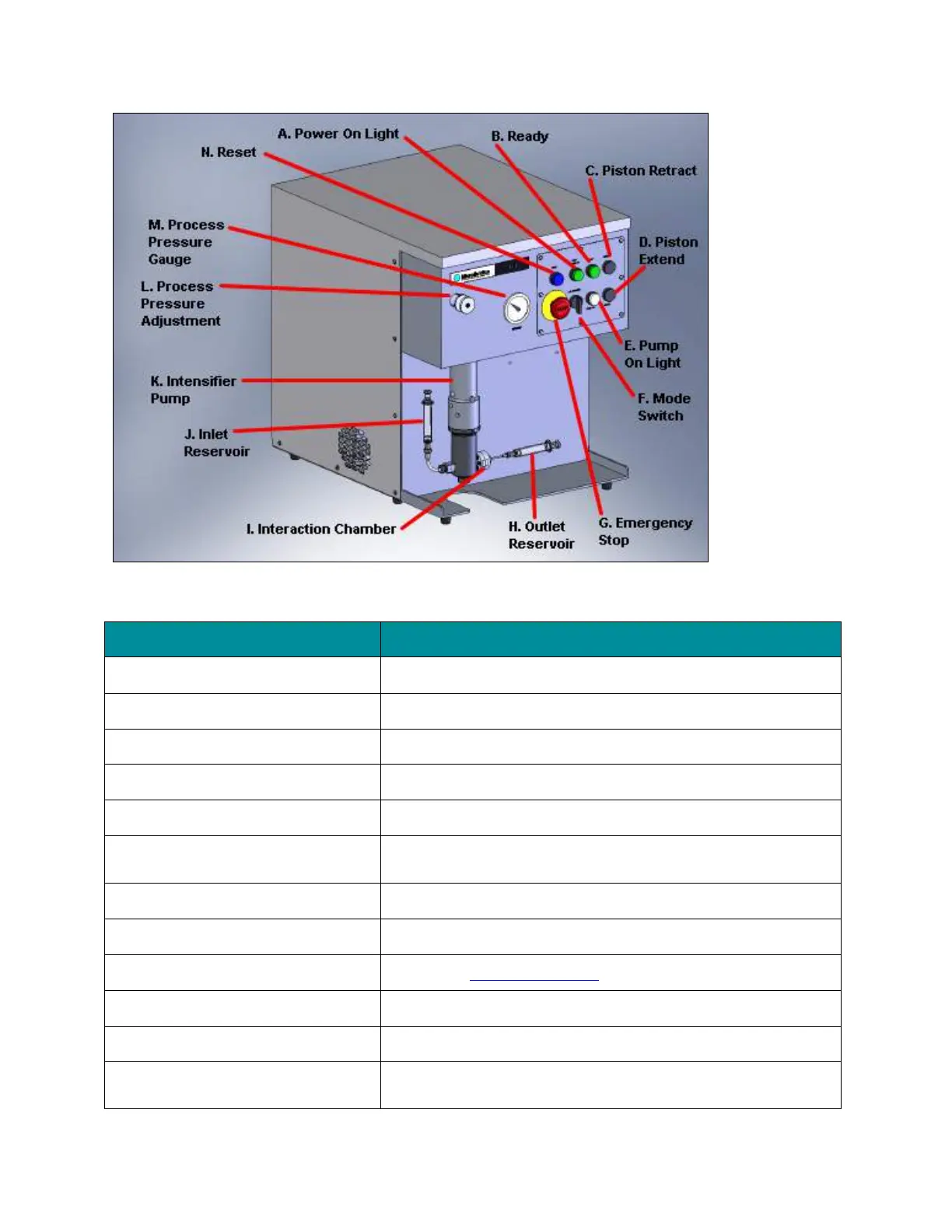

Figure 2.1. Front Panel Controls/Components
Control/Component Name
Description
A. Power-On Light
Green. Comes on when power is delivered to the unit.
B. Ready Light
Green. Indicates it is OK to extend piston at high pressure.
C. Piston Retract
Retracts piston in Jog mode only.
D. Piston Extend
Extends piston in Jog (low pressure) and Run (high pressure) mode.
E. Pump On Light
A white light that Indicates that the hydraulic pump is operating.
F. Mode Switch
Controls jogging of process piston and high-pressure piston extension
in the Run position.
G. Emergency Stop
Shuts off power to the intensifier and motor.
H. Outlet Reservoir
Includes 10 ml syringe.
I. Interaction Chamber
Refer to the Interaction Chamber section.
J. Inlet Reservoir
Includes 10 ml syringe.
K. Intensifier Pump
Houses high pressure inducing elements
L. Process Pressure Adjustment
Rotating the knob counterclockwise decreases process pressure.
Rotating the knob clockwise increases process pressure.
